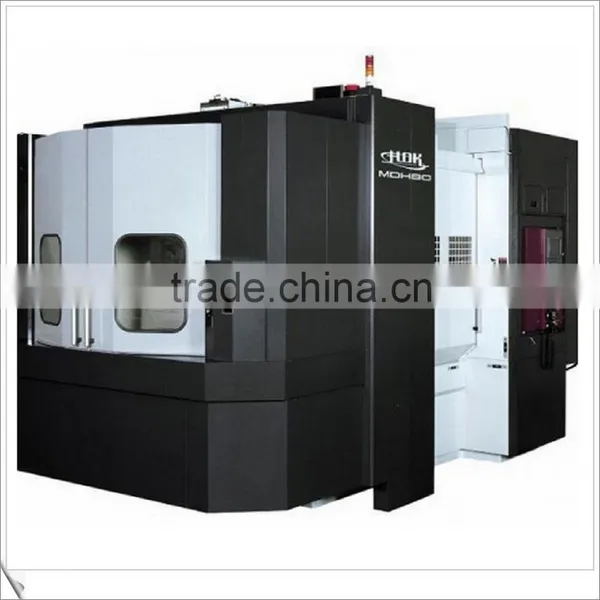

MDH80 cnc horizontal machining center Specifications
- MDH Series is the ideal machining center for producing box-type and irregular work pieces for automobile, shipbuilding, engine and general manufacturing industries.
- The machine is a high-performance, high-reliability and high-precision product characterized by compact configuration and rapid response rates.
- The spindle design makes it particularly suitable for heavy power cutting while the excellent ball screw and spindle cooling system provide superb capability for flexible manufacturing.
- High-speed High-power Spindle;
- Compact Configuration and Unrivaled rigidity;
- High-speed ATC;
- High-speed APC
Full Guard two exchange worktable and shield for two exchange worktable. X/Y/Z guide way shield ,Worktable 1°indexing. worktable light, working signal light, spindle coolant system, 35~8000rpm,two gears spindle hydraulic unit.
Screw chip convey device. iron gasket, manual impulsator electric heat exchanger
FANUC 18i control system10.4” color LCD screen, automatic turn-off function, 160m memory capacity, protection for electric leakage,
Spindle temperature compensation, spindle and ball screw coolant device (hollow screw coolant system), Standard Tool capacity :40 tools.

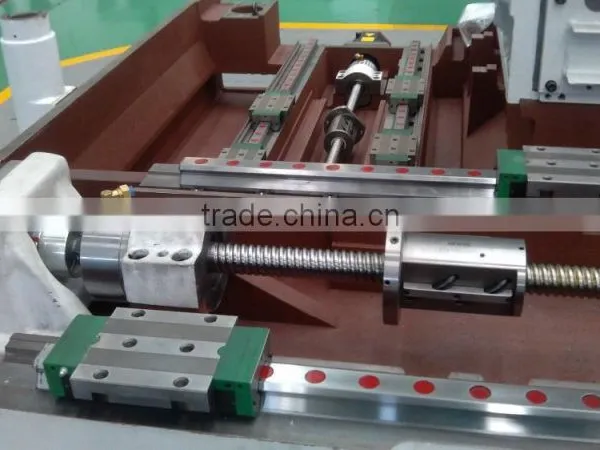

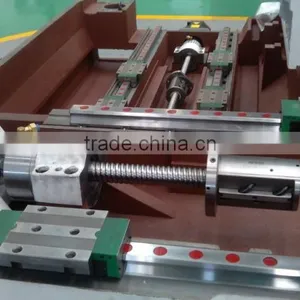

HIWIN ball screw, Japanese OKK spindle, IKO linear guide way.
Specifications |
Unit |
Parameter |
Table size |
mm |
800×800 |
Table top to spindle center distance |
mm |
80~1180 |
Table center to spindle front-end distance |
mm |
200~1250 |
Maximum table load |
kg |
2000 |
Table indexing |
|
1°×360° |
|
Tool storage capacity
|
|
40(OP: 60/80/120/160) |
|
Time of tool change
|
s |
2.5(T-T), 6.0(C-C) |
|
Maximum tool weight
|
kg |
25 |
|
Maximum tool diameter
|
mm |
Φ115(Adjacent empty:Φ270) |
|
Maximum tool length
|
mm |
500 |
Table indexing time |
S |
4.5 (90°) |
Coordinate travel (X/Y/Z) |
mm |
1400/1100/1050 |
Fast moving speed |
m/min |
36(OP:45) |
Spindle speed |
rpm |
8000 |
Spindle speed gears |
|
2(MS) |
Spindle internal taper |
|
7/24 No.50 |
Spindle diameter |
mm |
Φ100 |
knife handle form |
|
BT-50 |
Rivets form |
|
45° |
change table amount |
|
2 |
Table change the time |
s |
12.5 |
|
Positioning accuracy
|
mm |
X±0.003 Y/Z±0.0025 |
Repeat positioning accuracy |
mm |
X±0.0025 Y/Z±0.0020 |
Machine weight |
kg |
24500 |
Machine covers an area of size |
mm |
3682×6375 |
