VDL500 Smallest Cnc Vertical Machining Center for Sale

Name: VDL500 Smallest Cnc Vertical Machining Center for Sale
Brand: DALIAN
SKU: 102714929
Availability: InStock

US$ 24,780 - 33,060 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

Place of Origin:

Liaoning, China

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Tianjing/Shanghai/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number VDL500 cnc vertical machining center

Voltage 220V/380V/415V/440V/480V

Power(W) 3.7kW

Dimension(L*W*H) 2450x1590x2200mm

Weight 2000kgs

Certification CE; ISO9001:2008; GB/T19001:2008

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

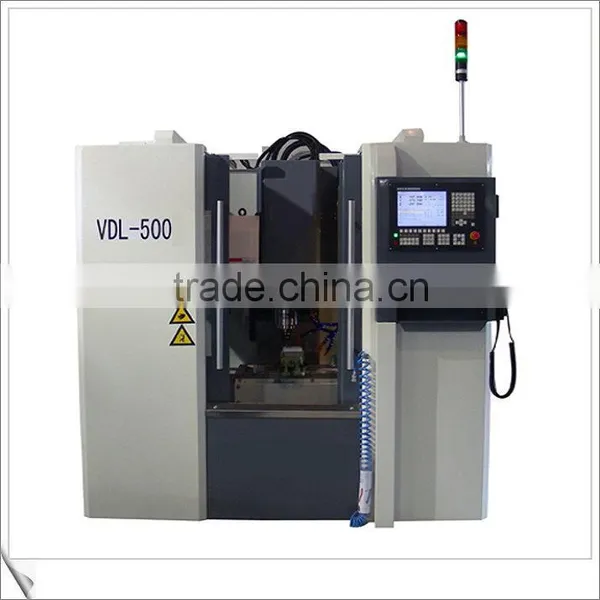

VDL500 vertical machining center

Standard Configuration

Spindle speed 8000rpm (Dalian/HNC-31M SYSTEM: 6000rpm), BT40, X / Y / Z-axis LinearGuide Way, Tool magazine capacity/type: 12/drum;

National Inspection-free Products;

Main Technical Data

Specifications	Unit	Parameter
Table (L × W)	mm	700×320
T-slot (Numbers × Width × Distance) (b/t slots)	mm	3×14×110
Table load Max	kg	150
Distance from spindle center line to column guide way surface	mm	430
Distance from spindle nose end face to table upper surface	mm	140~520
X/Y/Z travel	mm	450/350/380
X/Y/Z guide way type		Linear way
X/Y/Z rapid traverse speed	m/min	30/30/30
Feed rate	mm/min	1~10000
X/Y/Z servo motor power	kW	1.4/1.4/1.6 (1.2/1.2/1.8) (2.85/2.85/2.85)
X/Y/Z servo motor torque	N.m	7/7/7
Positioning accuracy	mm	0.016
Repeat positioning accuracy	mm	0.006
Spindle motor power	kW	3.7/5.5
Spindle speed range	r/min	60~10000
Spindle taper		#40(7/24)
Tool magazine capacity / Type		12/drum
Tool adaptor type		BT40
Max. Tool weight	kg	6
Max. Tool diameter/length	mm	80/200
Time of tool change (T-T)	sec	6~8
Air pressure requirement	MPa	0.6
Power requirement	kW	15
Overall dimension (L × W × H)	mm	2450×1590×2200
Net weight	kg	2000
