Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > Mid-sized CE Linear Way Vertical Machining Center Hot-sale VDL1000

Mid-sized CE Linear Way Vertical Machining Center Hot-sale VDL1000

Name: Mid-sized CE Linear Way Vertical Machining Center Hot-sale VDL1000
Brand: DALIAN
SKU: 102714903
Availability: InStock

Mid-sized CE Linear Way Vertical Machining Center Hot-sale VDL1000 thumbnail-1

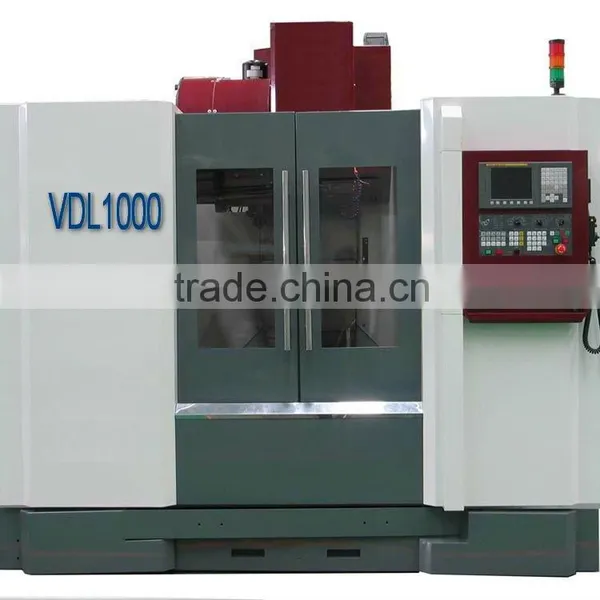

Mid-sized CE Linear Way Vertical Machining Center Hot-sale VDL1000 photo-1

US$ 34,780 - 108,060 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

Place of Origin:

Liaoning, China

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number VDL800 VDL1000

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Certification CE; ISO9001:2008

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Mid-sized Vertical Machining Center

to: export(at)longlife-machinery(dot)com

The VDL 800 is a collection of the latest development results of the world's CNC Machine tool industry and advanced manufacturing technology, and represents the development trend of the modern machine tool technology. The VDL 800 is equipped with high-accuracy Roller Guide(X, Y, and Z). The machine features with the rigid structure, which is done through iterative simulation and computation of engineering mechanics, aiming to achieve the compact structural design and the engineering requirements of high rigidity and high quality. The machine not only performances the machining of flat-type, plate-type, spherical and high-accuracy workpieces and also is capable of molding. The machine is equipped with automatic tool changing system (ATC), automatic lubricating system, automatic cooling system, full-enclosed guard, automatic chip conveyor, manual oil gun and Manual Pulse Generator (MPG). Milling, boring, drilling, reaming and tapping can be performed in one set-up. The machine has characteristics of high-Automation, reliability, convenience, easy operation, suitability and handsome appearance together with heavy duty. The machine is widely used in various industries of military, aviation, car manufacturing and molding.

Specifications	Unit	VDL800	VDL1000
Table(L×W)	mm	900×420	1120×560
T-slot(Numbers×Width×Distance)(b/t slots)	mm	3×18×125	5×18×100
Table load Max	kg	500	750
The distance from spindle center line to column guide way surface	mm	511	629
The distance from spindle nose end face to table upper surface	mm	150~670	135~735
X/Y/Z travel	mm	800/420/520	1020/560/600
X/Y/Z guide way type		Linear way	X/Y: Linear way Z: box way
X/Y/Z rapid traverse speed	m/min	24/24/20	24/24/18
Feed rate	mm/min	1~10000	1~10000
X/Y/Z servo motor power	kW	3/3/3 (1.2/1.2/1.8) (1.8/1.8/2.5)	3/3/3
X/Y/Z servo motor torque	Nm	12/12/12	12/12/12
Positioning accuracy	mm	X/Z: 0.020 Y:0.016	X:0.025 Y/Z:0.020
Repeat positioning accuracy	mm	X/Z: 0.008 Y:0.006	X:0.010 Y/Z:0.008
Spindle motor power	kW	7.5/11	7.5/11
Spindle speed range	r/min	60~8000	60~8000
Spindle taper		#40(7/24)	#40(7/24)
Tool magazine capacity/Type		16/drum 24/swing arm	20/drum 24/swing arm
Tool adaptor type		BT40	BT40
Max. Tool weight	kg	7	7
Max. Tool diameter/length	mm	100/280 drum 77/280 swing arm	100/305 drum 77/305 swing arm
Time of tool change(T-T)	sec	6~8/3	6~8/3
Air pressure requirement	mPa	0.6	0.6
Power requirement	kW	25	25
Overall dimension(L×W×H)	cm	231×204×234	253×282×250
Net weight (kg)	kg	5200	7000
