Product Details
Condition: | New | Type: | Vertical | Place of Origin: | Liaoning, China |
Brand Name: | DALIAN | Model Number: | VDL600A | Voltage: | 220V/380V/415V/440V/480V |
Power(W): | 7.5/11kW | Dimension(L*W*H): | 2310x2040x2337 | Weight: | 4800kgs |
Certification: | CE; ISO9001:2008; GB/T19001:2008 | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

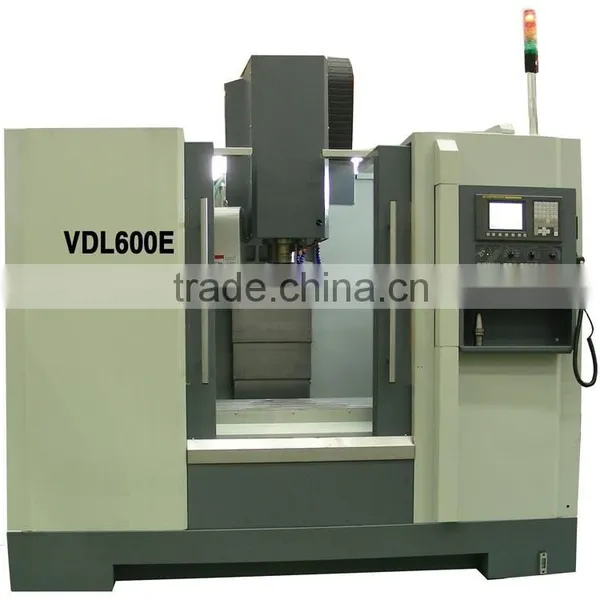

VDL600 Vertical Machining Center
Standard Configuration
- Spindle speed 8000rpm,
- BT40, X / Y / Z-axis LinearGuide Way,
- Tool Magazine Capacity / type: 16/drum;
- National Inspection-free Products;
Specifications | Unit | Parameter |
Table (L × W) | mm | 800×420 |
T-slot (Numbers × Width × Distance) (b/t slots) | mm | 3×18×125 |
Max Table load capacity | kg | 500 |
Distance from spindle center line to column guide way surface | mm | 511 |
Distance from spindle nose end face to table upper surface | mm | 150~670 |
X/Y/Z travel | mm | 600/420/520 |
X/Y/Z guide way type |
| Linear way |
X/Y/Z rapid traverse speed | m/min | 24/24/20 |
Feed rate | mm/min | 1~10000 |
X/Y/Z servo motor power | KW | 3/3/3 (1.2/1.2/1.8)(1.8/1.8/2.5) |
X/Y/Z servo motor torque | N.m | 11/11/11 |
Positioning accuracy | mm | X/Z: 0.020 Y: 0.016 |
Repeat positioning accuracy | mm | X/Z: 0.008 Y: 0.006 |
Spindle motor power | kW | 7.5/11 |
Spindle speed range | r/min | 60~8000 |
Spindle taper |
| #40(7/24) |
Tool magazine capacity / Type |
| 16/drum 24/swing arm Opt |
Tool adaptor type |
| BT40 |
Max. Tool weight | kg | 7 |
Max. Tool diameter/length | mm | 100/280 drum 77/280 swing arm |
Time of tool change (T-T) | sec | 6~8/3.5 |
Air pressure requirement | MPa | 0.6 |
Power requirement | kW | 25 |
Overall dimension (L × W × H) | mm | 2310×2040×2337 |
Net weight | kg | 4800 |
Standard accessories
No. | Item | Quantity |
| Automatic tool changer (ATC) | 1 set |
| Spiral chip remover | 1 set |
| Full closed protection guarding | 1 set |
| Rigid tapping | 1 set |
| Foundation bolts and pads | 1 set |
| Tool and tool kit | 1 set |
| RS-232 interface | 1 set |
| Working lamp | 1 set |
| Air gun | 1 set |
| Spindle guard | 1 set |
| Signal lamp | 1 set |
| CNC system | 1 set |
| Spindle servo motor | 1 set |
| X/Y/Z servo motor | 1 set for each axis |
| Spindle front bearing | 1 set |
| Spindle back bearing | 1 set |
| X/Y/Z screw bearing | 1 set for each |
| X/Y Ball screw | 1 set for each |
| X/Y line roll guiding | 1 set for each |
| Mandrill of spindle | 1 set |
| Automatic lubricate system | 1 set |
| Turbo-cylindercomponent | 1 set |
| Main electrical component | 1set |
| Main pneumatic component | 1 set |
| Main conveyor dentiform belt | 1set |
| Coupling gear | 6 sets |
