Catalogue of MDH Cnc Horizontal Machining Center for Sale

Name: Catalogue of MDH Cnc Horizontal Machining Center for Sale
Brand: DALIAN
SKU: 102714853
Availability: InStock

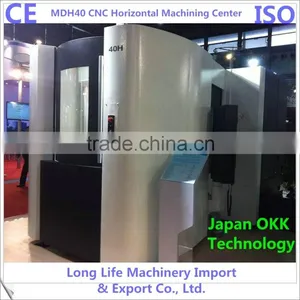

Catalogue of MDH Cnc Horizontal Machining Center for Sale thumbnail-1

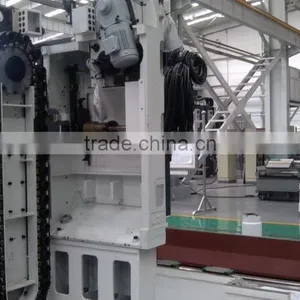

Catalogue of MDH Cnc Horizontal Machining Center for Sale thumbnail-2

Catalogue of MDH Cnc Horizontal Machining Center for Sale photo-1

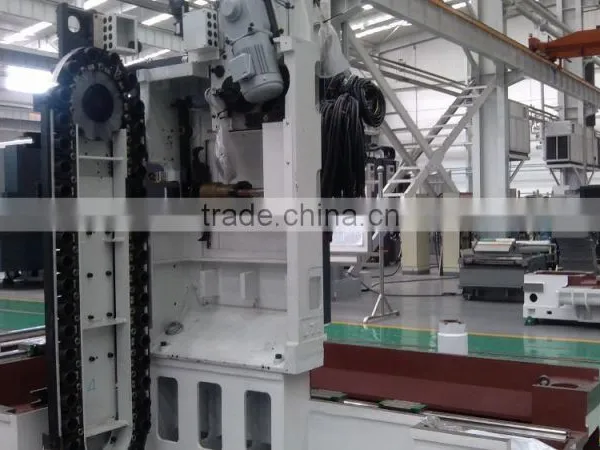

Catalogue of MDH Cnc Horizontal Machining Center for Sale photo-2

US$ 145,132 - 308,060 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

Place of Origin:

Liaoning, China

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Tianjing/Shanghai/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number FMH-500 FMH-630 FMH-800 cnc horizontal machining center

Voltage Customized

Power(W) 22/30kW

Dimension(L*W*H) depends

Weight depends

Certification CE Certificate/ISO9001

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

MDH cnc horizontal machining center

Machine Featurers:

MDH Series is the ideal machining center for producing box-type and irregular work pieces for automobile, shipbuilding, engine and general manufacturing industries.
The machine is a high-performance, high-reliability and high-precision product characterized by compact configuration and rapid response rates.

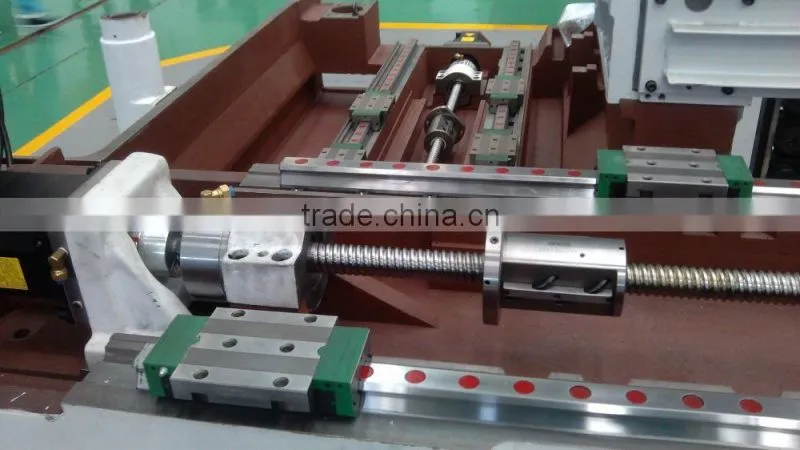

The spindle design makes it particularly suitable for heavy power cutting while the excellent ball screw and spindle cooling system provide superb capability for flexible manufacturing.
High-speed High-power Spindle;
Compact Configuration and Unrivaled rigidity;
High-speed ATC;
High-speed APC
With CE Certificate;
National Inspection-free products;

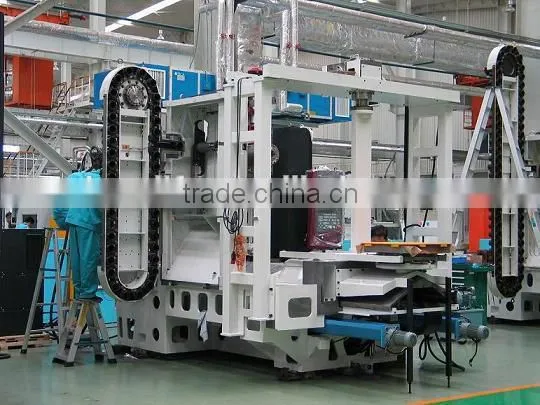

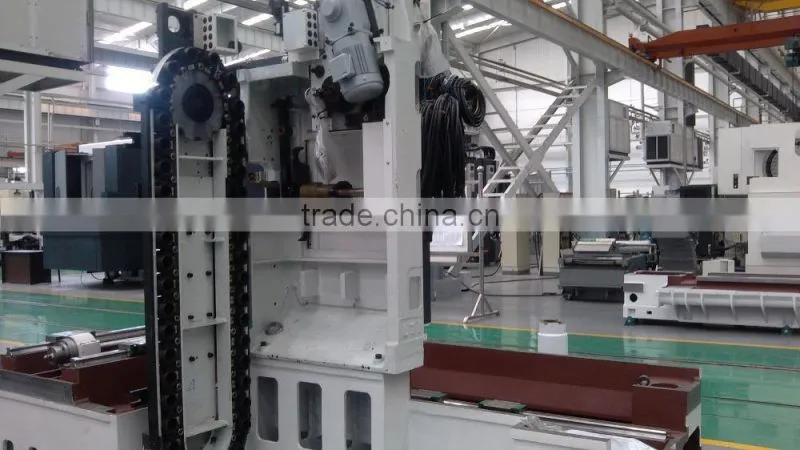

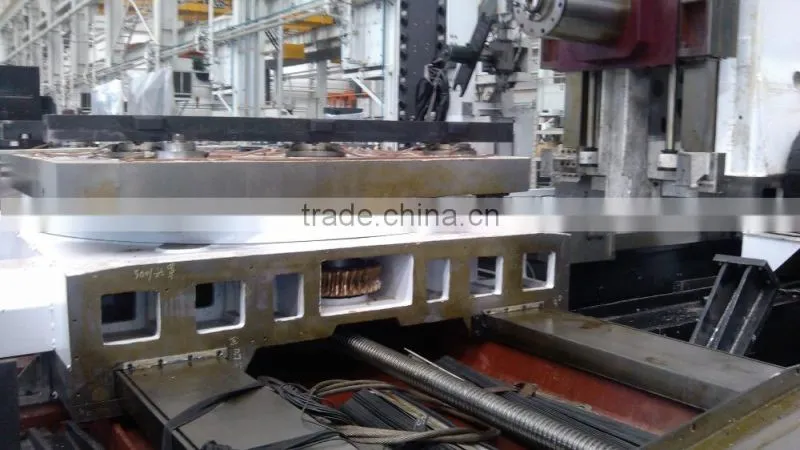

Detailed Photos

Item	unit	FMH-500 (No.40)	FMH-500 (No. 50)	FMH-630	FMH-800
Travel of X-axis	mm	762	730	1000	1250
Travel of Y-axis	mm	710	710	850	1050
Travel of Z-axis	mm	710	710	850	1000
Table top to spindle center distance	mm	50~760	50~760	50~900
Table top to spindle center distance	mm	150~860	200~910	200~1050
Distance from worktable to ground	mm	1200	1200	1300
Table size	mm	500x500	500x500	630×630
Table indexing		1°× 360°	1°× 360°	1°× 360°	1°× 360°
Max.load capacity of worktable	Kg	500/600	500/600	1200	1500
Spindle speed	rpm	8000 OPT:10000	6000 OPT:8000	6000 Optional: 8000	6000 Optional: 8000
Spindle internal taper		7/24 No.40	7/24 No.50	7/24 No.50	7/24 No.50
Spindle diameter	mm	Φ85	Φ100	Φ100	Φ100
Motor power of spindle	KW	7.5/11	7.5/15	11/18.5	18.5/22
Rapid feed of X/Y/Z	m/min	30	30	24	24
Cutting feed rates	mm/min	1~8000	1~8000	1~8000	1~8000
Tool storage capacity		40 Optional: 60/90/120	40 Optional: 60/90/120	40 Optional: 60/90/120	40 Optional: 60/90
Knife handle form		BT40	BT50	BT50	BT50
Maximum tool weight	kg	8	20	20	20
Maximum tool length	mm	300	400	400	400
Maximum tool diameter	mm	Φ85 (full) Φ140 (Adjacent empty)	Φ125 (full) Φ220 (Adjacent empty)	Φ125 (full) Φ220 (Adjacent empty)	Φ125 (full) Φ220 (Adjacent empty)
Time of tool change	s	2 (T-T)	8 (T-T)	12 (T-T)	12 (T-T)
Change type		Swing type	Swing type	Swing type	Swing type
Exchange Time of worktable	s	6	6	6	6
Positioning accuracy	mm	X±0.0025 Y/Z±0.0025	X±0.0025 Y/Z±0.0025	X±0.0025 Y/Z±0.0025	X±0.0025 Y/Z±0.0025
Repeat positioning accuracy	mm	X±0.0015 Y/Z±0.0015	X±0.0015 Y/Z±0.0015	X±0.0015 Y/Z±0.0015	X±0.0015 Y/Z±0.0015
Machine covers an area of size	mm	3130x3950	3723x3950	4160x5960
Height of Machine	mm	2970	3170
Machine weight	kg	13500	16000	19000	23000
Power capacity	KVA	40	40	50	50
Air source pressure	bar	6~8	6~8	6~8	6~8
