VDF850 Smaller Box Way Cnc Vertical Machining Center for Sale

Name: VDF850 Smaller Box Way Cnc Vertical Machining Center for Sale
Brand: DALIAN
SKU: 102714831
Availability: InStock

US$ 46,780 - 67,060 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

Place of Origin:

Liaoning, China

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Tianjing/Shanghai/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number VDF850 cnc vertical machining center

Voltage Customer's Requirement

Power(W) 7.5/11kW

Dimension(L*W*H) 3350x2280x2650mm

Weight 7000kgs

Certification ISO9001:2008; CE; GB/T19001:2008

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

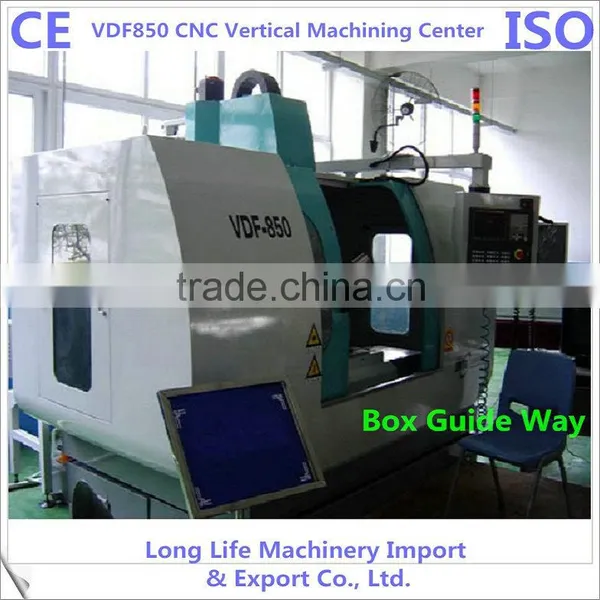

VDF850 box way vertical machining center

Machine Featurers:

1. With CE Certificate;

2. National Inspection-free products

3. Highly rigid and stable machine structure;

4. High precision Box Ways on all three-axis;

5. High precision spindle and High spindle speed: 8000~10000rpm;

6. Fast and reliable tool changing mechanism;

7. Cooling system;

8. Multi-functional CNC control system, such as: FANUC, SIEMENS, FAGOR, REXROTH, MITSUBISHI, etc;

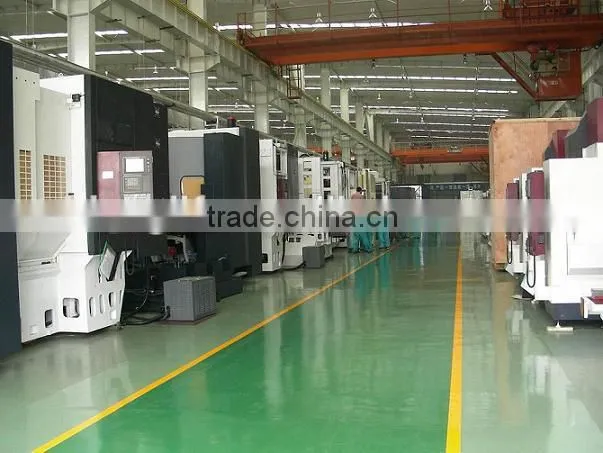

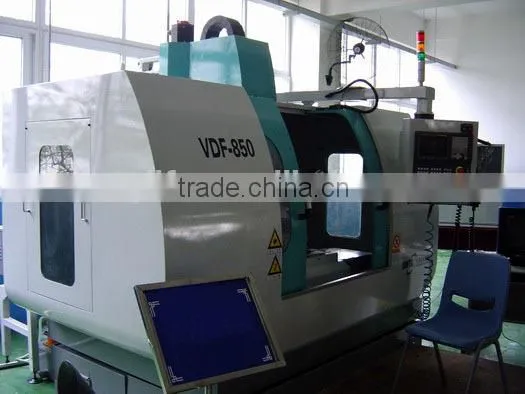

Real Photos

New Design

Main Technical Data

Specifications	Unit	VDF850 cnc vertical machining center
Table ( L× W)	mm	1000×500
T-slot (Numbers × Width × Distance) (b/t slots)	mm	5×18×100
Table load Max	kg	500
Distance from spindle center line to column guide way surface	mm	550
Distance from spindle nose to table upper surface	mm	150~660
X/Y/Z travel	mm	850/510/510
X/Y/Z guide way type		Sliding guide way
X/Y/Z rapid traverse speed	m/min	20/20/18
Feed rate	mm/min	1~7600
Positioning accuracy	mm	X:0.025 Y/Z:0.020
Repeat positioning accuracy	mm	X:0.010 Y/Z:0.008
X/Y/Z servo motor power	kW	3/3/3
Spindle motor power	kW	7.5/11
Spindle speed range	r/min	60~8000
Spindle taper		#40(7/24)
Tool magazine capacity/Type		BT40
Tool adaptor type		20/drum 24/swing arm(Opt)
Max. Tool weight	kg	7
Max. Tool diameter / length	mm	77/305
Time of tool change (T-T)	sec	6~8/3
Air pressure requirement	MPa	0.5
Power requirement	kW	25
Overall dimension (L × W × H)	mm	3350×2280×2650
Net weight	kg	7000
