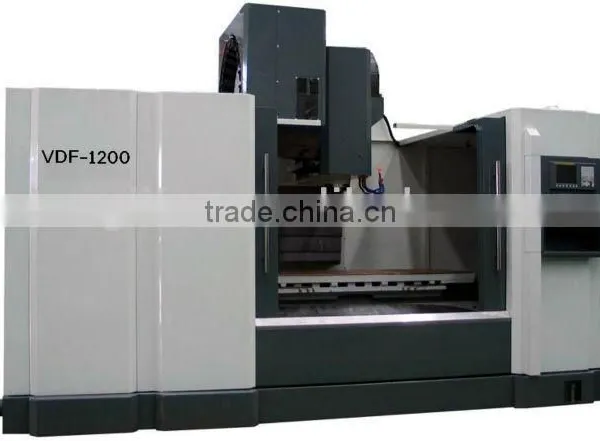

Large-sized Vertical Machining Center
1. With CE Certificate;
2. National Inspection-free products
3. Highly rigid and stable machine structure;
4. High precision linear on all three-axis;
5. High precision spindle and High spindle speed: 8000~10000rpm;
6. Fast and reliable tool changing mechanism;
7. Cooling system;
8. Multi-functional CNC control system, such as: FANUC, SIEMENS, FAGOR, REXROTH, MITSUBISHI, etc;
Specifications |
Unit |
VDL1200 |
VDL1300 |
VDL1400A |
Table(L×W) |
mm |
1220×620 |
1300×560 |
1450×620 |
T-slot(Numbers×Width×Distance)(b/t slots) |
mm |
5×18×100 |
5×18×100 |
5×18×100 |
Table load Max |
kg |
1500 |
750 |
1500 |
The distance from spindle center line to column guide way surface |
mm |
660 |
629 |
660 |
The distance from spindle nose end face to table upper surface |
mm |
100~775 |
135~735 |
100~775 |
X/Y/Z travel |
mm |
1200/600/675 |
1270×560×600 |
1400/600/675 |
X/Y/Z guide way type |
|
X/Y: Linear way |
X/Y: Linear way |
X/Y: Linear way |
X/Y/Z rapid traverse speed |
m/min |
24/24/18 |
24/24/18 |
24/24/18 |
Feed rate |
mm/min |
1~10000 |
1~10000 |
1~10000 |
X/Y/Z servo motor power |
kW |
3/3/3 |
3/3/3 |
3/3/3 |
X/Y/Z servo motor torque |
Nm |
22/22/22 |
22/22/22 |
22/22/22 |
Positioning accuracy |
mm |
X:0.025 Y/Z:0.020 |
X:0.025 Y/Z:0.02 |
X:0.025 Y,Z:0.020 |
Repeat positioning accuracy |
mm |
X:0.010 Y/Z:0.008 |
X:0.010 Y/Z:0.008 |
X:0.010 Y,Z:0.008 |
Spindle motor power |
kW |
11/15 |
11/15 |
11/15 |
Spindle speed range |
r/min |
45~6000 |
45~10000 |
45~6000 |
Spindle taper |
|
#50(7/24) |
#40(7/24) |
#50(7/24) |
Tool magazine capacity/Type |
|
24/swing arm |
24/swing arm |
24/swing arm |
Tool adaptor type |
|
BT50 |
BT50 |
BT50 |
Max. Tool weight |
kg |
15 |
7 |
15 |
Max. Tool diameter/length |
mm |
127/305 swing arm |
127/305 swing arm |
127/305 swing arm |
Time of tool change(T-T) |
sec |
3.5 |
3.5 |
3.5 |
Air pressure requirement |
mPa |
0.6 |
0.6 |
0.6 |
Power requirement |
kW |
35 |
35 |
35 |
Overall dimension(L×W×H) |
cm |
288×240×290 |
333×228×265 |
330×240×290 |
Net weight (kg) |
kg |
8000 |
7200 |
8500 |
The VDL 1400A is a collection of the latest development results of the world's CNC Machine tool industry and advanced manufacturing technology, and represents the development trend of the modern machine tool technology. The VDL 1400A is equipped with high-accuracy Roller Guide(X, Y, and Z). The machine features with the rigid structure, which is done through iterative simulation and computation of engineering mechanics, aiming to achieve the compact structural design and the engineering requirements of high rigidity and high quality. The machine not only performances the machining of flat-type, plate-type, spherical and high-accuracy workpieces and also is capable of molding. The machine is equipped with automatic tool changing system (ATC), automatic lubricating system, automatic cooling system, full-enclosed guard, automatic chip conveyor, manual oil gun and Manual Pulse Generator (MPG). Milling, boring, drilling, reaming and tapping can be performed in one set-up. The machine has characteristics of high-Automation, reliability, convenience, easy operation, suitability and handsome appearance together with heavy duty. The machine is widely used in various industries of military, aviation, car manufacturing and molding.
