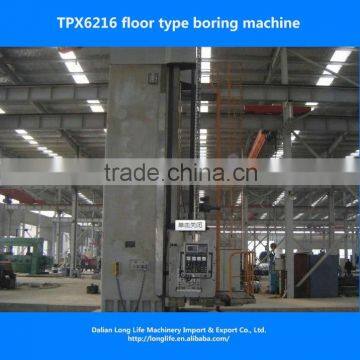

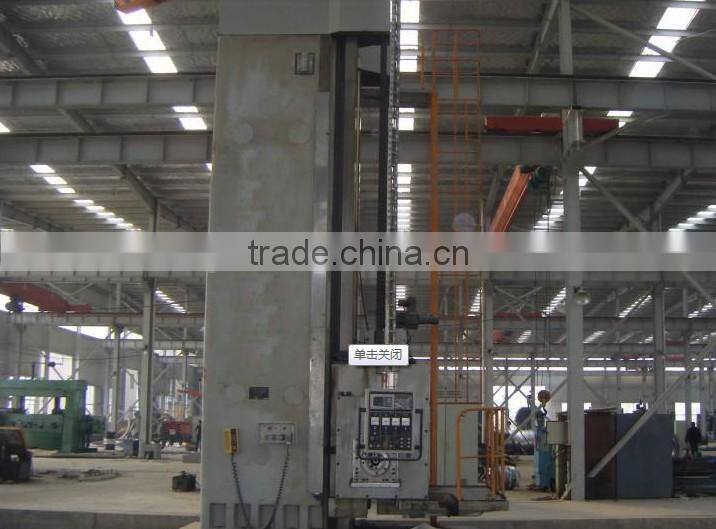

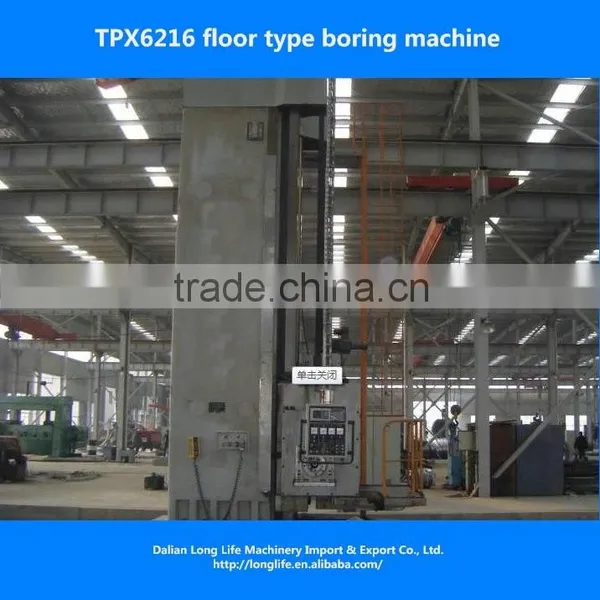

TPX6216 floor type horizontal boring and milling machine
Such floor type horizontal boring and milling machine has following features:
This machine is mainly used for milling holes for large and medium-sized parts as well as other processing such as hole drilling, expanding, reaming and plane milling.
The radial tool post of facing head can be used for surfacing;
if cooperated with rotary work table, it can be used for processing inner hole and outer circle with large diameter and short length.
Facer is installed on boring rod, which can be applied to the processing of workpiece plane milling.
Specifications | Unit | Parameter |
1. Spindle | mm |
|
Diameter of boring spindle | mm | Φ160 (6") |
Taper hole of boring spindle |
| Metric 80 |
Rotational speed of boring and milling spindle (stepless) | r/min | 1.8~500 |
Feed range of boring spindle (stepless) | mm/min | 0.45~1500 (60") |
Maximum axial travel of boring spindle | mm | 1200 (48") |
Rapid speed of boring spindle | mm/min | 1500 (60") |
Distance from spindle centre to platform (min.) | mm | 600 (24") |
Distance from spindle centre to platform (Max.) | mm | 2600 (102") |
Maximum diameter of boring hole | mm | Φ750 (30") |
Maximum resistance force of feed | kg | 3920 |
Maximum tightening torque | kg.m | 490 |
2. Radial tool post of facing head |
|
|
Rotation (stepless) | r/min | 1.8~120 |
Feed range (stepless) | mm/min | 0.21~750 (30") |
Maximum travel | mm | 220 (9") |
Rapid speed | mm/min | 750 (30") |
Maximum diameter of face turning | mm | Φ1000 (40") |
Maximum diameter of boring hole | mm | Φ1000 (40") |
3. Headstock |
|
|
Maximum vertical travel (Y axis) | mm | 2000 (80") |
Feed range (stepless) | mm/min | 5~1500 (60") |
Rapid speed | mm/min | 1500 (60") |
4. Front column |
|
|
Maximum horizontal travel (X axis) | mm | 4000 (160") |
Feed range (stepless) | mm/min | 5~1500 (60") |
5. Platform |
|
|
Dimension of platform | mm | 4500×1800×400 177"×71"×16" |
Area (length ×width) | mm | 3600×4500 (142"×184") |
Maximum loading capacity | T/M3 | 15 |
6. Power |
|
|
Main motor | kW | 30 (1500 r/min) |
Feed motor | kW | 7.5 (1500 r/min) |
Machine size |
|
|
Overall dimension (length × width × height) | mm | 8020×8800×6000 320"×350"×240" |
Overall weight | T | 67 |
