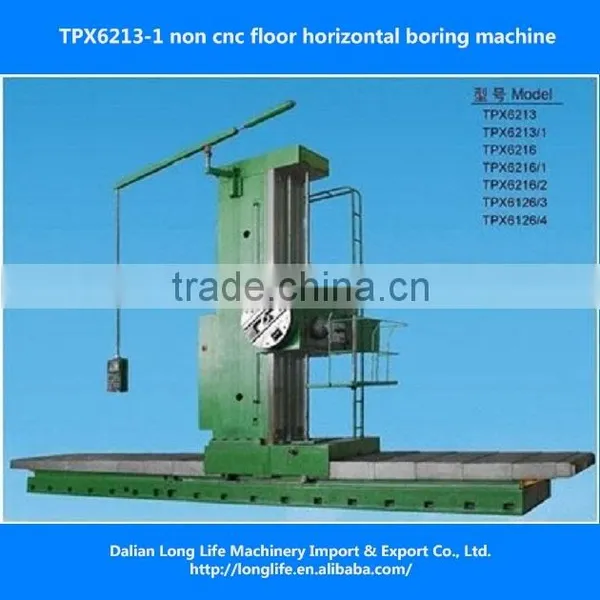

TPX6213-1 CE Non Cnc Floor Type Horizontal Boring and Milling Machine

Name: TPX6213-1 CE Non Cnc Floor Type Horizontal Boring and Milling Machine
Brand: DALIAN
SKU: 102713359
Availability: InStock

US$ 188,000 - 188,916 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Production Capacity:

0.01~8mm/min

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Tianjing/Shanghai/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Production Capacity 0.01~8mm/min

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number TPX6213-1 floor horizontal boring machine

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Power(W) 20.5kW

Dimension(L*W*H) 10000x1470x4115mm

Weight 45 tons

Certification CE Certificate; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

TPX6213-1 floor type boring machine Technical Data

Product Introduction

TPX6213 floor type boring machine can be adapted to machine casting, steel, and nonferrous word- places.
Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.
The faceplate slide can be fed radically, which enables the machine to bore large size holes, turning outside diameters, and grooving.
This series of machine can be used in the industries of energy, metallurgy, mining, machinery, military, etc it is a reliable choice for machining box- type part.
Spindle is stepless speed, 4 steps speed-change by mechanical shift, 2 steps feed by mechanical shift, box ways and facing head is balanced reducing type.

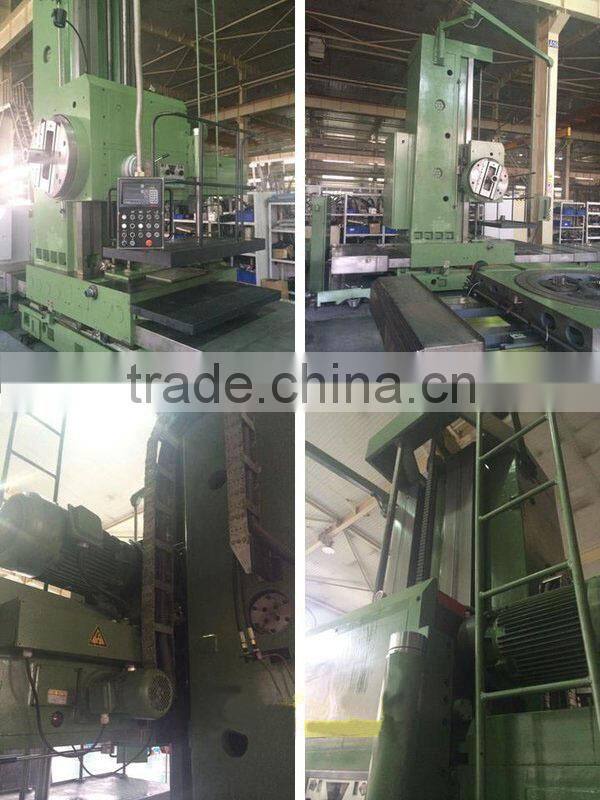

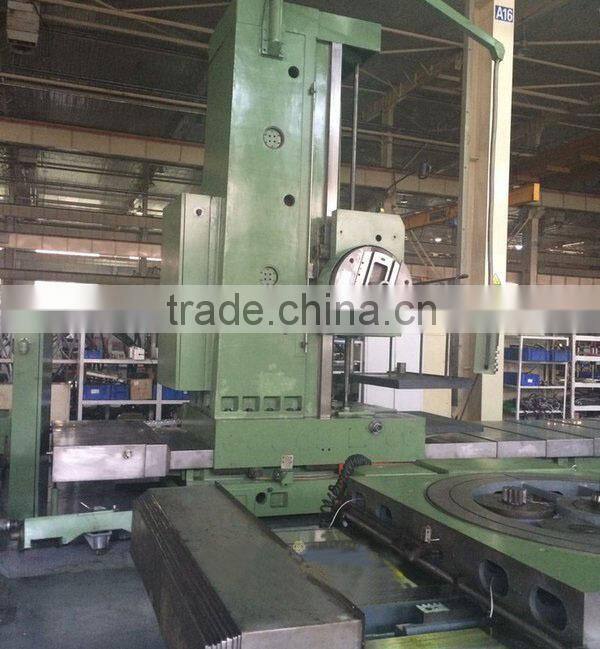

Detail Photos

Main Technical Data

Specifications	Unit	Parameter
Spindle bore diameter		Φ130
Spindle taper		Metric 80#
Spindle speed (stepless)	r/min	4~800
Range of spindle speed	mm/min	0.01~8
Travel of spindle (Z-axis travel)	mm	900
Distance from spindle center to table surface	mm	Max.2000 Min.240
Max. spindle axial thrust	N	31360
Max, spindle torque	Nm	4900
Travel of headstock (Y - axis travel)	mm	2000
Feed range (stepless)	mm/min	4~200/0.05~8 250~800/0.01~2
Travel of front column (X - axis travel)	mm	8000
Maximum loading capacity	t/m²	15
Power of main motor	kW	15
Feed motor power	kW	5.5
Overall dimensions (LxWxH)	mm	10000x1470x4115
Weight of machine	t	45
