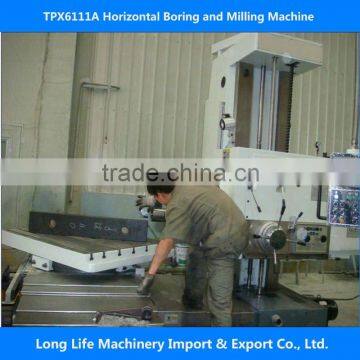

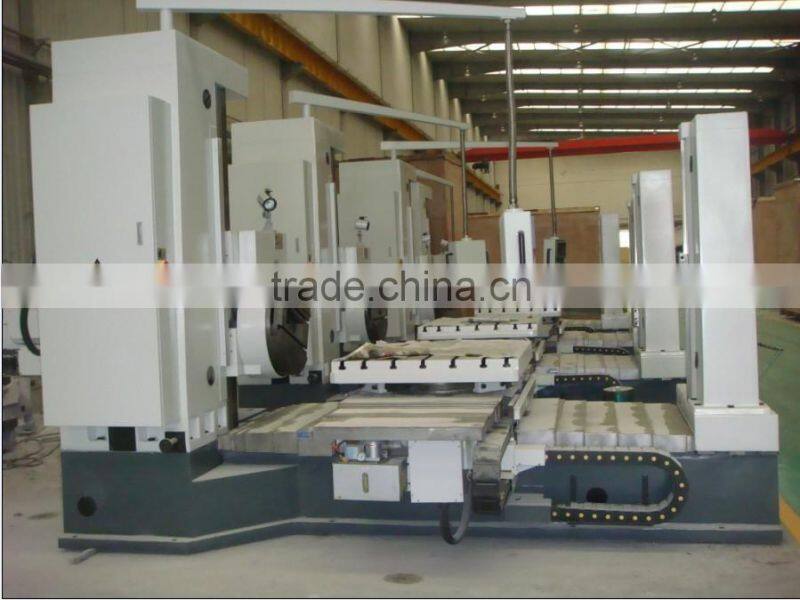

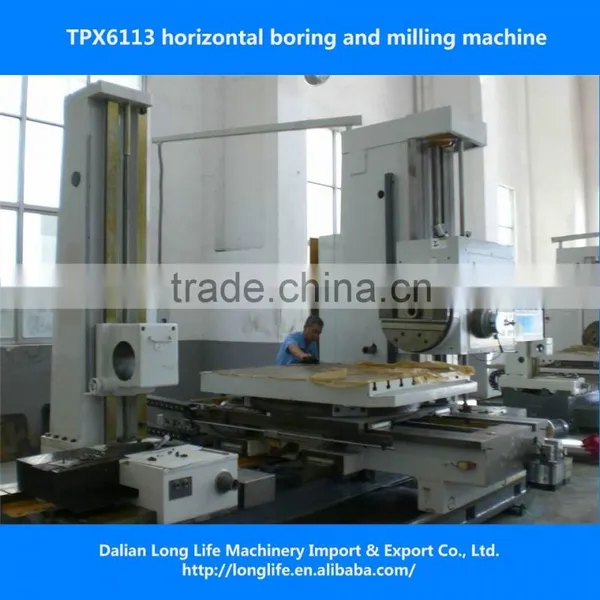

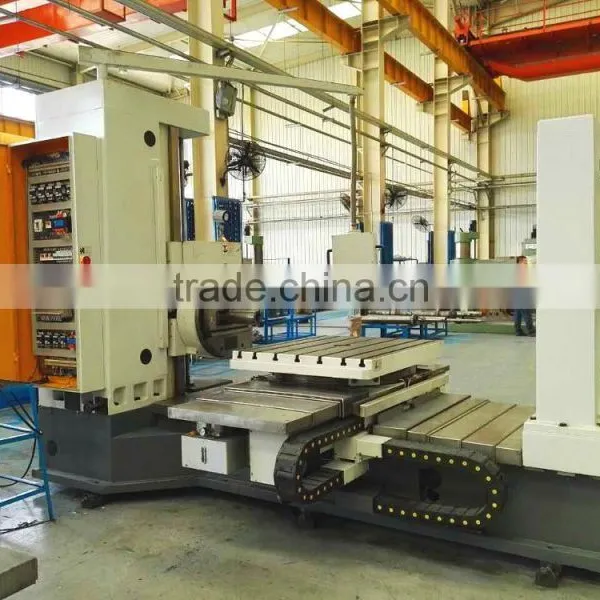

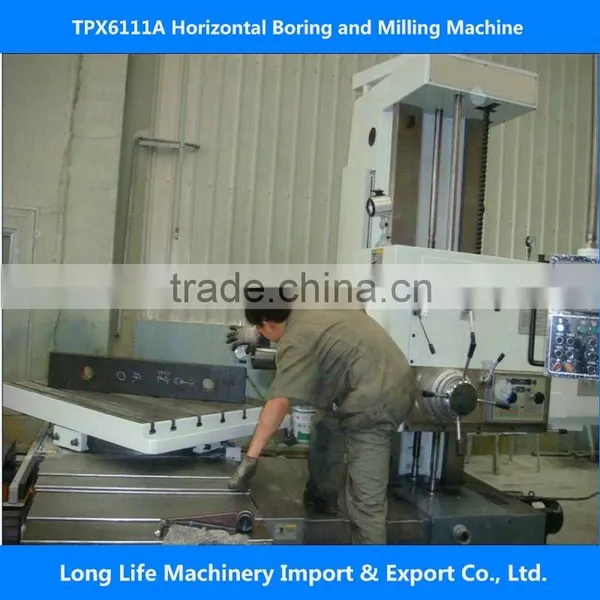

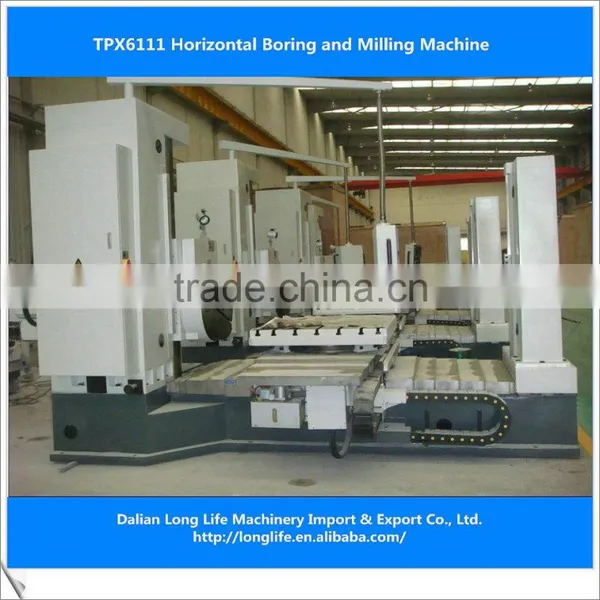

TPX61 horizontal boring and milling machine for sale
1. TPX61 series digital readout horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and nonferrous word- places.
2. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.
3. The faceplate slide can be fed radically, which enables the machine to bore large size holes, turning outside diameters, and grooving.
4. This series of machine can be used in the industries of energy, metallurgy, mining, machinery, military, etc it is a reliable choice for machining box- type part.
5. Spindle of better rigidity, stronger cutting force, higher efficiency.
6. Optical sensor available for higher table locating accuracy
7. DRO available for both X and Z axes;
8. Automatic tool loading and unloading available as optional with spindle of ISO7:24 at 50 taper;
Specifications |
Unit |
TPX6111 |
TPX6111A |
TPX6111A/2 |
TPX6113 |
TPX6113A |
TPX6113A/2 |
TPX6113A/3 |
Spindle bore diameter |
mm |
Φ110 |
Φ110 |
Φ110 |
Φ130 |
Φ130 |
Φ130 |
Φ130 |
Spindle taper |
MT |
6 |
6 |
6 |
80# |
80# |
80# |
80# |
Max, spindle torque |
Nm |
1225 |
1225 |
1225 |
3136 |
3136 |
3136 |
3136 |
Max. spindle axial thrust |
N |
12250 |
12250 |
12250 |
31360 |
31360 |
31360 |
31360 |
Steps of spindle speed |
|
22 |
22 |
22 |
24 |
24 |
24 |
24 |
Range of spindle speed |
r/min |
8~1000 |
4~800 |
|||||
Power of main motor |
kW |
7.5 |
7.5 |
7.5 |
15 |
15 |
15 |
15 |
Max. facing head torque |
Nm |
1960 |
4900 |
|||||
Facing head diameter |
mm |
Φ600 |
Φ600 |
Φ600 |
Φ750 |
|||
Range of facing head speed |
r/min |
4~200 |
4~200 |
4~200 |
2.5~125 |
|||
Speed step of facing head speed |
|
18 |
18 |
19 |
18 |
18 |
18 |
18 |
Table size |
mm |
1140 x1000 |
1140 x1000 |
1300 x1250 |
1600 x1400 |
1800 x1600 |
||
Max. load on table |
kg |
2500 |
8000 |
|||||
T- slot |
mm |
22 |
22 |
22 |
28 |
28 |
28 |
28 |
Number of T-slot |
|
7 |
7 |
7 |
9 |
9 |
9 |
9 |
X- axis travel |
mm |
1000 |
1350 |
1600 |
1600 |
2000 |
2000 |
3000 |
Y - axis travel |
mm |
1000 |
1000 |
1300 |
1500 |
1800 |
2000 |
2000 |
Z - axis travel |
mm |
1000 |
1000 |
1000 |
1500 |
1500/2000(Without Rear Column) |
||
W- axis travel (Spindle travel) |
mm |
600 |
600 |
600 |
900 |
|||
U - axis travel (facing head spindle travel) |
mm |
180 |
180 |
180 |
250 |
250 |
250 |
250 |
B - axis work table rotary |
|
360 |
360 |
360 |
360 |
360 |
360 |
360 |
Min. distance between spindle center and table surface |
mm |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Rapid travel (X/Y/Z) |
mm/min |
2500 |
||||||
Range of feed (X/Y/Z) |
mm/rev |
0.04~6 |
||||||
Precision of measurement accuracy (X/Y/Z) |
mm |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Delivery Time:
- Normally, 30~90 days, however, different sizes of machines, delivery time will be different, pls consult for exact machine.
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
