Home > Packaging & Printing > Printing Machinery > Flexographic Printer > High Speed Flexographic Plastic Printing Machine

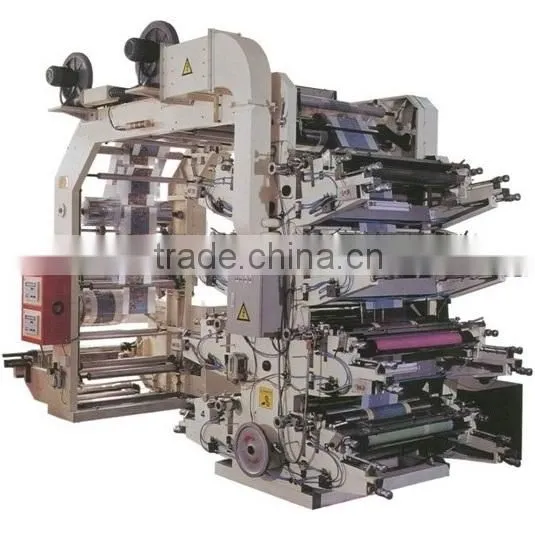

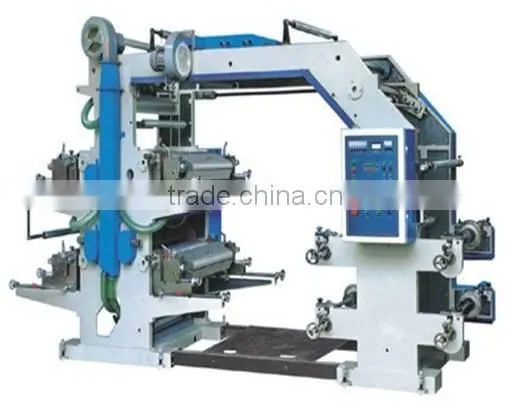

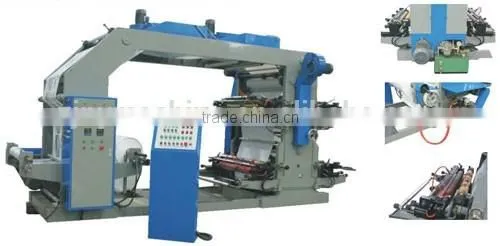

High Speed Flexographic Plastic Printing Machine

Name: High Speed Flexographic Plastic Printing Machine
Brand: Nanyi
SKU: 102653267

High Speed Flexographic Plastic Printing Machine thumbnail-1

High Speed Flexographic Plastic Printing Machine photo-1

US$ 2,000 - 8,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Plate Type:

Letterpress

Place of Origin:

Zhejiang, China

Contact Supplier Request Quote Chat Now

Zhejiang Nanyi Plastic Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Plate Type Letterpress

Place of Origin Zhejiang, China

Brand Name Nanyi

Model Number NY-6800

Usage Card Printer, Label Printer, Paper Printer

Automatic Grade Automatic

Voltage 380V

Gross Power 14.5KW

Dimensions(L*W*H) 4200*1600*3000mm

Weight 3000kg

Certification ISO,CE

After-sales Service Provided Engineers available to service machinery overseas

High Speed Flexographic Plastic Printing Machine

This machine is suitable for printing such packing materials as polyethylene,polyethylene plastic bagglass paper and roll paperetc. And it is a kind of ideal printing equipment for producing paper packing bag for food,supermarket handbag,vest bag and clothes bag,etc.

Characteristics:

1.Easy operation,flexible starting accurate colour register.

2.The meter counter can set printing quantity according to the requirement.Stop the machine automatically at the set quantity or when the material is cut off.

3.Lift and lower the printing plate cylinder manually,It will automatically stir the printing ink after lifting.

4.The printing ink is spread by the knurled cylindder with even ink colour.

5.Reliable drying system coordinated with high-speed rotation,it will automatically break circuit when the machine stops.

6.360 degree continuous and adjustable longitudinal register device.

7.Frequency control of motor speed adapts to different printing speeds.

8.There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Main Technical parameters:

Printing width	500mm	600mm	700mm	800mm	1000mm		1200mm	1400mm	1600mm
Printing material	PVC:35~70μm,OPP:20~70μm,BOPP:18~60μm,PE:35~100μm,NY:20~50μm,PET:12~60μm,CPP:20~60μm,Paper:20~150g/m2
Printing color	at your own choice+ 2 special color
Printing length	7.5"~40"(190mm~1000mm)/7.5"~50"(190mm~1270mm)
Printing plate lifting system	Pneumatic press control
Mechanical speed	150m/min
Printing speed	10~120m/min
Register precision	Longitude:±0.15mm , Transverse:±0.15mm
Rewinder/Unwinder DIA	φ800mm
Printing width	500mm		600mm			600mm		600mm
Material feeding width	600mm		700mm			800mm		900mm
Master motor	5.5Kw		5.5Kw			7.5Kw		7.5Kw
Rewinder motor	2.2Kw		2.2Kw			2.2Kw		2.2Kw
Electrical heater	18Kw		18Kw			22Kw		22Kw
Blower of heater	3Kw		3Kw			3Kw		3Kw
Blower of nature wind	1.1Kw		1.1Kw			1.1Kw		1.1Kw
Inking motor	370W		370W			370W		370W
Master frequency converter	5.5Kw		5.5Kw			7.5Kw		7.5Kw
Powder brakes	5Kg		5Kg			5Kg		5Kg
ension sensor	2~30Kg		2~30Kg			2~30Kg		2~30Kg
Master power	30Kw		30Kw			30Kw		30Kw
Net Weight	7550Kg		785 0Kg			8200Kg		9700Kg
