Best selling DZK26 china clay brick making machine with lower price
Product introduction for DZK26 china clay brick making machine :

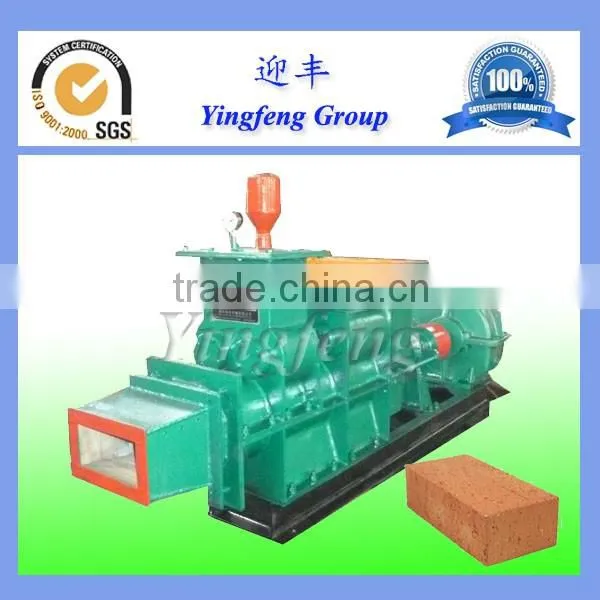

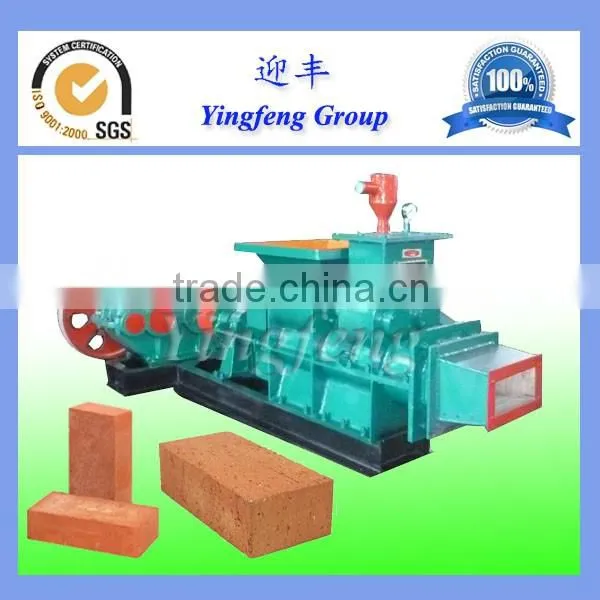

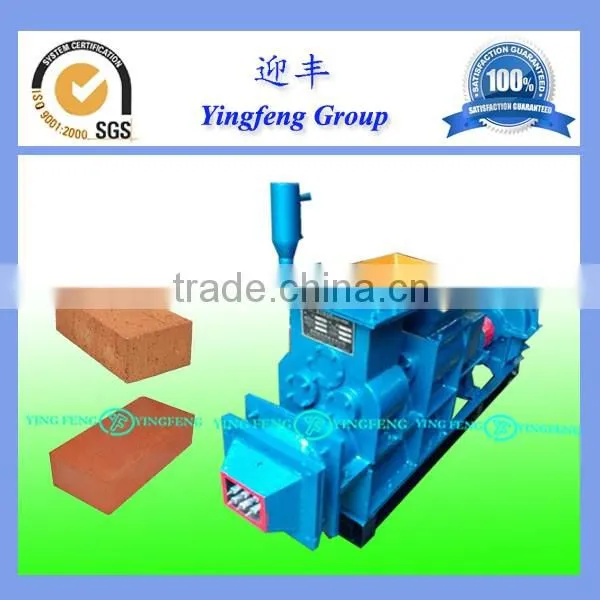

DZK26 Yingfeng brand clay brick extruder is our Smallest vacuum brick production,it is widely used in small budget brick owners. We design it as single stage vacuum extruder,so it largely reduce the eletricty consumption.we also have own the patent for this product in China.Also, its compact design and manual clutch makes machine operation very easily.
1.simple structure to makes operation more conveniently.
2.Easy operation;
3.Energy and labor saving, taking only one motor,lower budget,
4.Can produce solid bricks but with vacuum , vacuuum solid bricks
( If producing perforated brick and hollow brick, we recommend double stage vacuum extruder)
Single stage vacuum extruder and Double stage Vacuum extruder differences:
1) Double stage Vacuum brick extruder can make three kinds of brick, solid brick, porous brick and hollow bricks. To produce different kinds of bricks, usually, only need to fix different brick die. It is composed of upper stage mixing parts and lower stage extruding parts;
2) Single stage vacuum extruder usually can produce solid bricks. It has only lower stage extruding parts;
3) Double stage vacuum extruder has higher capaicty ,higher vacuum pressure than single stage vacuum extruder . Also double stage extruder green bricks contains less moisture.
More main specification and technical parameters for your reference:
Type |
Capacity(pcs/h) |
Auger Diameter (mm) |
Extruding Pressure (Mpa) |
Extruder Power (KW) |
Whole production line power(KW) |
DZK26 |
2000-3000 |
260mm |
2 |
22 |
42-70 |
DZK28 |
3000-4000 |
280mm |
2 |
30 |
50-80 |
DZK30 |
4000-6000 |
300mm |
2 |
37 |
90-100 |
DZK35 |
6000-7000 |
350mm |
2 |
55 |
120-140 |
DZK40 |
8000-10000 |
400mm |
2 |
75 |
140-160 |
DZK45 |
10000-12000 |
450mm |
2 |
90 |
160-180 |
Note: The above capacity is based on Chinese brick size : 240X115X53 mm,.We would send different brick capacity list and brick machine price list to you once we get your.
Brick sample
Brick extruder |
Solid bricks Void ration ≤ 10% |
Perforated brick Void ration 15%~35% |
Hollow brick Void ration≥40% |
JZ Non-vacuum extruder |
√ |
× |
× |
DZK Single stage Vacuum extruder |
√ |
× |
× |
JKR Double stage Vacuum extruder |
√ |
√ |
√ |
JZK Double stage Vacuum extruder |
√ |
√ |
√ |
JKY Double stage Vacuum extruder |
√ |
√ |
√ |
Note: Above brick sample picture is just for reference. We can provide different model bricks machine with different moulds according to your requirements.
Yingfeng DZK china clay brick making machine production line:
Note:The above production line is based on soft clay,mud,soil.If your material is shale,fly ash,coal Gangue,or with big stones,grass roots,etc,or you want to buy brick carrying cars or robot ,brick stacker, the above line will be adjusted after we get your feedback for your material condition.
| After brick cutting how to do brick drying and firing | |||||||||||
| Item | Drying method | Firing method | Advantage and disadvantage | ||||||||
| 1 | Natural drying | Buyer Local kiln | Very low investment, but may take more labors | ||||||||
| 2 | Natural drying | Hoffman kiln | A little high investment, but may take more labors | ||||||||
| 3 | Natural drying | Tunnel kiln | High investment, but takes less labors than Item 2 | ||||||||
| 4 | Small tunnel dryer | Hoffman kiln | High investment, but takes less labors than Item 2 | ||||||||
| 5 | Small tunnel dryer | Tunnel kiln | Higher investment, but takes less labors than Item 4 | ||||||||
| 6 | Big Tunnel dryer | Tunnel kiln | Highest investment, but takes least labors | ||||||||
Yingfeng DZK series China clay brick making machine workshop:
Our Certificate
Yingfeng technology DZK series china clay brick making machine delivery for our clients,Packing List:
| Item | Number | Item | Number | |
| Brick exturder | 1 set | V belt | 1 set | |
| Box Feeder | 1 set | Mould | 1 set | |
| Double Roller Crusher | 1 set | Electric cabinet | 1 set | |
| Double Shaft Mixer | 1 set | Secondary Control cabinet | 3 set | |
| Brick Cutter | 1 set | 2 years spare parts | 1 set | |
| Auto-board bearer | 1 set | Brick factory Tools | 1 set | |
| Vacuum Pump | 1 set | Warranty Card | 1 copy | |
| Belt conveyor | 3 set | Product operation Manual | 1 copy | |
| Motor | 1 set |
Note: The above packing list is based on standard clay brick production line, if your soil contains stones, grass root, then extra equipment need to be added. The final packing list will be changed according to buyer's final machine order
Clay brick machine delivery for our clients :
1.Each small part of machine would be packed well, also we would arrange engineer to check each machine parts before delivery, so we can ensure buyer can get complete clay brick machine parts.
2. Some parts will be given soft protection before feeding in the container to make sure all the machine will be new when arriving at customer hand.
3. Inside the container, we will fix the machine with steel wire,to make sure all the machine will be fixed safety.
We have sold china clay brick machine to more than 30 countries,like
Our china clay brick making machine delivery photos for our clients:
Our china clay brick machine Service :
Aftersale service is an important part in our brick machine industry, after more than 20 years, we have much
more experience to support our buyer of brick machine.
2.Successfully running unit abroad for customer’s study and reference;
3.Manual book and videos are available on our offical website() after password provided;
4. Provide customers with various brick making equipments;
5. provide services like process design, kiln design, workshop design;
6. Also, we have a professional team of engineers to do clay brick machine installation, training workers,
imparting technical instruction to our buyers;
7. After brick machine running, we have special aftersale service department to provide spare parts, machine
problem fixing.
Our Running brick production video link for your reference
( Please adjust the video image quality to 240 or 360P when watching)
JZ250 Small clay brick making machine
JZ300 Non-vacuum clay brick producing line
/watch?v=sjg7GsfcYfk
DZK26 Clay Brick Extruder
/watch?v=d3ifvCwPU68
JKR30 Vacuum clay brick production line with brick separator
/watch?v=TBgEnsWOGyM
JKR35 Clay brick making machine
/watch?v=IQtzh_pjcxA
JKRL35 Vacuum brick production line with unloader and brick loading cars
/watch?v=IQtzh_pjcxA&feature=youtu.be
JKR40 Vacuum Clay block making machine
http://youtu.be/jZmoW49xtF8 http://youtu.be/qOCe79N43ns
JKRL45 Vacuum Clay brick production line with auto brick loading cars
/watch?v=3DCR2rR_wYA
JZK50 Vacuum Clay brick producing line with dryer and hoffman kiln
/watch?v=AyTanhTc9xI
JKY60 Auto brick production line with tunnel kiln and dryer
/watch?v=8R_XzKkDySU&feature=youtu.be
Yingfeng Automatic brick stacking machine
/watch?v=r45s8057XGY
Contact us:
China Mobile Number ( Whatsapp, Wechat ,Viber): 0086 18638712391 or 008615039963315
Email: kai(at) skype: fanchen588
Web:
How to visit us or check clay brick making machine quality
If you want to visit our Chinese factory, please note our city name, Zhengzhou city.
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station .
You can also visit our brick plant in your local places .
