Hot selling JZ250 solid clay brick machines,small clay brick making machine from Yingfeng Brand
We are a high-tech enterprise, integrating science, industry and trade for brick and tile machinery with our brand more than 30 varieties and over 100 specifications.Now we have built more than 2000 brick production line in China and abroad.

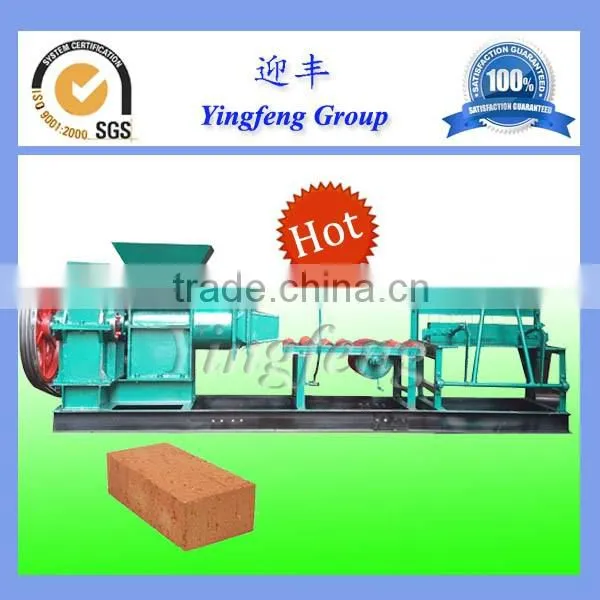

General introduction for JZ250 solid clay brick machine :

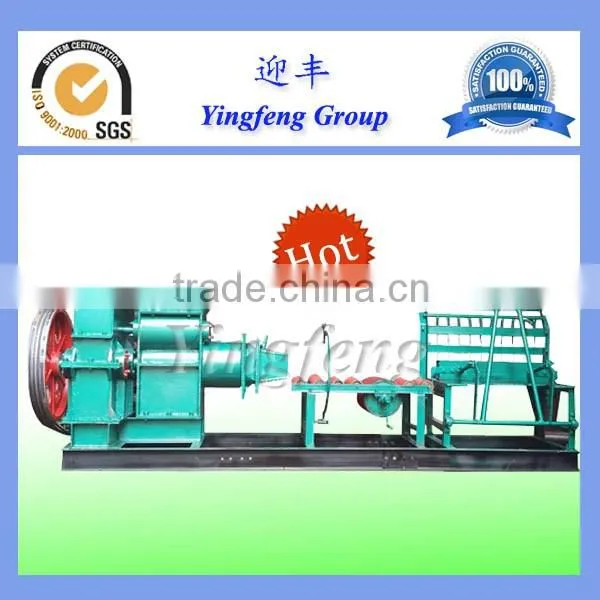

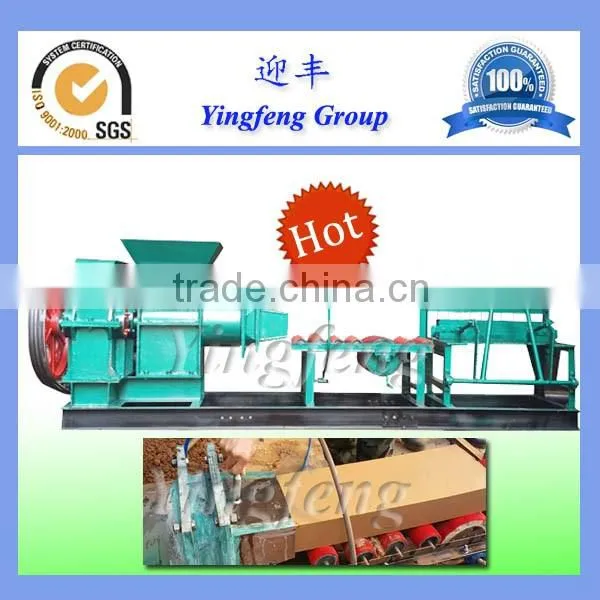

JZ250 small brick making machine Yingfeng brand non-vacuum clay brick machine is smallest models brick
extruders.It is widely used in small family brick owners.Suitable for family workshops. Also, its compact design
makes machine operation very easily. Therefore we are selling at least 128 sets per year to over 12countries.
The JZ250 solid clay brick machine has the following advantages:
1.Strong applicability, lower energy consumption,the extruder only 11 KW.
2.The raw material for making bricks can be soil,mud.
3.Solid brick is the best choice.
4.The brick extruder has taken manual brick strip cutter and brick blank cutter.
The difference between non-vacuum and vacuum extruder
1. Non-vacuum extruder usually can only produce solid bricks. . Vacuum brick is extruded out of the vacuum extruder.
And non- vacuum extruder has no extraction equipment, so the brick hardness is not so much as vacuum bricks.
2.Because the vacuum brick is first extracted with air and water , naturally shorter firing time, rapid prototyping. Greatly reducing the production cycle.
More technical parameters for your reference:
Type |
Capacity(pcs/h) |
Auger Diameter (mm) |
Extruding Pressure (Mpa) |
Extruder Power (KW) |
Whole production line power KW) |
JZ250 |
2000-3000 |
250mm |
0 |
11 |
15-47 |
JZ280 |
3000-4000 |
280mm |
0 |
22 |
50-70 |
JZ300 |
4000-6000 |
300mm |
0 |
30 |
70-80 |
JZ350 |
6000-7000 |
350mm |
0 |
40 |
80-95 |
JZ400 |
8000-10000 |
400mm |
0 |
55 |
120-140 |
JZ500 |
13000-16000 |
500mm |
0 |
90 |
150-180 |
Note: The above capacity is based on Chinese brick size : 240X115X53 mm, if your brick size is different from our brick size, then the capacity will differ .We would send different brick capacity list and different brick machine price list to you once we get your mail.

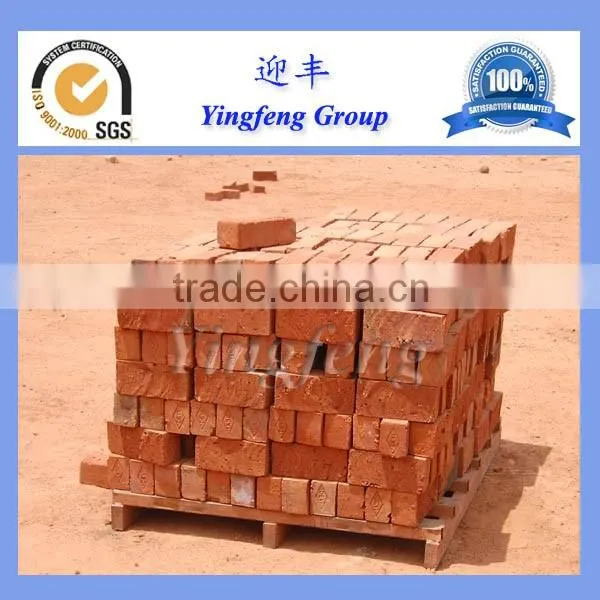

The following is part of brick sample which JZ250 solid clay brick machine can produce .
Brick extruder |
Solid bricks Void ration ≤ 10% |
Perforated brick Void ration 15%~35% |
Hollow brick Void ration≥40% |
JZ Non-vacuum extruder |
√ |
× |
× |
DZK Single stage Vacuum extruder |
√ |
× |
× |
JKR Double stage Vacuum extruder |
√ |
√ |
√ |
JZK Double stage Vacuum extruder |
√ |
√ |
√ |
JKY Double stage Vacuum extruder |
√ |
√ |
√ |
Note: The above brick sampe is just for your reference, We can provide other different brick machine with different mould sizes according to your requirements.

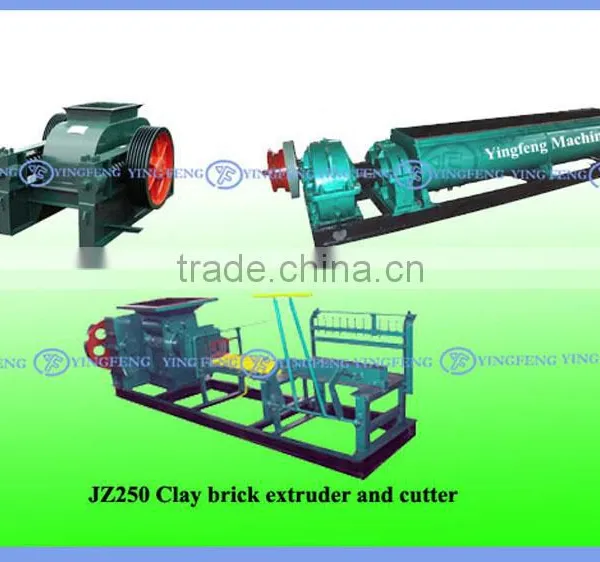

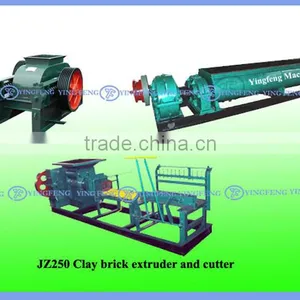

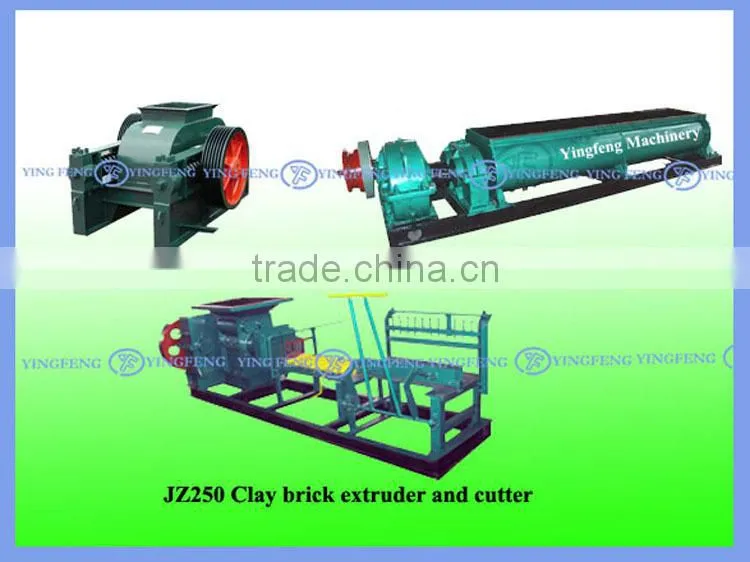

JZ250 solid clay brick machine production line:
Note:The above production line is based on soft clay,mud,soil.If your material is shale,fly ash,coal Gangue,or with big stones,grass roots,etc,or you want to buy brick carrying cars or robot ,brick stacker, the above line will be adjusted after we get your feedback for your material condition.
| After brick cutting how to do brick drying and firing | |||||||||||
| Item | Drying method | Firing method | Advantage and disadvantage | ||||||||
| 1 | Natural drying | Buyer Local kiln | Very low investment, but may take more labors | ||||||||
| 2 | Natural drying | Hoffman kiln | A little high investment, but may take more labors | ||||||||
| 3 | Natural drying | Tunnel kiln | High investment, but takes less labors than Item 2 | ||||||||
| 4 | Small tunnel dryer | Hoffman kiln | High investment, but takes less labors than Item 2 | ||||||||
| 5 | Small tunnel dryer | Tunnel kiln | Higher investment, but takes less labors than Item 4 | ||||||||
| 6 | Big Tunnel dryer | Tunnel kiln | Highest investment, but takes least labors | ||||||||

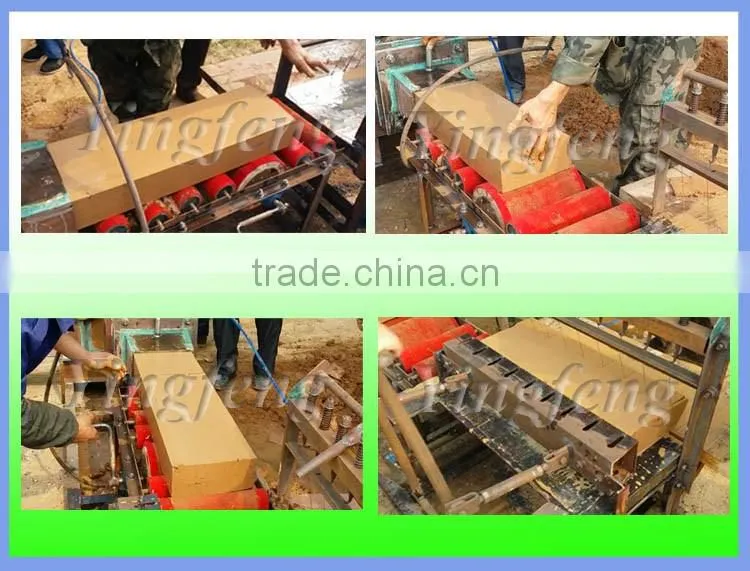

Yingfeng JZ250 Solid clay brick machines workshop
Yingfeng solid clay brick machine raw material:

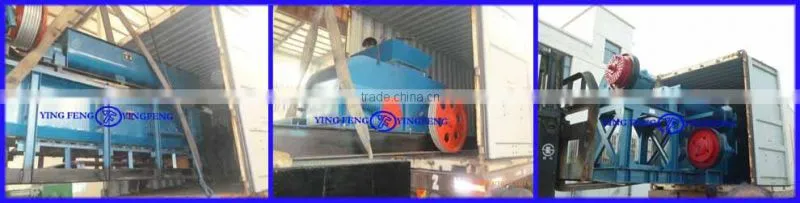

JZ250 solid clay brick machine Delievery For Our Clients. Packing list:
| Item | Number |
| Brick exturder | 1 set |
| Brick Cutting Machine | 1 set |
| Motor | 1 set |
| V belt | 1 set |
| Mould | 1 set |
| 2 years spare parts | 1 set |
| Brick factory Tools | 1 set |
| Warranty Card | 1 copy |
| Product Manual | 1 copy |
Note: The above packing list is based on standard clay brick production line, if your soil contains stones, grass root, then extra equipment need to be added. The final packing list will be changed according to buyer's final machine order
1.Each small part of machine would be packed well, also we would arrange engineer to check each machine parts before delivery, so we can ensure buyer can get complete clay brick machine parts. .
2. Some parts will be given soft protection before feeding in the container to make sure all the machine will
be new when arriving at customer hand.
3.Inside the container, we will fix the machine with steel wire,to make sure all the machine will be fixed safety.
Our solid clay brick machine have been exported to countries such as India, Bangladesh ,
Indonesia, Myanmar,Kazakhstan, Uzbekistan, Russia,Turkmenistan, Mongolia, Nepal, Sudan,
South Africa, Uganda, Mozambique,Zimbabwe,Congo,Peru, Brazil, Iraq ,Bolivia Mexico,etc.
and have won great fame and popularity.
Our solid clay brick machine Service :
Aftersale service is an important part in our brick machine industry, after more than 20 years, we have much
more experience to support our buyer of brick machine.
2.Successfully running unit abroad for customer’s study and reference;
3.Manual book and videos are available on our offical website() after password provided;
4. Provide customers with various brick making equipments;
5. provide services like process design, kiln design, workshop design;
6. Also, we have a professional team of engineers to do clay brick machine installation, training workers,
imparting technical instruction to our buyers;
7. After brick machine running, we have special aftersale service department to provide spare parts, machine
problem fixing.
Our Running brick production video link for your reference
( Please adjust the video image quality to 240 or 360P when watching)
JZ250 Small clay brick making machine
JZ300 Non-vacuum clay brick producing line
/watch?v=sjg7GsfcYfk
DZK26 Clay Brick Extruder
/watch?v=d3ifvCwPU68
JKR30 Vacuum clay brick production line with brick separator
/watch?v=TBgEnsWOGyM
JKR35 Clay brick making machine
/watch?v=IQtzh_pjcxA
JKRL35 Vacuum brick production line with unloader and brick loading cars
/watch?v=IQtzh_pjcxA&feature=youtu.be
JKR40 Vacuum Clay block making machine
http://youtu.be/jZmoW49xtF8 http://youtu.be/qOCe79N43ns
JKRL45 Vacuum Clay brick production line with auto brick loading cars
/watch?v=3DCR2rR_wYA
JZK50 Vacuum Clay brick producing line with dryer and hoffman kiln
/watch?v=AyTanhTc9xI
JKY60 Auto brick production line with tunnel kiln and dryer
/watch?v=8R_XzKkDySU&feature=youtu.be
Yingfeng Automatic brick stacking machine
/watch?v=r45s8057XGY
China Mobile Number ( Whatsapp, Wechat ,Viber): 0086 18638712391 or 008615039963315
Email: kai(at) skype: fanchen588
Web:
