Perfect quality red brick making machine ! Yingfeng JZK40 red brick machine,red brick making machine in india hot selling
We are a high-tech enterprise, integrating science, industry and trade for brick and tile machinery with our brand more than 30varieties and over 100 specifications. Now we have built more than 2000 brick production line in China and abroad.Our main products are:
Clay brick making machine
Tile making machine
Interlocking brick making machine
Concrete brick making machine
JZK40 red brick making machine is our latest product ,we also have own the patent for this
product in China.It has the following advantage:
1.Strong applicability, compact structure, lower energy consumption,higher yield.
2.The raw material for making bricks can be clay, fly ash,shale, clay is better .
3.It can also produce hollow bricks with small or big holes.
Model |
Auger diameter(mm) |
Capacity |
Power(KW) |
Dimension(M) |
JZK35/35 |
350 |
7000-9000(pcs/h) |
37/75 |
4.5X1.5X1.89 |
red brick making machine" href="http://zzyfmc.en.china.cn/product/692745860-212981090/Perfect_quality_red_brick_making_machine_Yingfeng_JZK40_red_brick_machine_red_brick_making_machine_in_india_hot_selling.html" target="_blank">JZK40/40 |
400 |
9000-11000pcs/h |
90+45 |
4.6X2.2X1.5 |
JZK45/45 |
450 |
12000-13000pcs/h |
45+110 |
6.1X1.6X2.3 |
JZK50/50 |
500 |
13000-15000pcs/h |
45+132 |
6.5X1.8X2.5 |
JZK55/55 |
550 |
16000-18000pcs/h |
90+160 |
6.5X1.8X2.5 |
Note: The above capacity is based on Chinese brick size : 240X115X53 mm, if your brick size is different from our brick size, then the capacity will differ .We would send different brick capacity list and different brick machine price list to you once we get your mail to us.

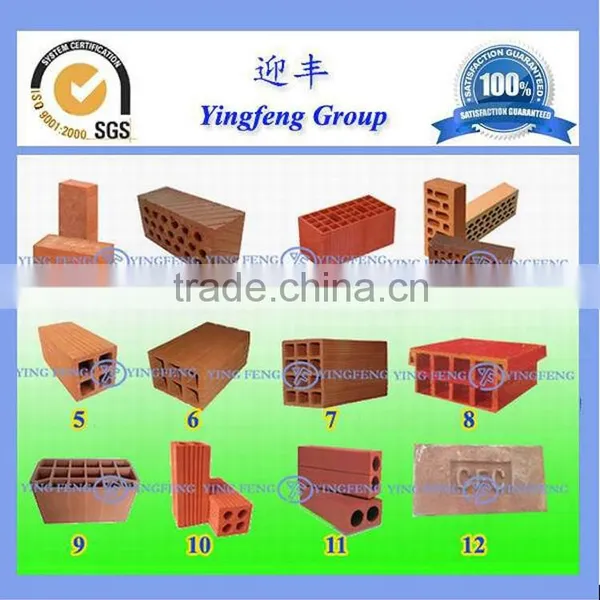

The following is some part of brick mould sample which Yingfeng
red brick making machine can produce.
Note: We can provide other different brick mould with different mould sizes according to your requirements.

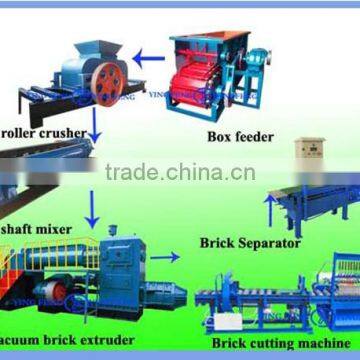

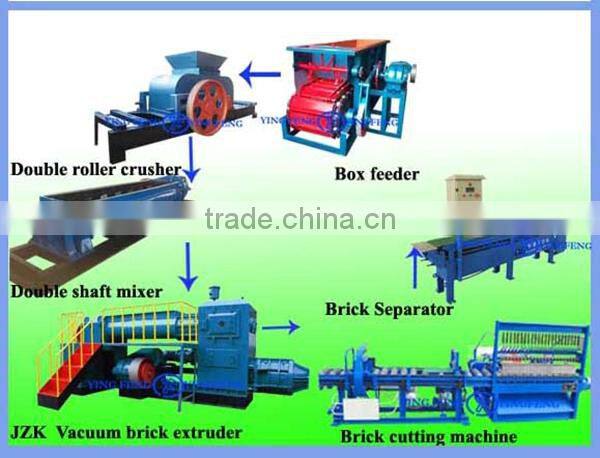

JZK40 red brick making machine production line:
Yingfeng supply the following brick making machine and Related brick making equipment:
1. Belt type box feeder
2. Roller crusher, Double stage crusher, hammer crusher
3. Double shaft mixer, double shaft mixer and extruder
4. Brick vacuum extruder, brick making machine
5. Automatic brick cutter system
6. Bricks separation machine
7. Interlocking Brick Making Machine
8. Concrete Block Making Machine, Cement Block Making Machine
9. Tile Making Machine
8. Brick dryer
9. Brick tunnel kiln
10. Brick kiln equipment
11. Automatic brick loading and unloading machine
12. Automatic brick packing machine
13. Automatuc robot brick setting machine
14. Auotmatic brick stacking machine
15. Brick dryer and tunnel kiln design and construction
16. Technical provide and technical supervision
17. Turn-key project
18. Full automatic brick project clay floor tile making machine
21. Full automatic clay brick making machine and brick making equipment

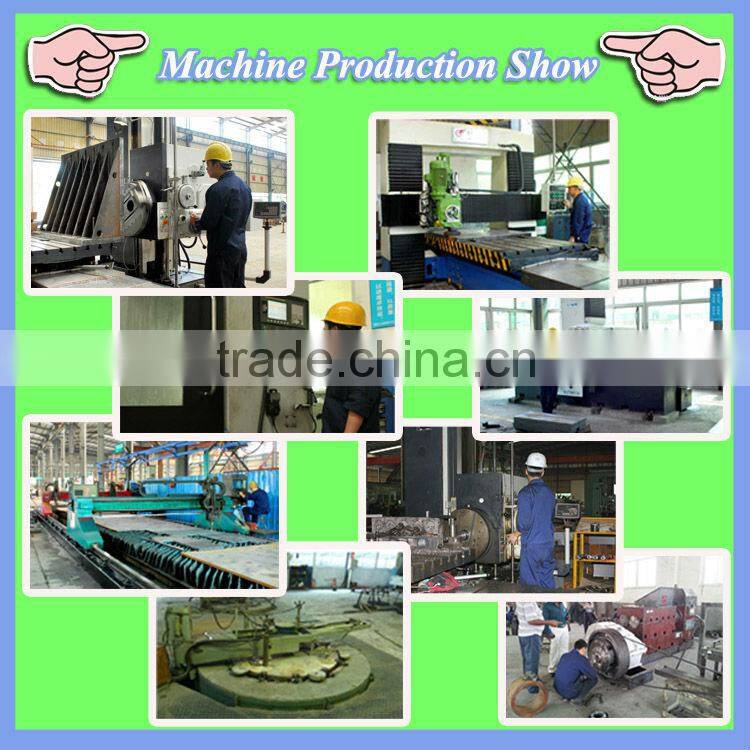

JZK40 Red brick making machine workshop:

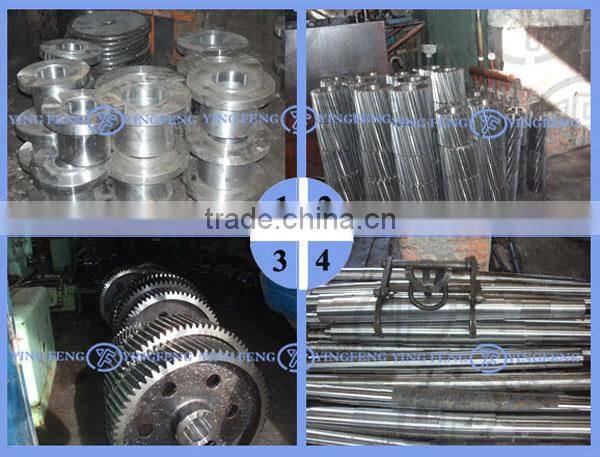

We are responsible for our clients when we choose raw material for our clients,
1. auto oil lubricating system can save labors and it's easy to lubricate extruder's gears and bearings automatically. On the other hand, the lubricating oil can be recycled and to use again, so it can save oils too.
2..For doubles shaft mixer blades, we choose 45 Carbon steel.
3..For roller crusher ,we use high manganese
4.steel.axles, gear and other important spare parts which are made by carbon steel and alloy steel through modulation or quench’s heat treatment procession so as to extend the service life.
5. For hollow brick mould, we use wear resistance ceramic material as core to ensure longer mould service life.

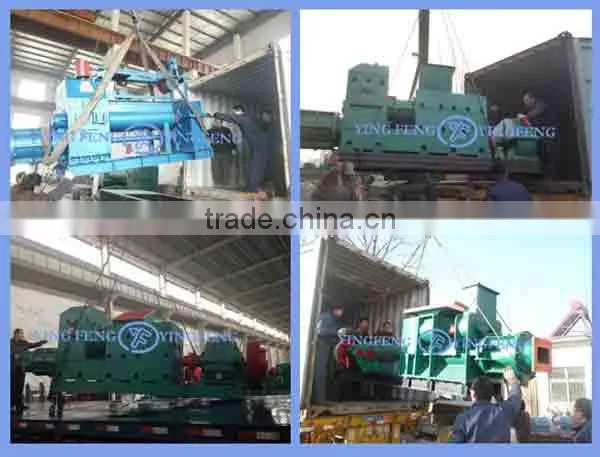

JZK40 red brick making machine delivery for our clients :
1.Each small part of machine would be packed well, also we would arrange engineer to check each machine parts before delivery, so we can ensure buyer can get complete clay brick machine parts.
2. Some parts will be given soft protection before feeding in the container to make sure all the machine will be new when arriving at customer hand.
3. Inside the container, we will fix the machine with steel wire,to make sure all the machine will be fixed safety.
Our red brick making machine
have been exported to countries such as India, Bangladesh ,Indonesia, Myanmar,
Kazakhstan, Uzbekistan, Russia,Turkmenistan, Mongolia, Nepal, Sudan, South Africa, Uganda, Mozambique,
Zimbabwe,Congo,Peru, Brazil, Iraq ,Bolivia Mexico,etc. and have won great fame and popularity..
Below is part of our delivery photos for our clients from different countries.
Our red brick making machine Service :
Aftersale service is an important part in our brick machine industry, after more than 20 years, we have much
more experience to support our buyer of brick machine.
2.Successfully running unit abroad for customer’s study and reference;
3.Manual book and videos are available on our offical website() after password provided;
4. Provide customers with various brick making equipments;
5. provide services like process design, kiln design, workshop design;
6. Also, we have a professional team of engineers to do clay brick machine installation, training workers,
imparting technical instruction to our buyers;
7. After brick machine running, we have special aftersale service department to provide spare parts, machine
problem fixing.
Our Running brick production video link for your reference
( Please adjust the video image quality to 240 or 360P when watching)
JZ250 Small clay brick making machine
JZ300 Non-vacuum clay brick producing line:
/watch?v=sjg7GsfcYfk
DZK26 Clay Brick Vacuum Extruder:
/watch?v=d3ifvCwPU68
JKR30 Vacuum clay brick production line with brick separator:
/watch?v=TBgEnsWOGyM
JKR35 Clay brick making machine:
/watch?v=IQtzh_pjcxA
JKRL35 Vacuum brick production line with unloader and brick loading cars:
/watch?v=IQtzh_pjcxA&feature=youtu.be
JKR40 Vacuum Clay block making machine in Mexico:
