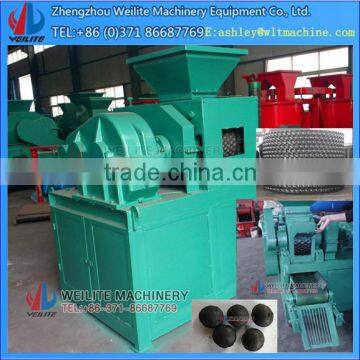

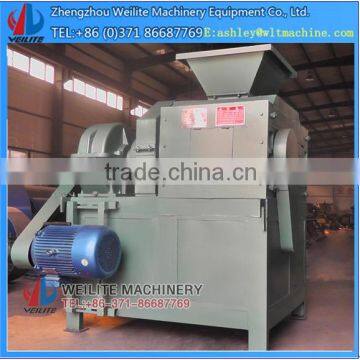

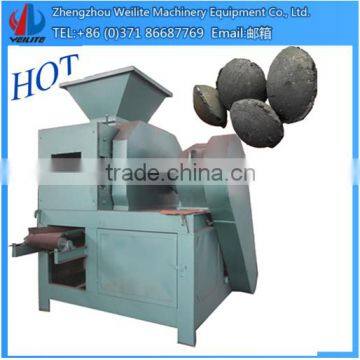

Powder Coal Briquette Machine
Features of the powder coal briquette machine
1. Mature technology design ; durable quality ;
2. Simple structure but excellent making effect ;
3. Easy to operate, small in size, power saving ;
4. Can adapt continuous produce with large capacity / output .
Our powder coal briquette machine helps in develop high quality Briquettes and waste powder coal recycling. As a manufacturer, exporter, and supplier, we have the expertise to design and develop premium grade powder material briquette machine to assure smooth production of briquettes in varied sizes. Binder and adhesivematerial used should be of high quality that makes the process easier and qualitative.
Suitable material for the powder coal briquette machine
Charcoal powder, coal , coal powder, charcoal pulver ,carbon powder,
bamboo carbon powder, coke powder, shisha
powder, graphite powder, coconut powder,
ZaoMu Carbon, LAN carbon powder, active carbon ,etc .
With the powder coal briquette machine, the briquette product with the following features:
a.Briquette Size:30-60mm or custom made
b.Briquette Shape:oval, square, pillow, hexagonal or custom design
c.The rollers are made of 65Mn or 9Cr2Mo.After heat treatment the hardness of the rollers will be very high. The rollers is specially designed and easy for exchange. And there is buffer unit inside the machine to prevent the machine from being damaged by block material.
The working principle of the powder coal briquette machine
Briquette Machine motor will pass the power on to the two pressure roller through the reducer. The two sides and roller rotation, in both the rotating direction, material fulfill the space between two rollers, with the roller rotation, pressure on material will be bigger and bigger. When the material reach the two rollers rotating line contact point, the pressure reach the peak. After press, the briquette will drop by gravity.
The powder coal briquette machine mainly made of three parts:
1. feeding material part : to make sure feed the press roller material evenly
2. Gearing part : to supply power by electromagnetic adjustable speed motor
3. Molding part . Mainly means the basic body of the machine, the core part is the roller .
Application area of the powder coal briquette machine
Refractory industry, power plant, metallurgy industry, chemical, energy, transportation, heating,
animal husbandry, industry, agriculture, barbecue, and other fields.
Packing of the powder coal briquette machine
1. with wooden case for single machine, small size machine
2. with container for big size machine, large quantity machine, or complete production line
Main technology parameter for the powder coal briquette machine
Model |
WLXM-360 |
WLXM-400 |
WLXM-500 |
WLXM-650 |
WLXM-750 |
WLXM-850 |
WLXM-1250 |
Capacity |
2~4 t/h |
6~8t/h |
8~11t/h |
13~18 t/h |
18~25t/h |
25~35 t/h |
40~70 t/h |
Annually capacity |
10,000 t/h |
20,000 t/h |
30,0t00 t/h |
50,000 t/h |
70,000 t/h |
100,000 t/h |
200,000 t/h |
Dia. Of rollers |
360mm |
400mm |
500 |
650mm |
750 |
850mm |
1250mm |
Width of rollers |
250 |
280 |
300 |
336 |
400 |
500 |
650 |
Motor power |
7.5 kw |
11~15kw |
18.5~22kw |
20~30 kw |
45kw |
75 kw |
130 kw |
Rotation speed |
18 r/min. |
15r/min. |
13r/min |
13 r/min. |
13r/min |
10 r/min. |
10 r/min. |
Shapes of briquettes |
Oval or pillow or square or customized |
||||||
Sizes of briquettes |
As your specific requirement ( usually 20~80mm ) |
||||||
If you need this briquette machine / recycle powder coal machine, please let us know the raw material content, raw material size, raw material moisture and your requirement on capacity. Our professional engineer will help to recommend the most suitable type after we get detailed information from you.
FAQ of the powder coal briquette machine
Available shapes of the powder coal briquette machine
Square, oval, pillow, ball type, or customized .
Moisture demands of the powder coal briquette machine : usually 8%-12% .
Feeding Sizes demands of the powder coal briquette machine : less than 5mm in general .
With binder or not ?
With this type powder coal briquette machine ,it’s up to you, with binder can enhance the cold
strength and thermal intensity , if you do not need, just neglect the binder .
With dryer or not ?
First, if the raw material is too wet (raw moisture more than 45%), then should dry the wet
material before to be formed ; second, the final briquettes to be dry or not, it’s up to you as well. If the working place has not much strict requirements to the briquette’s moisture, or the devicecan handle the briquette directly, then there can without briquettes mesh belt dryer .
Our service of the powder coal briquette machine
1. If any interest on our briquette machine, please feel free to contact me and let me know your requirement on capacity and material size.
2. We are professional machine manufacturer, we will help to choose the most suitable machine for you.
3. Whole plant design and drawings are free after set order.
4. Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
5. If you need, we will dispatch professional engineer for installation, trail and worker training.
Company brief introduction of the powder coal briquette machine
Henan province zhengzhou city weilite machinery plant is the professional manufacture for making different kinds powder material briquette machine for recycle powder coal and other waste material, importing international advanced technical, use and improve the newest design conceptof different machines to make more high efficiency, power saving and durable shape briquetting machine .
If any interest to our powder coal briquette machine / powder coal ball forming machine, please contact me for more details.
