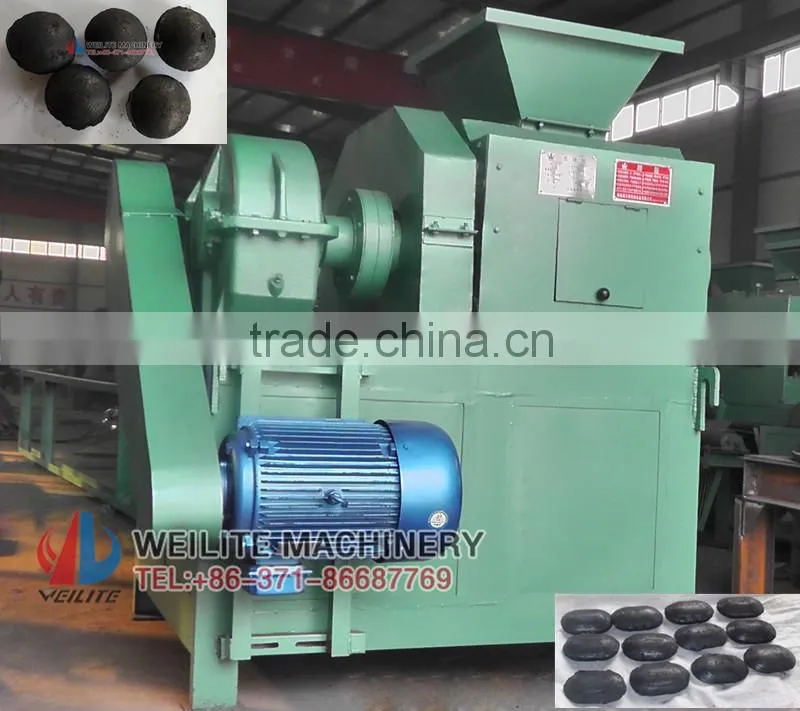

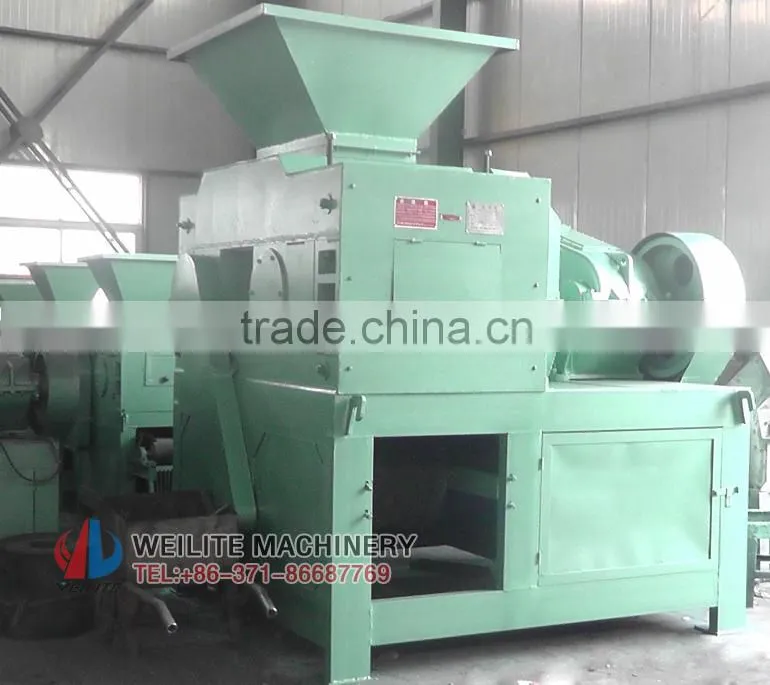

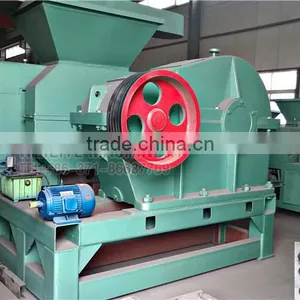

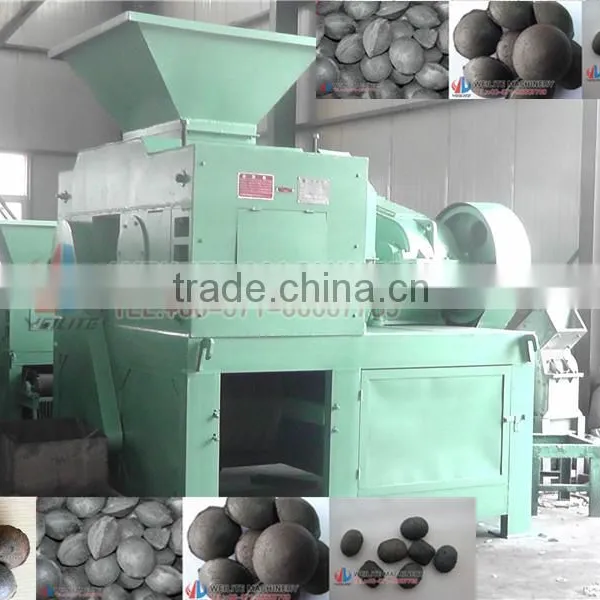

iron ore briquette machine
This type iron ore briquette machine also can be called mineral powder briquette machine , suit for different dust, like coal,charcoal, iron ore, coke, brown coal etc .

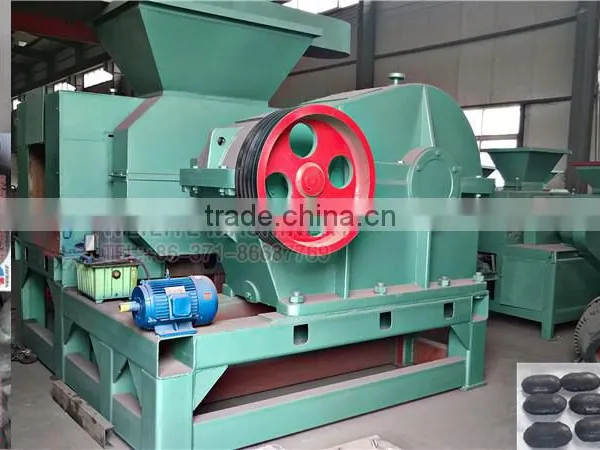

THE WORKING PRINCIPLE OF THE IRON ORE BRIQUETTE MACHINE

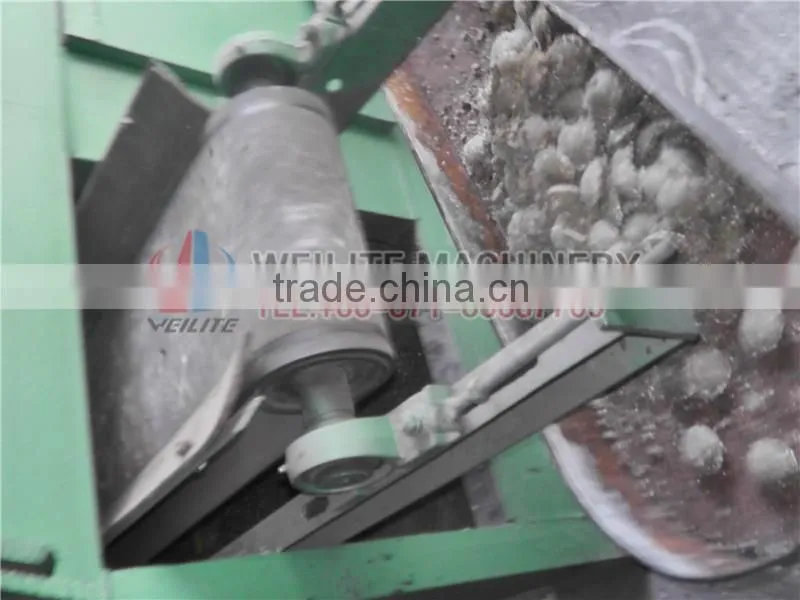

When working, the belt, to the reducer, reducer via the coupling to the driving shaft, a pair of open gear,guarantee two roller synchronous (constant velocity reverse) material storage bin by quantitative equipment evenly into the molding hopper, the unit forming pressure material from small to large, reached a maximum value at the center line of the roller at the molding pressure, material through the line, molding pressure diminishes rapidly make the material into the ball/briquettes smoothly off, off ball/briquettes .

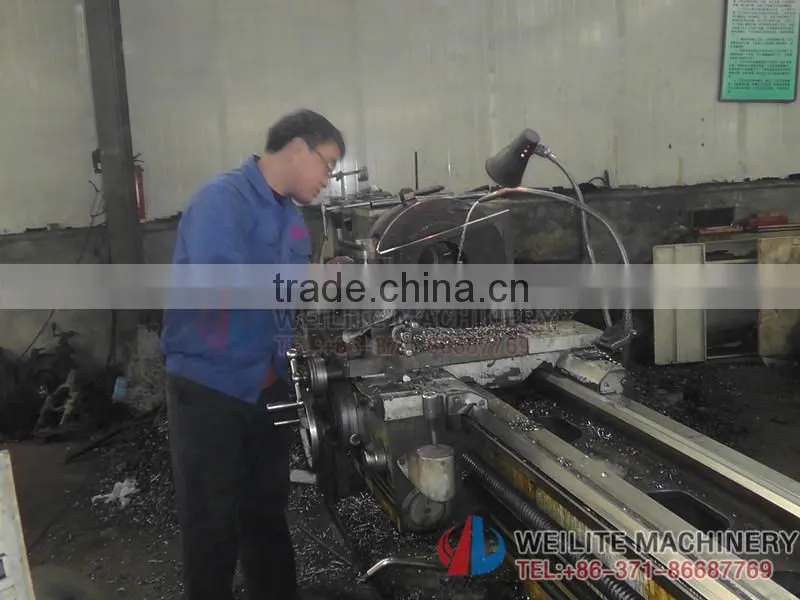

Our worker is making the parts of the iron ore briquette machine in the workshop
Main technology parameter for the iron ore briquette machine
Model |
WLXM-360 |
WLXM-400 |
WLXM-500 |
WLXM-650 |
WLXM-750 |
WLXM-850 |
WLXM-1250 |
Capacity |
2~4 t/h |
6~8t/h |
8~11t/h |
13~18 t/h |
18~25t/h |
25~35 t/h |
40~70 t/h |
Annually capacity |
10,000 t/h |
20,000 t/h |
30,0t00 t/h |
50,000 t/h |
70,000 t/h |
100,000 t/h |
200,000 t/h |
Dia. Of rollers |
360mm |
400mm |
500 |
650mm |
750 |
850mm |
1250mm |
Width of rollers |
250 |
280 |
300 |
336 |
400 |
500 |
650 |
Motor power |
7.5 kw |
11~15kw |
18.5~22kw |
20~30 kw |
45kw |
75 kw |
130 kw |
Rotation speed |
18 r/min. |
15r/min. |
13r/min |
13 r/min. |
13r/min |
10 r/min. |
10 r/min. |

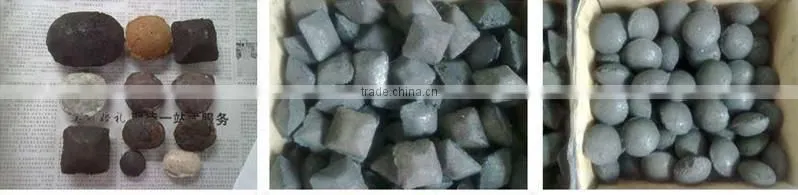

Shapes of briquettes |
Oval or pillow or square or customized |
||||||
Sizes of briquettes |
As your specific requirement ( usually 20~80mm ) |
||||||

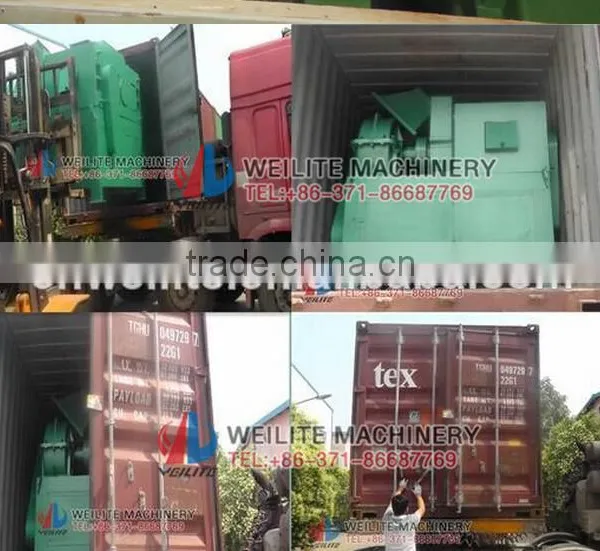

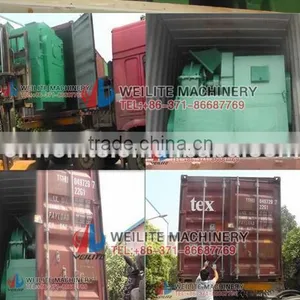

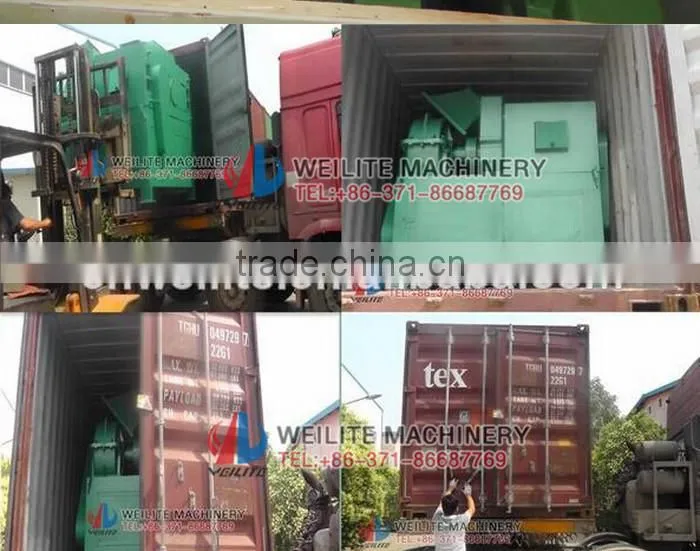

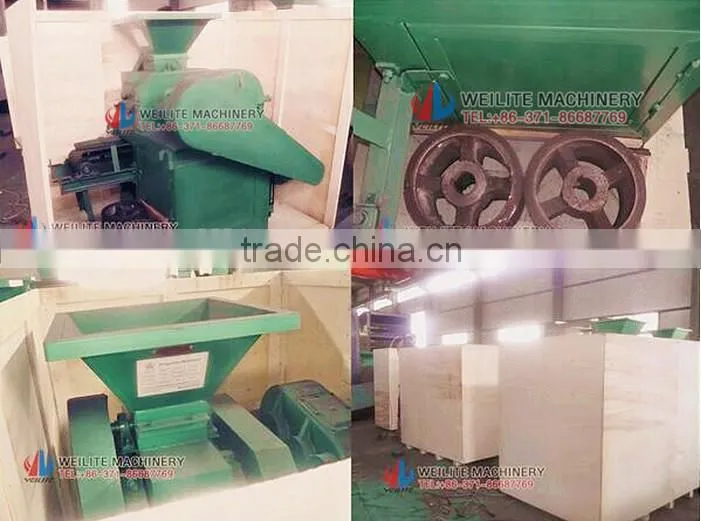

One machine with wooden case, if more than one set or complete production line always be shipped by container .
1.All the machines will be checked in good condition before delivery.
2.7*24hours online solve our global Client question.
3.Train operating personnel free of charge.
4.We provide CD or Remote video to help you install the machine.
5. Warranty:1 year.

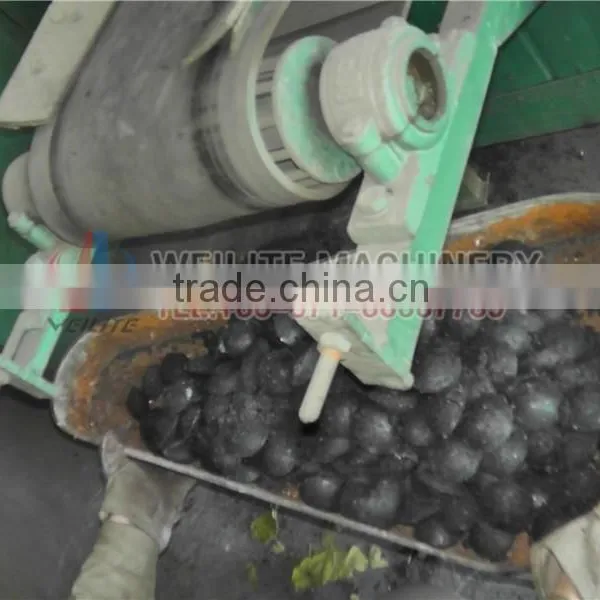

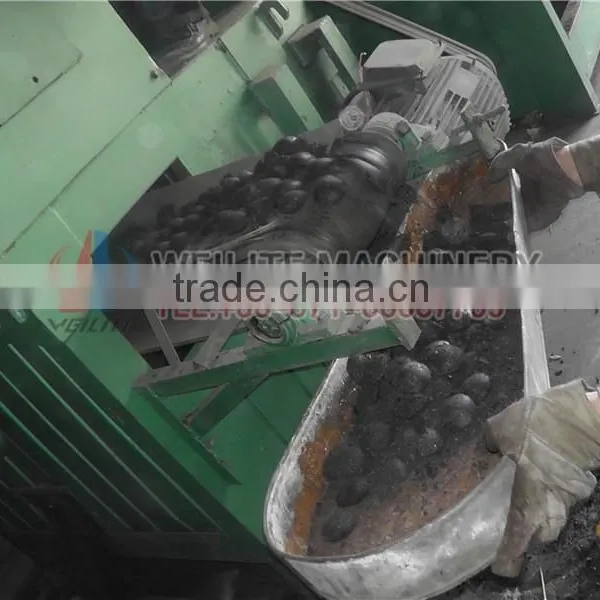

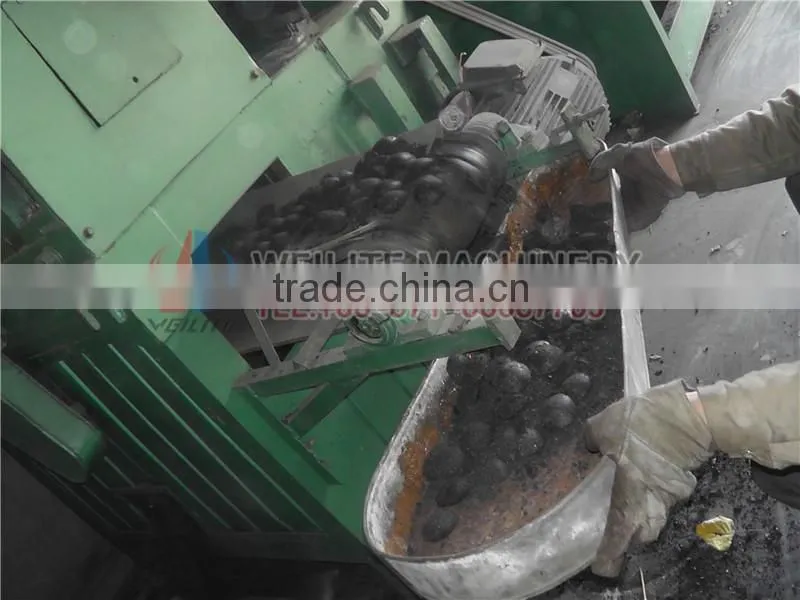

Test the machine for customer, we support the customer send us some material to test the machine and check the briquette,
Our company are the professional manufacture for making different kinds briquette machine over 30years for serving oversea market, all the support machine also made by ourselves, if any questions or technical confusion, very welcome to contact us at anytime please, we'll give response as fast as possible .
1. what's the material suit for this iron ore briquette machine ?
almost all kinds of mineral powder, iron ore dust always be shaped by this briquette machine for smelting

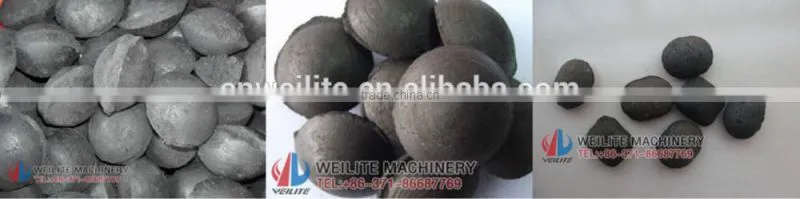

2. what's the size of the briquette ?
30-60mm in general, can be customized as well .

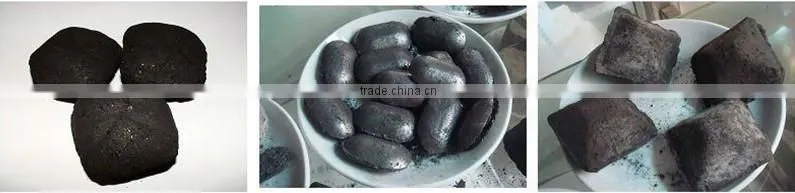

3. what's the shape of the briquette?
It could be oval, pillow, square shape, etc . We can design the shape as customer's requirements .
4. how about the support machine ?

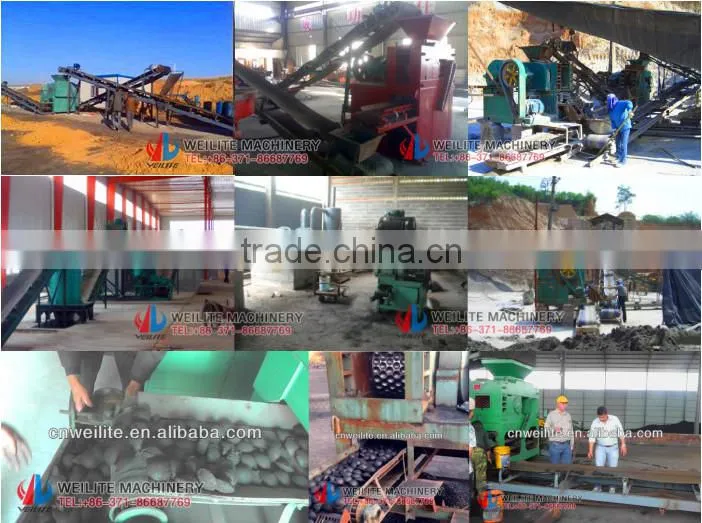

We also produce all the auxiliary equipment , like, crusher, mixer, conveyor, dryer ,etc, for briquette making production line . depend on different material and capacity we'll give different program with all the technical details very soon .
