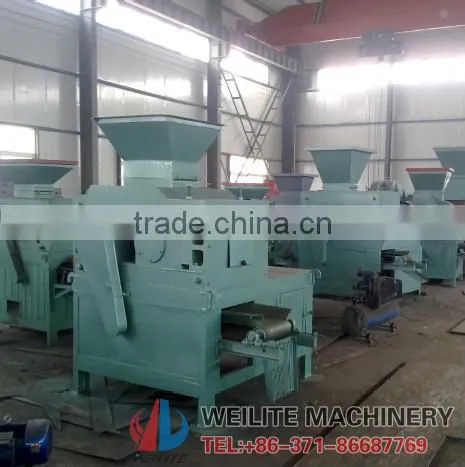

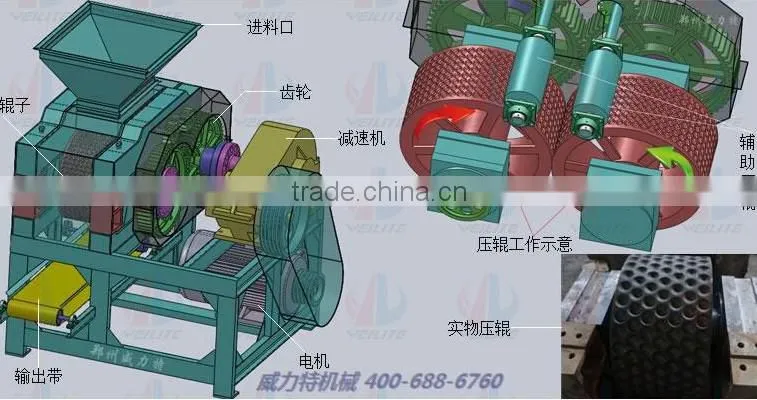

Powder briquette making machine
Features of the powder briquette making machine
a Mature technology design ; durable quality ;
b Simple structure but excellent making effect ;
c Easy to operate, small in size, power saving ;
d Can adapt continuous produce with large capacity / output
This type powder briquette making machine also used as coal briquette making machine, peat briquette machine, suit for many kinds of powder material .
Suitable material for the powder briquette making machine
Charcoal powder, coal , coal powder, charcoal pulver ,carbon powder, bamboo carbon powder, coke powder, shisha
powder, graphite powder, coconut powder, ZaoMu Carbon, LAN carbon powder, active carbon ,
etc .
please note : Also, the waste material from the wood , or straw, crop straw, biomass material is available as
well, but we should use carbonization first to char the biomass raw material, then, put into the
briquette machine to be shaped .
Application area of the powder briquette making machine
Refractory industry, power plant, metallurgy industry, chemical, energy, transportation, heating,
animal husbandry, industry, agriculture, barbecue, and other fields.
Working types of the powder briquette making machine

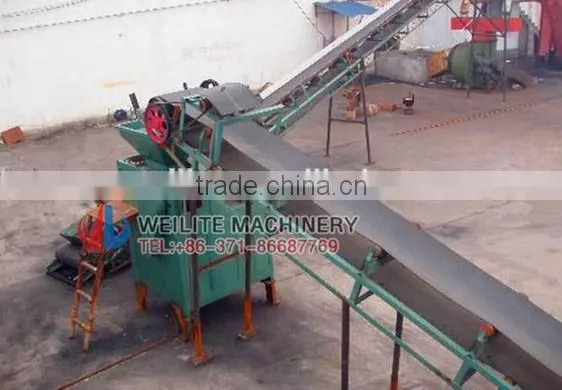

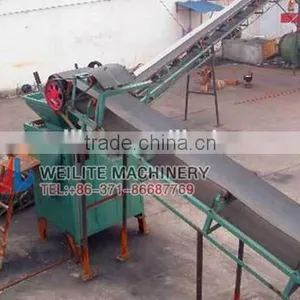

The machine is suitable for a single job and largescale assembly production line , also can adapt
to the liquidity operations.
Main technology parameter for the powder briquette making machine
Model |
WLXM-360 |
WLXM-400 |
WLXM-500 |
WLXM-650 |
WLXM-750 |
WLXM-850 |
WLXM-1250 |
Capacity |
2~4 t/h |
6~8t/h |
8~11t/h |
13~18 t/h |
18~25t/h |
25~35 t/h |
40~70 t/h |
Annually capacity |
10,000 t/h |
20,000 t/h |
30,0t00 t/h |
50,000 t/h |
70,000 t/h |
100,000 t/h |
200,000 t/h |

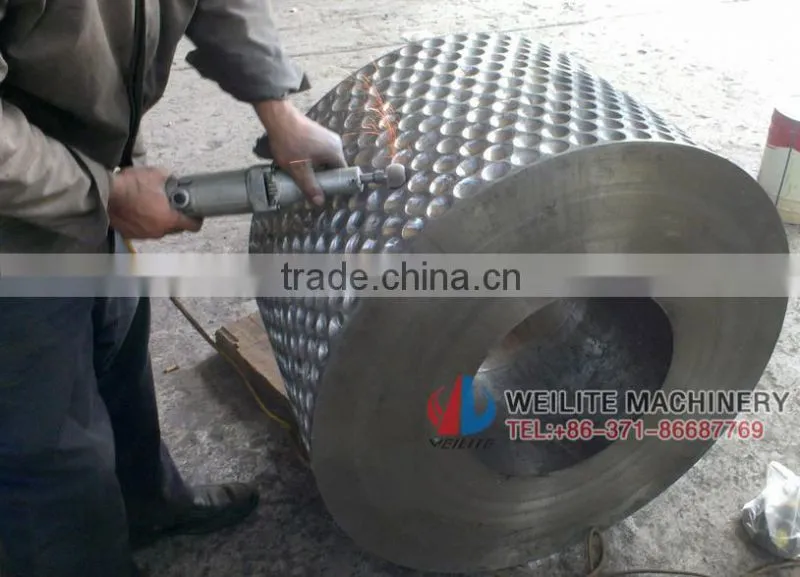

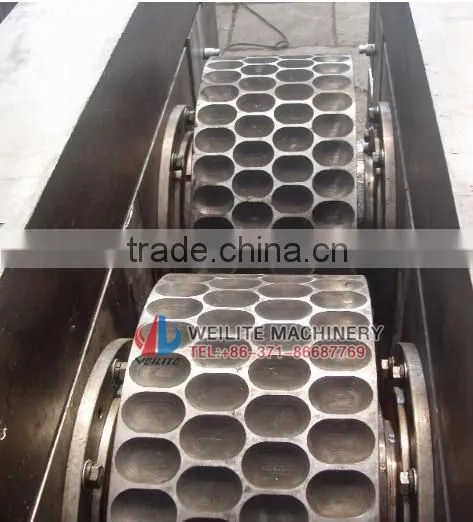

Dia. Of rollers |
360mm |
400mm |
500 |
650mm |
750 |
850mm |
1250mm |
Width of rollers |
250 |
280 |
300 |
336 |
400 |
500 |
650 |
Motor power |
7.5 kw |
11~15kw |
18.5~22kw |
20~30 kw |
45kw |
75 kw |
130 kw |
Rotation speed |
18 r/min. |
15r/min. |
13r/min |
13 r/min. |
13r/min |
10 r/min. |
10 r/min. |

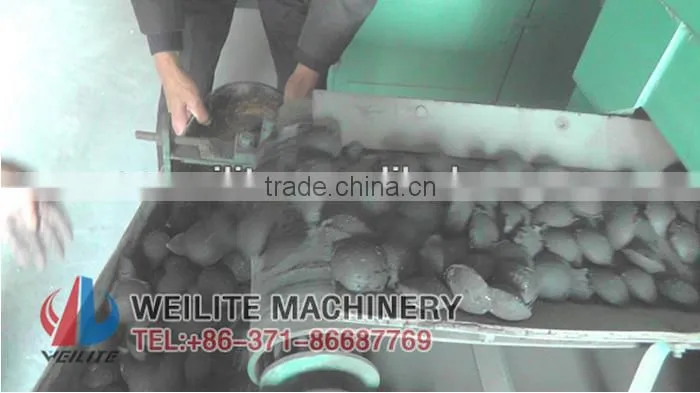

Shapes of briquettes |
Oval or pillow or square or customized |
||||||
Sizes of briquettes |
As your specific requirement ( usually 20~80mm ) |
||||||

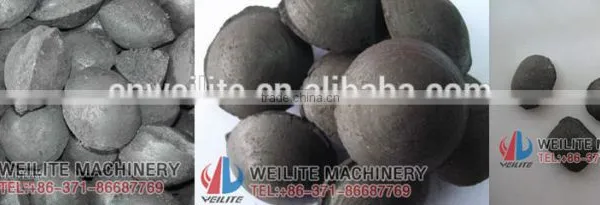

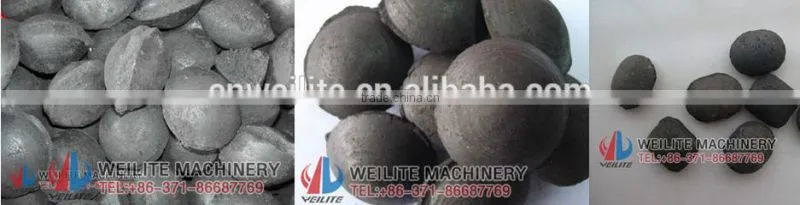

Available shapes of the coal powder briquette making machine
Square, oval, pillow, ball type, or customized .
Moisture demands of the coal briquetting machine : usually 8%-12% .
Sizes demands of the coal briquetting machine : less than 5mm in general .
With binder or not ?
With this type coal briquetting machine ,it’s up to you, with binder can enhance the cold
strength and thermal intensity , if you do not need, just neglect the binder .
With dryer or not ?
First, if the raw material is too wet (raw moisture more than 45%), then should dry the wet
material before to be formed ; second, the final briquettes to be dry or not, it’s up to you as well.
If the working place has not much strict requirements to the briquette’s moisture, or the device
can handle the briquette directly, then there can without briquettes mesh belt dryer .
1.All the machines will be checked in good condition before delivery.
2.7*24hours online solve our global Client question.
3.Train operating personnel free of charge.
4.We provide CD or Remote video to help you install the machine.
5. Warranty:1 year.
Any questions please feel free to contact us, or do not find suitable informations about the coal briquetting machine in the above shows, then contact me by email , i'll give the response asap, thank you very much for your consideration ,I am Ms.Ashley Gao , skype: ashley weilite
