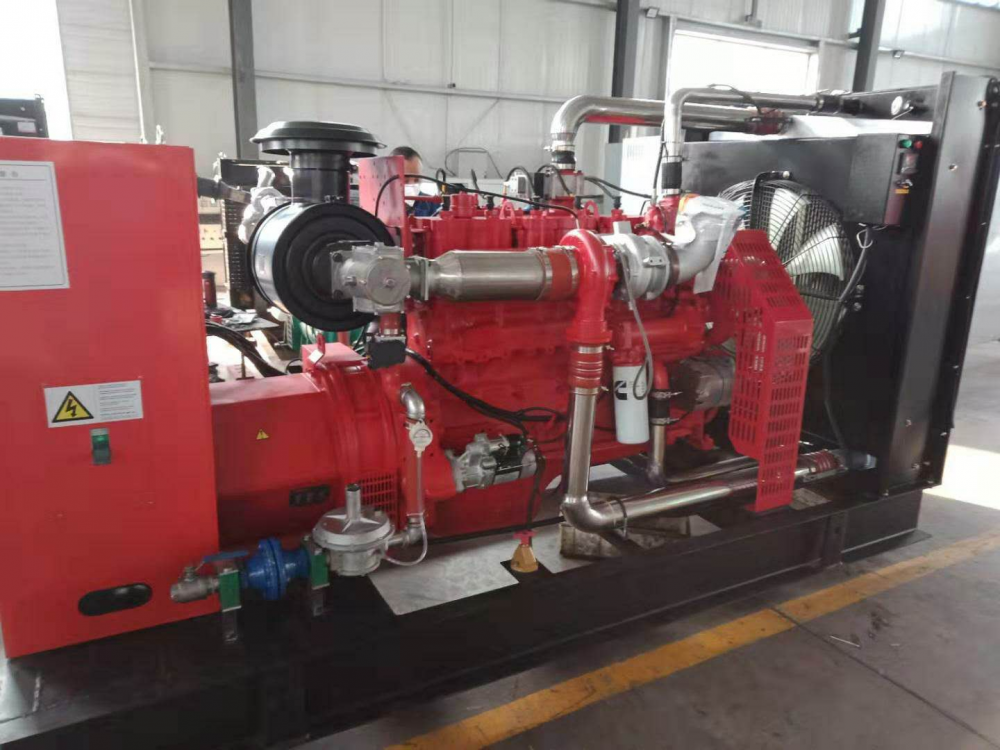

China Factory Wholesale 500KW Industrial Electric Silent Power Diesel Generator

Unit model

Reserve power (kW)

Engine brand

Engine model

Generator brand

Generator model

KMS-500

550

Cummins power

KMS-500

Cummins power

TFW-500

scope of supply

Engine, generator, shock absorber, (AMF) control panel, muffler, exhaust pipe, factory-related technical documents, certificates, batteries, wearing parts, consumables and simple packaging.

Unit function

The generator set is equipped with AMF control panel and large-screen LCD display, which can detect and display the electrical parameters and non-electrical parameters of the generator set, such as power generation (three-phase voltage, three-phase current, frequency, power, power factor, accumulated electric energy, etc.), engine parameters (water temperature, oil pressure, rotating speed, etc.), battery voltage, running time, accumulated starting times and other parameters.

Protection function: The control system has alarm and protection functions for abnormal power generation (high voltage/low voltage, high frequency/low voltage, overload), high water temperature, low oil pressure, overspeed, low battery voltage, overcurrent and charging failure.

99 groups of historical records can be saved circularly, and can be queried on site.

Gas generator set data

model

KMS-500

starting system

24V electric start-up

Power factor

COSφ=0.8 (lag)

Output voltage (v)

400

Connection mode

Three-phase four-wire "Y"

Frequency (HZ)

50

Reserve power (kW)

550

Rated current (a)

900

Engine data

model

KMS-500

Maximum power (kW)

550

Rated speed (rpm)

1000

Rated power (kW)

500

Cylinder diameter/stroke (mm)

190/155

Cylinder arrangement

12-cylinder V type

Gas consumption (m³/kw.h)

0.3

lubricating system

forced lubricating

Air intake mode

Supercharged intercooling

Cooling mode

Closed cooling

Compression ratio

10．5：1

Displacement (l)

30

Requirements for fuel (percentage is volume percentage)

Fuel type

natural gas

Methane content CH4(%)

＞70

Carbon dioxide content (%)

≤30

Nitrogen content (%)

≤5

Hydrogen content (%)

≤1

Oxygen (%)

≤0.4

Sulfur content (ppm)

≤25

Mixed gas formation mode

preblend

Gas source pressure (kPa)

2.7-4

Gas calorific value (MJ/m)

≥20.8

Generator data

Generator brand

Cummins power

model

TFW-500

Rated capacity (KVA)

625

Excitation mode

brushless

Insulation grade

H

the protection grades

IP22

Voltage adjustment range

≥±5%

Steady-state voltage regulation rate

≤±1%

Efficiency (100% load)

91．7%

Voltage control mode

AVR

Control cabinet data

Control module brand

SMARTGEN

Performance and characteristics of control cabinet

Large screen liquid crystal (LCD) display, optional Chinese and English display, touch button operation.

It can monitor and display voltage, frequency, power, power factor, speed, oil pressure, water temperature, battery voltage and running time in real time.

It has perfect functions such as fault display protection. The automatic start and stop of the generator set can be controlled by the remote power-on signal.
