high output and low consumption wood waste charcoal briquette machine
- 300 Set / Sets per Month
- qingdao
- Credit Card PayPal
- Good quality burning fuel briquette forming machine
- Full automatic wood/tree debarking machine
- biomass wood briquette press machine/machine to make wood briquettes/wood briquette press machine
- High quality chipper machine for coconut 008613673685830
- Economical and large capacity mechanical dryers for rice
- New type and professional souvlaki skewer machine
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | TZ |
Model Number: | TZ-1 | Voltage: | 380/220v | Power(W): | 15kw |
Weight: | 400kg | Dimension(L*W*H): | 1650*600*1260mm | Certification: | CE |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
export box
Product Description
high output and low consumption wood waste charcoal briquette machine
Contact:Cathy
Mobile/Whatsapp/Wechat:+86 13673629307
Skype:taizy2031
QQ:2419066501
Tel:0086-371-86660712
Fax:0086-371-86660713
Crusher → drying machine → briquette machine → sawdust briquette → carbonizer machine → charcoal
Brief Introduction
Briquette machine wood sawdust is mainly used for pressing the organic powdery material into biomass briquettes under high pressure. It is a kind of enviroment protect and energy-saving product which can turn "organic waste" into "wealth". According to the size of moulds, our machines can be devided into 50, 60, 70, 80, etc, several different types.
Our wood briquette machine can make wood briquette of different diameters and different shapes from sawdust, wood branches, biomass, agro-forest wastes and so on. This is the most important step to make BBQ Charcoal.
raw material request
Sawdust size: 3-5mm
Sawdust moisture: 8%-12%
Applicable Raw Material
1. Wood waste, like: sawdust, wood scraps, branches, leaves
2. Agricultural waste, like: rice husk, corn cob, wheat straw, peanut shell
3. Fruit shell, like: coconut shell, nutshell
Finally briquette
1) According to our machine, the final briquette diameter can be 40mm/45mm/50mm/60mm/70mm/80mm. Or just according to your requirements. The shapes can be round, square, hexagon, quincunx, etc.
2) The length is also adjustable, and we have also the automatic cutting machine for you!
Outstanding Features
1) Propeller and main components made by special wear-resistant materials.
2) With the characters of high output, low consumption, compact and durable.
3) The output, briquette density, powder consumption, wear-resisting degree,etc, ultiterm performance index is in leading level.
4) High calorific value: it increases more than 20% than general wood.
details specifications
Model No. | TZB-1 | TZB-2 | TZB-3 |
Output | 150-200kg/h | 200-250kg/h | 260-350kg/h |
Main Motor Power | 15kw | 18.5kw | 18.5kw |
Electrical Heater Power | 3X1.5kw | 3X2kw | 3X2kw |
Dia. of Briquettes | Ø40 Ø45 Ø50 mm | Ø60 Ø70 mm | Ø70 Ø80 mm |
Density of Briquettes | 1.2-1.4T/CBM |
we can supply you the full line to make wood charcoal:
1.you should make sure the size of your wood be 3-5mm,or you will need the crusher;
2.you should make sure the humidity be under 12%,or you will need the dryer;
3.we can provide wood briquette machine,tell me how many kgs/h you want;
4.If you want to get wood charcoal,you will also need the carbonization oven.

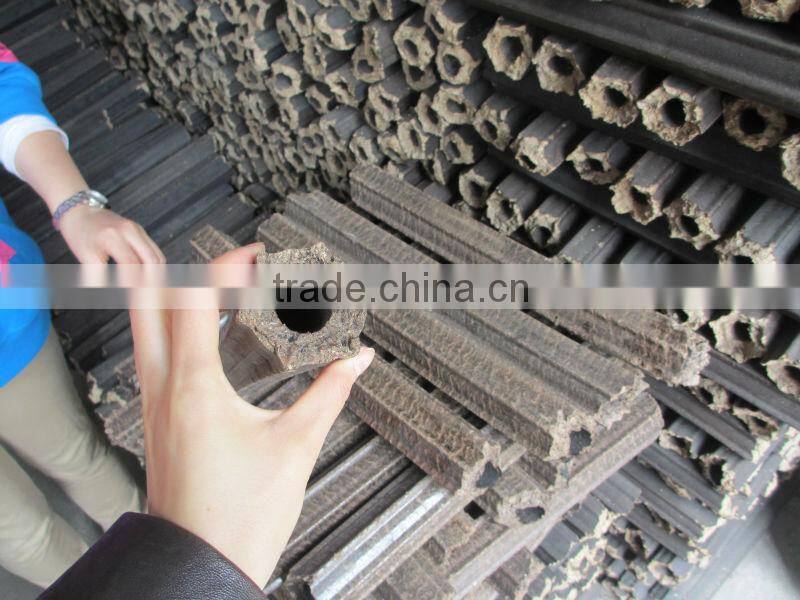

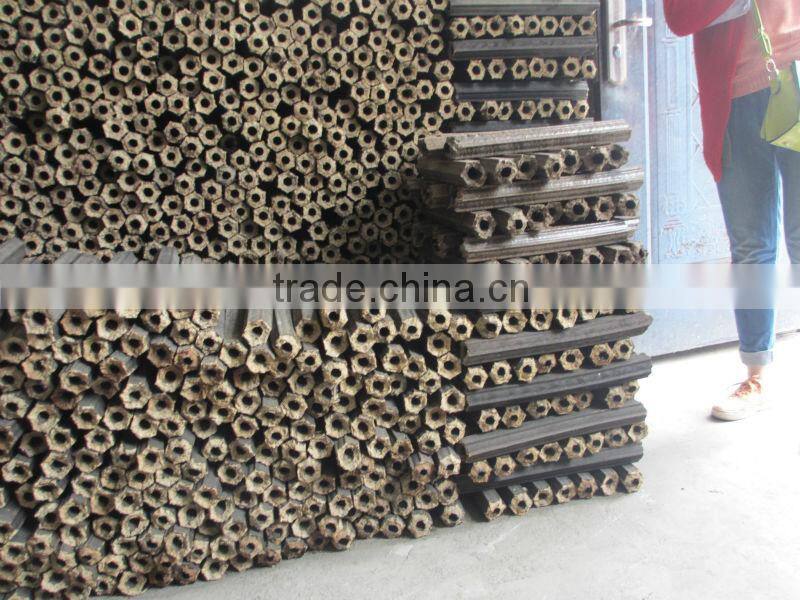

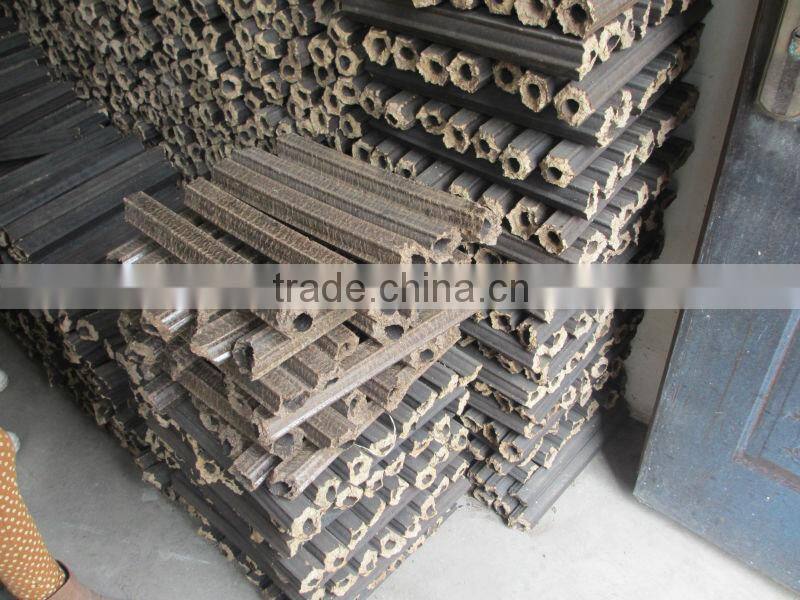

finished briquette
purchase process
Any questions,please contact me!
