Short time drying saw dust dryer
Brief introduction of saw dust dryer
1.Saw dust dryer refers to send the wet powder sawdust to the drying cylinder continuously
by the screw conveyor. In the transmission and dispersion of high speed heat flow, make
the wet material moisture evaporate, than get the dry powder or dry granular products.
2. The saw dust in the saw dust dryer under the influence of spray torch and rotary cylinder,
hot wind and the material touch thoroughly, complete dry. Also suit for drying fiber material ,its
simple structure, convenient to use welcomed by the masses of customers.

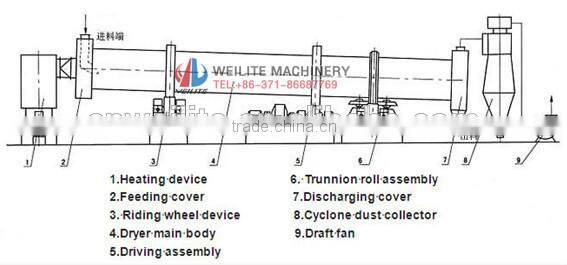

Mainly parts of saw dust dryer
Mainly consisted by the air heater, feeder, air drying tube, cyclone separator,draught fan, etc.
Saw dust dryer Working Theory

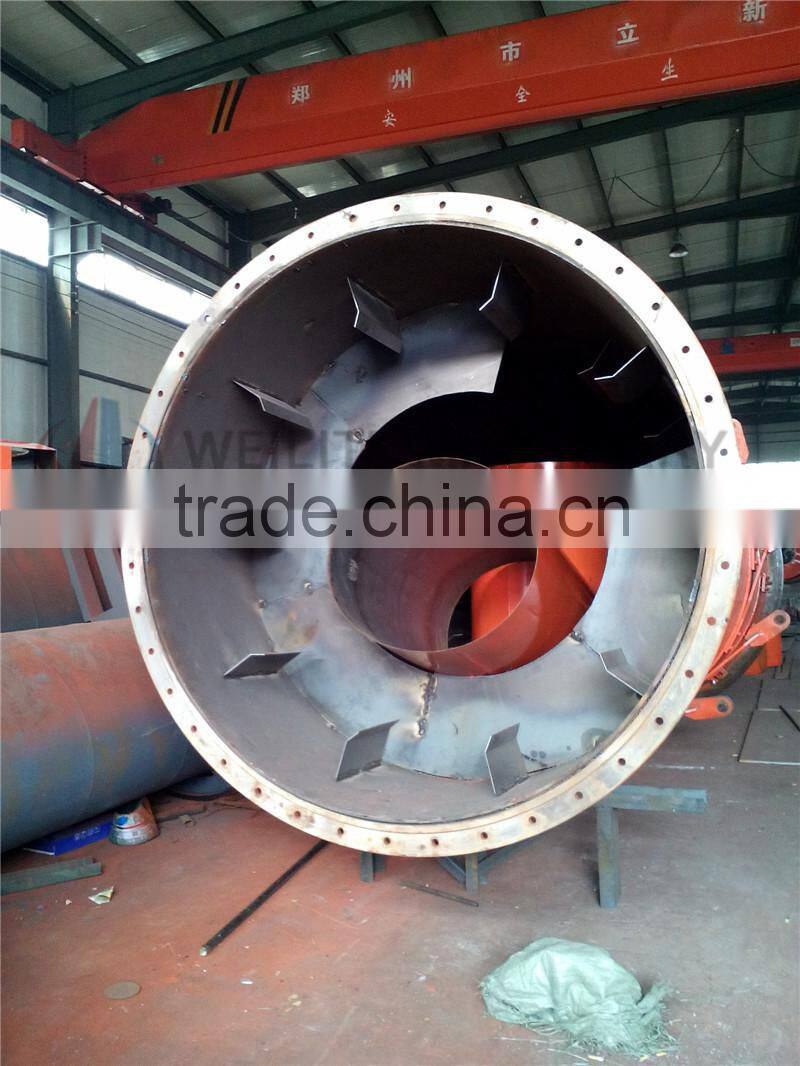

wood material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by
aseries of internal lifting flight lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. cyclone dryer also can be widely used to dry other lump and powder materials, and it is simple to be operated.
The features of saw dust dryer
1, large intensity of drying, because the highly dispersed material in the air, so the drying effect of surface area of particles is extremely great.
2, short drying time, moisture is controlled.
3, new type sawdust dryer has simple structure, cover small floor area, easy to build and repair.
4, large capacity, high thermal efficiency. When drying the non-combined water, the thermal
efficiency can reach up to 60%.
Which kind of material suitable?
Weilite brand new design sawdust dryer is widely used in straw briquette fuel, charcoal plant
production line, sawdust pellet fuel, sawdust briquetting, farming and animal husbandry and other industries. Such as drying cornstalk, soybean straw, cotton stalks, wheat straw, sorghum stalk, wood sawdust, wood shavings, sawdust, ginkgo leaf and mulberry leaves just like this kind of agricultural fiber materials.

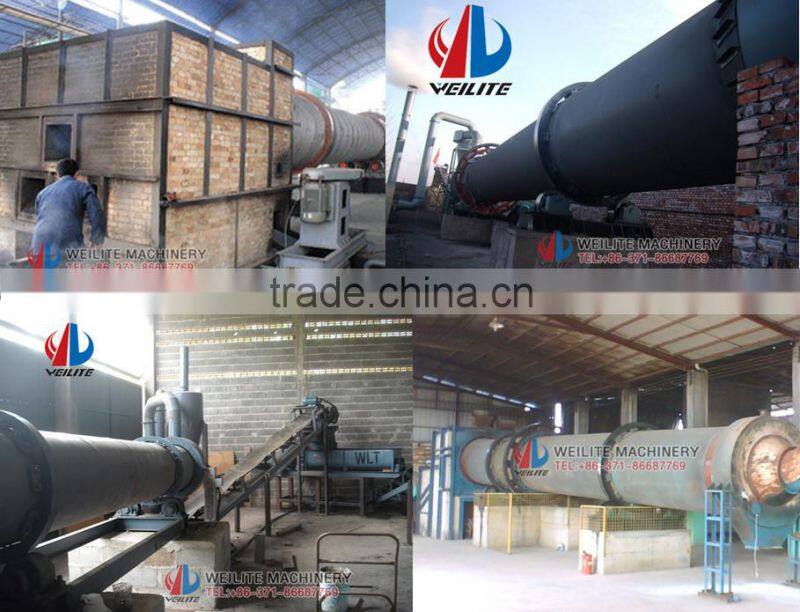

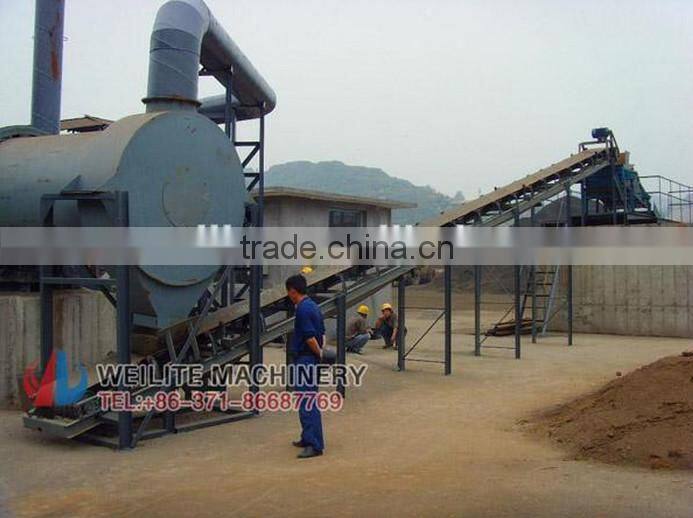

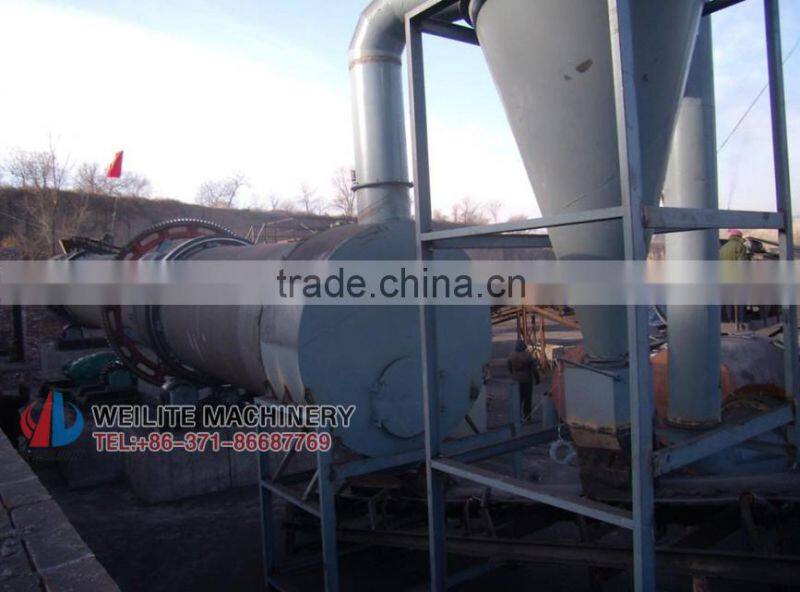

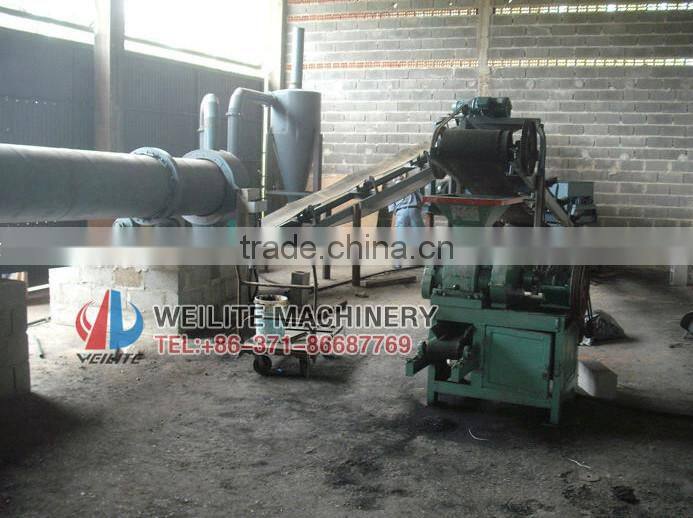

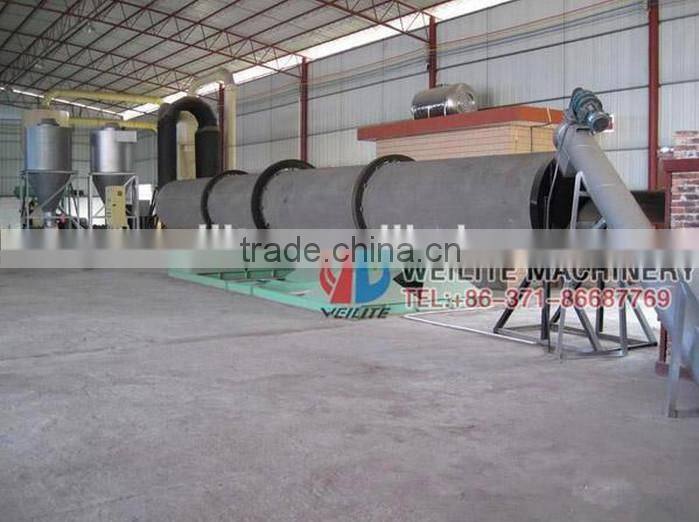

Working place of our saw dust dryer
Technology parameters of sawdust dryer/drying sawdust machine
Model (mm) |
Inclination (%) |
Rotate speed (r/min) |
Air inlet temperature (°C) |
Power (KW) |
Production capacity(t/h) |
Weight (t) |
Φ600x6000 |
3-5 |
3-8 |
≤700 |
3 |
0.5-1.5 |
2.9 |
Φ800x8000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.0 |
3.5 |
Φ800x10000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.5 |
4.5 |
Φ1000x10000 |
3-5 |
3-8 |
≤700 |
5.5 |
1.0-3.5 |
5.6 |
Φ1200x10000 |
3-5 |
3-8 |
≤700 |
7.5 |
1.8-5 |
14.5 |
Φ1200x12000 |
3-5 |
3-8 |
≤700 |
11 |
2-6 |
14.8 |
Φ1500x12000 |
3-5 |
2-6 |
≤800 |
15 |
3.5-9 |
17.8 |
Φ1800x12000 |
3-5 |
2-6 |
≤800 |
18 |
5-12 |
25 |
Φ2200x12000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
6-15 |
33 |
Φ2200x18000 |
3-5 |
1.5-6 |
≤800 |
22 |
10-18 |
53.8 |
Φ2200x20000 |
3-5 |
1.5-6 |
≤800 |
30 |
12-20 |
56 |
Φ2400x20000 |
3-5 |
1.5-5 |
≤800 |
37 |
18-30 |
60 |
Φ3000x20000 |
3-5 |
1.5-5 |
≤800 |
55 |
25-35 |
78 |
Φ3000x25000 |
3-5 |
1.5-5 |
≤800 |
75 |
32-40 |
104.9 |
If intested in our saw dust dryer, kindly let us know the raw material, the size and initial moisture of the raw material, the feeding capacity per hour, then we'll recommend most suitable machine with technical data, pictures and best factory price very quickly , thank you so much for your consideration to our machine.

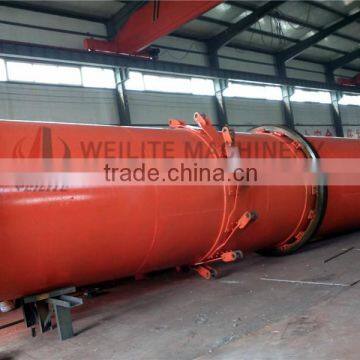

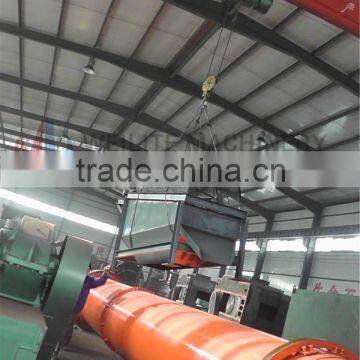

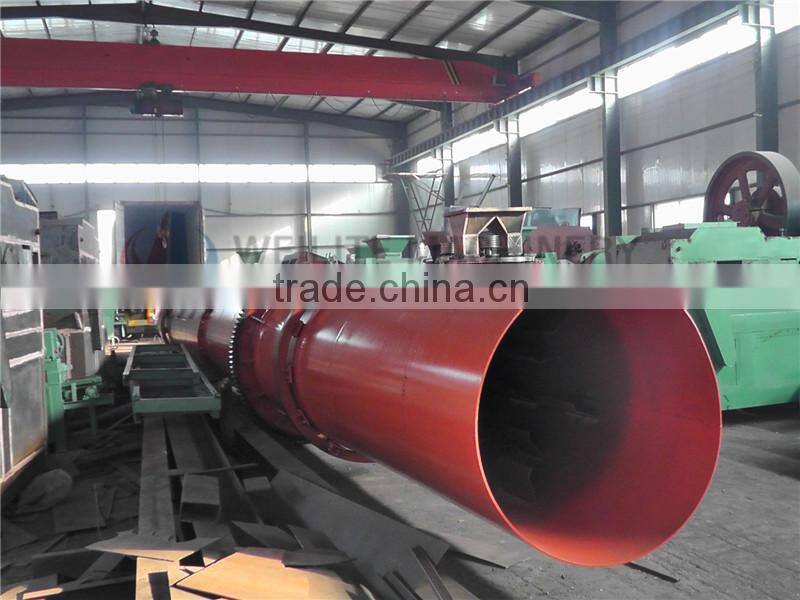

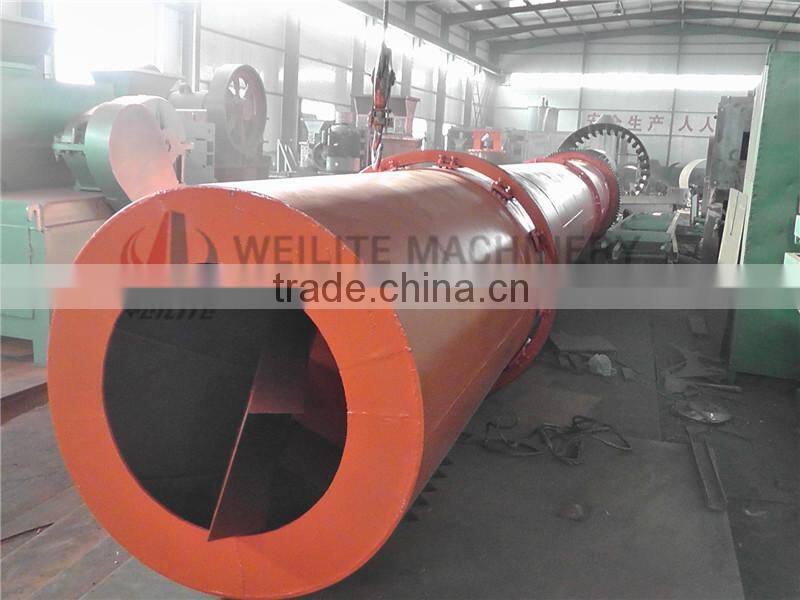

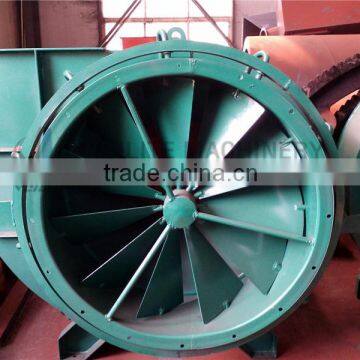

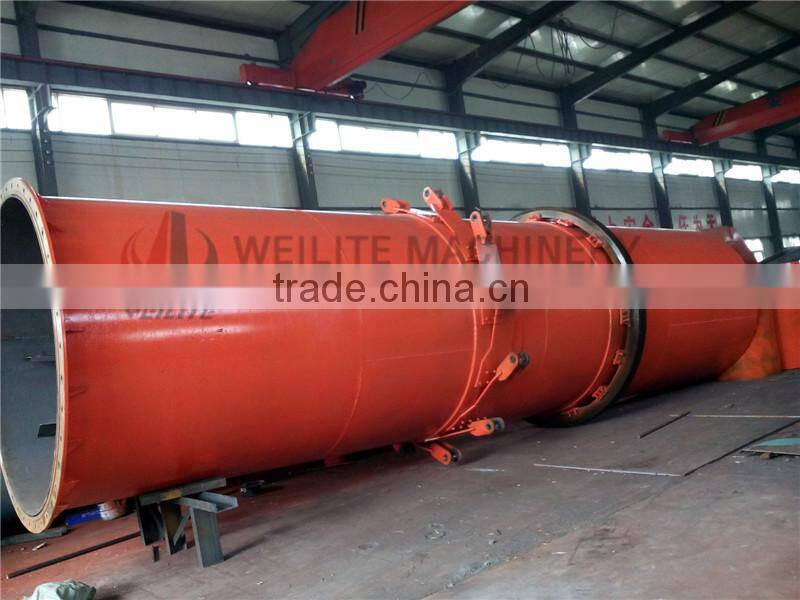

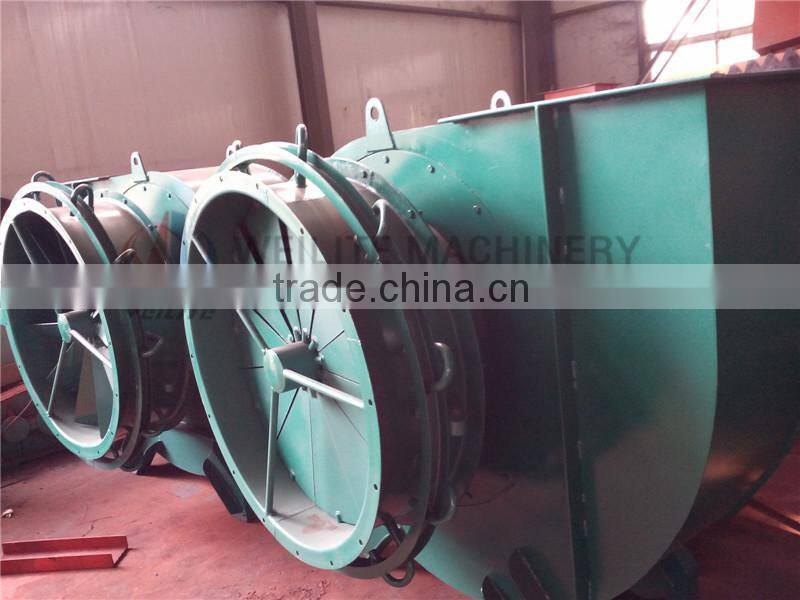

The saw dust dryer in the working shop and matched draught fan
Henan province zhengzhou city weilite machinery plant is the professional manufacture for making different kinds new type dryer for wood material / saw dust dryer, importing international
advanced technical, use and improve the newest design concept of different machines to make more high efficiency, power saving and durable dryer for woodchips .

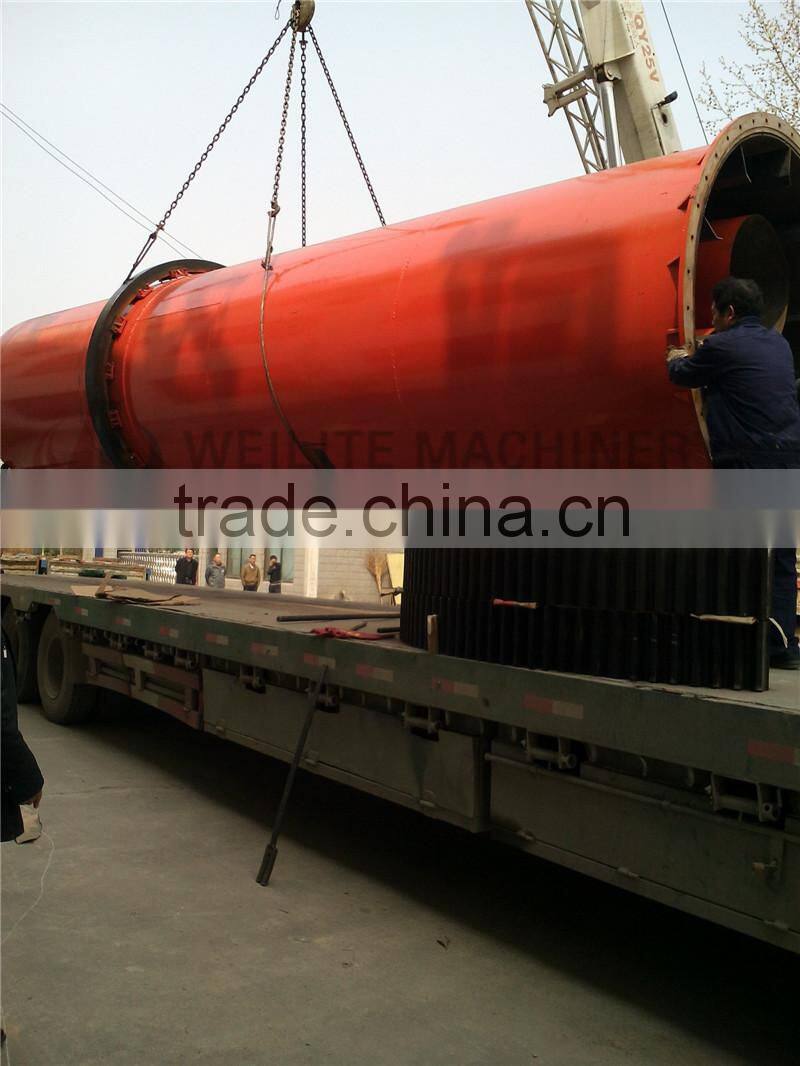

For saw dust dryer, cause it's size and shape, always be shipped with container - 20 feet, 40 feet, open top container, or special container .
Our service of dryer for woodchips / for wood material
1. If any interest on our saw dust dryer, please feel free to contact me and let me know your
requirement on capacity and material size.
2. We are professional saw dust dryer manufacturer, we will help to choose the most suitable
dryer for woodchips for you.
3. Whole plant design and drawings are free after set order.
4. Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
5. If you need, we will dispatch professional engineer for installation, trail and worker training.
If any interest to our dryer for wood material, please contact me for more details.
