High Efficiency Activate Carbon Fine Powder Mill
1.Activate Carbon Fine Powder Mill Description
The lactivate carbon fine powder mill is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with Mohs hardness below 9.3 and moisture content below 6%, such as: barite, calcite, dolomite, feldspar, talcum, marble, lime stone, kaolin, ceramic soap stone, calcium carbonate etc. It is widely used in mining, construction, chemical industry and metallurgy industry. The fineness of the finished product can be adjusted from 100 mesh to 325 mesh according to your requirement.

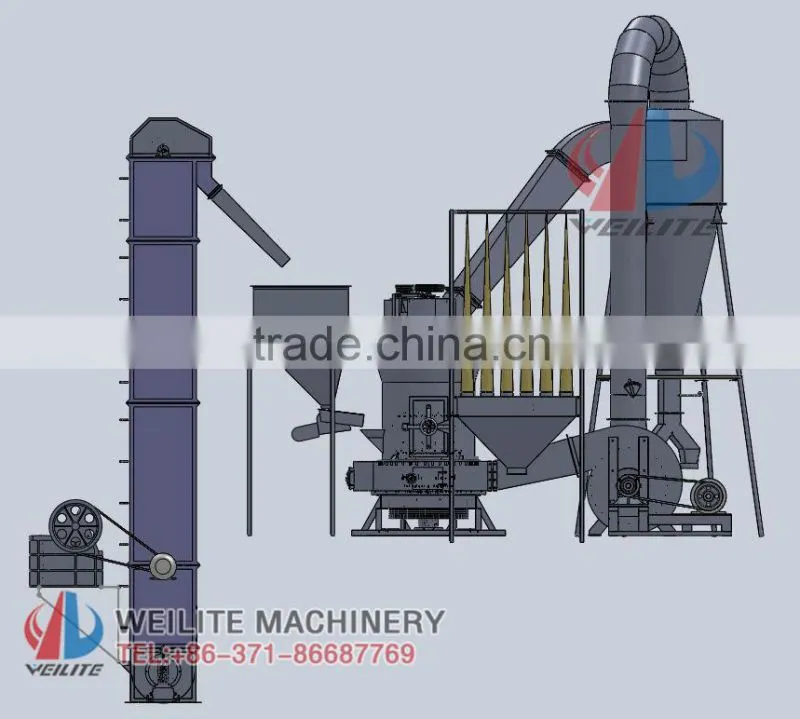

2. Activate Carbon Fine Powder Mill Flow Chart

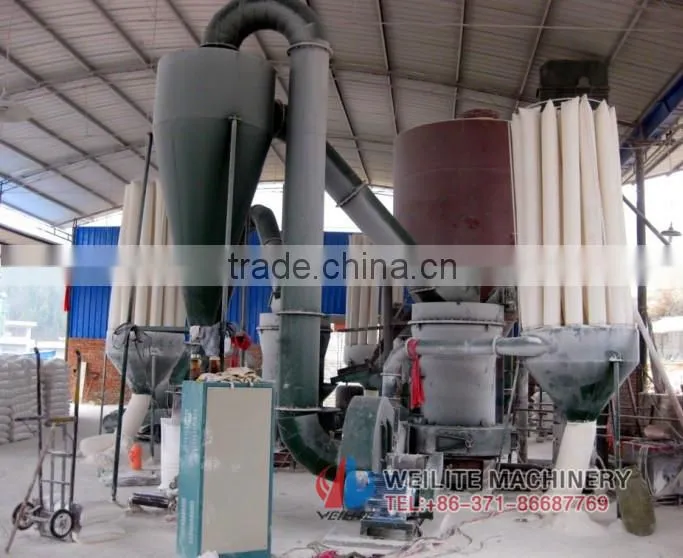

3. Activate Carbon Fine Powder Mill Installation Pictures
4.Main Techncial Parameters For Activate Carbon Fine Powder Mill
Model |
3R1410 |
3R1815 |
3R2115 |
3R2615 |
3R2715 |
3R3016 |
4R2715 |
4R3016 |
4R3216 |
5R4119 |
|
Max feeding size (mm) |
10-15 |
10-15 |
10-15 |
15-20 |
15-20 |
20-25 |
15-20 |
20-25 |
20-25 |
20-30 |
|
Output size (mesh) |
60-325 |
|||||||||
|
Shift output (t/8h) |
1-10 |
1.3-14 |
1.5-16 |
2-24 |
2-29 |
3-34 |
2-31 |
3-35 |
3-39 |
5-66 |
|
Roller diameter (mm) |
140 |
180 |
210 |
260 |
270 |
300 |
270 |
300 |
320 |
410 |
|
Main power (kw) |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
22 |
30 |
37 |
75 |
|
Blower power (kw) |
5.5 |
7.5 |
11 |
18.5 |
18.5 |
22 |
18.5 |
22 |
30 |
75 |
|
Analyzer power (kw) |
1.1 |
1.5 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
5.5 |
7.5 |

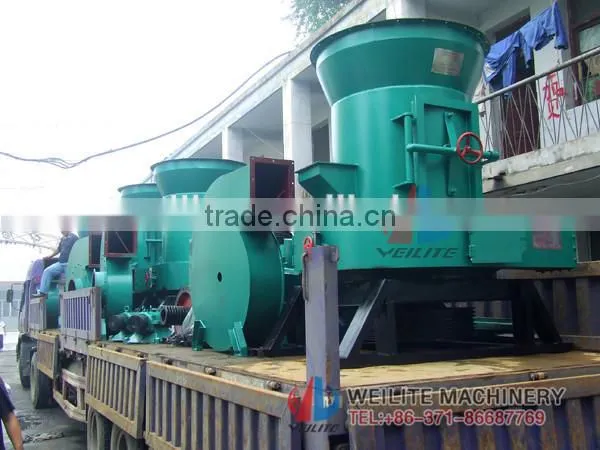

5. Activate Carbon Fine Powder Mill Packaging And Shipping
6.Our Services For Activate Carbon Fine Powder Mill
1)Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
7.About Us--Zhengzhou Weilite Machinery
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines such as crusher, ball mill, rotary dryer,belt dryer,briquette machine,mixer, etc. Website: /
8.FAQ About Activate Carbon Fine Powder Mill
1).What's the max. feeding material size for activate carbon fine powder mill?
- Answer:25mm.
2).What's the discharging material size?
- Answer:Discharging material size varies from 125mesh to 1250mesh.
3).What kind of material can be grinded by your activate carbon fine powder mill?
- Answer:Calcite, Bentonite, Clay, Cement Clinker, Coal,Gypsum,Steel Slag,Iron Ore,Chrome Ore,etc.
4).Do you provide production line design service?
- Answer:Yes, we are professional machine manufacturer. So we can provide production line design service.
Note:
If you need it, please let us know the raw material content, raw material size, raw material moisture and your requirement on capacity. Our professional engineer will help to recommend the most suitable type after we get detailed information from you.
Tel:+86-371-86687769
Call phone:+86 15639260527
Contact Name:Ms Sandy Shi
