closed circuit mill
1.Closed Circuit Mill Introduction
- Closed circuit mill is also called Ball mill,it is the key equipment for secondary crushing after first crushing, and it is one of the high-fineness milling machines widely used in industrial production.
- Closed circuit mill is suitable for grinding all kinds of ores and other materials, no matter wet grinding or dry grinding. Besides, it is mainly applied in many industries, such as ferrous&non-ferrous metal mine, building materials, chemical, electric power, coal, traffic, light industry, etc.
2.Closed Circuit Mill Working Principle
When the ball mill turning, there are centrifugal force and force of friction between grinding medium and the plate in the rotary body wall. And the grinding medium will rotate with rotary body to a certain height. Then it will fall freely under gravity, whereabouts of grinding medium, like a projectile impact the material at the bottom to smaller size. In addition, grinding medium also generates sliding and rolling in the rotary process. Thus there are schleifwirkung among grinding medium, plate and material. So we can get fine powder in the process.
3.Closed Circuit Mill Technical Data
| Type |
Shaft Rotation
Speed
(r/min) |
Ball Load (t) |
Feeding Size(mm) |
Discharging Size (mm) |
Capacity
(t/h)
|
Motor Power
(kw)
|
Weight(t) |
Φ900×1800 |
36 |
1.5 |
0-15 |
0.075-0.8 |
0.5-1.3 |
18.5 |
4.9 |
| Φ1200×2800 | 36 |
3.5 |
0-20 |
0.075-0.8 |
1.2-3.7 |
37 |
12.5 |
Φ1500×3500 |
29.7 |
7.5 | 0-25 | 0.075-0.8 |
3.3-8.8 |
75 |
16.5 |
Φ1830×3600 |
25.4 |
13 |
0-25 | 0.075-0.8 |
4-8 |
130 |
30 |
Φ2100×3600 |
23.7 |
18 |
0-25 | 0.075-0.8 |
4.5-33 |
180 |
37 |
Φ2400×3000 |
21 |
23 |
0-25 | 0.075-0.8 |
7-50 |
245 |
54 |
Φ2700×3600 |
20.7 |
10 |
≤25 |
0.075-0.8 |
12-75 |
400 |
86 |

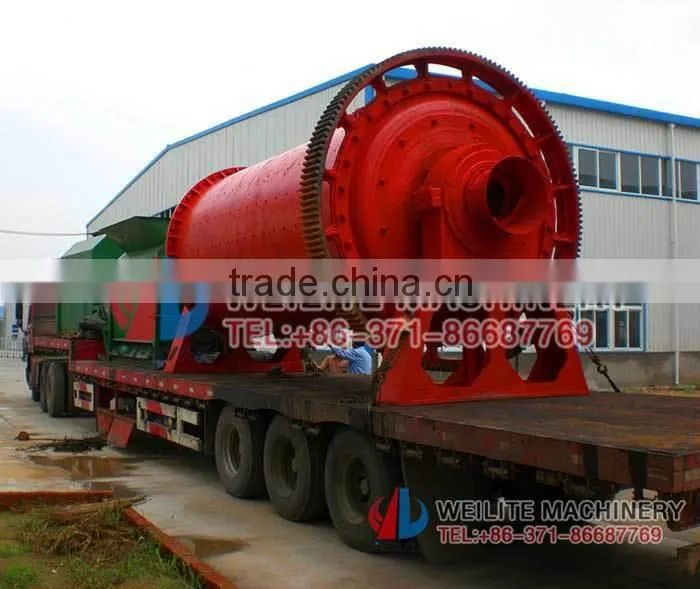

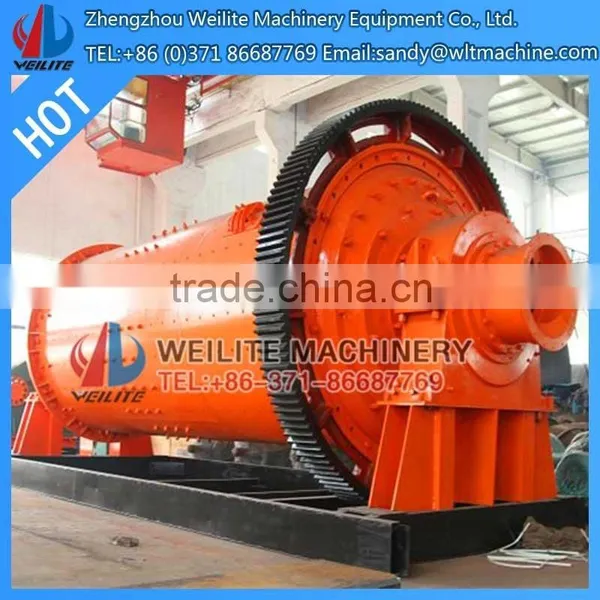

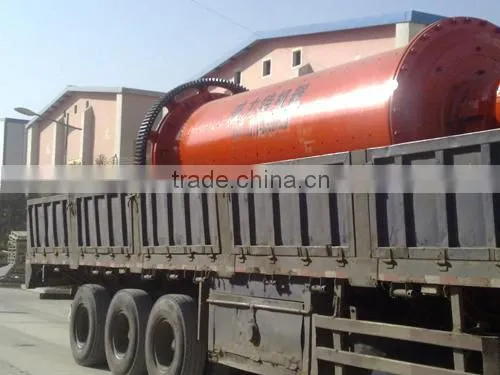

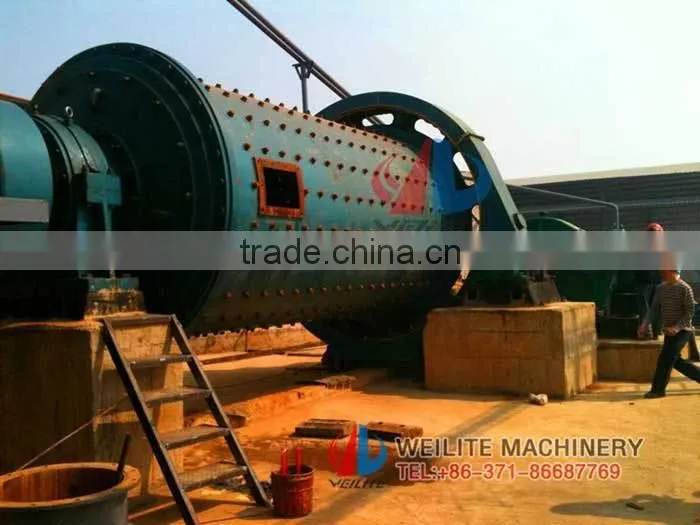

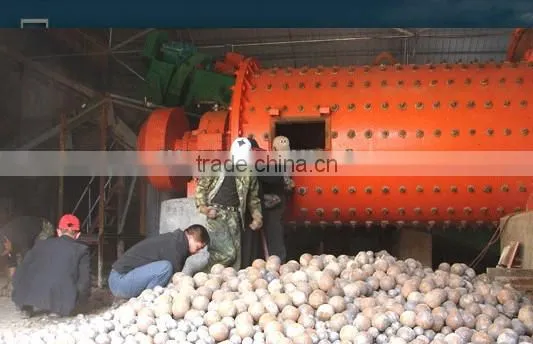

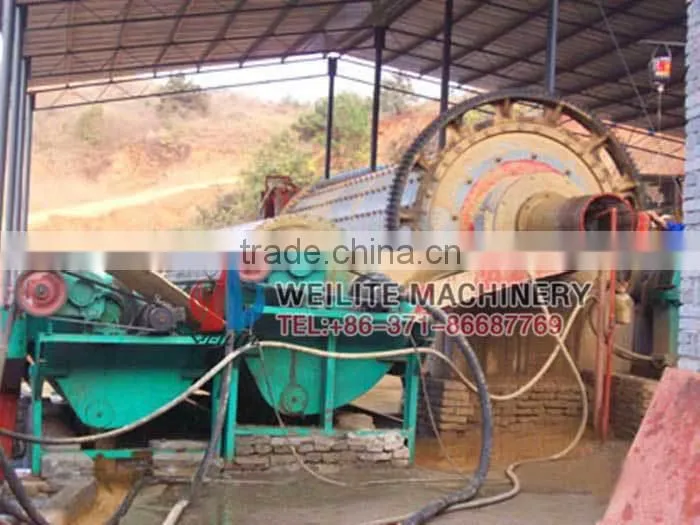

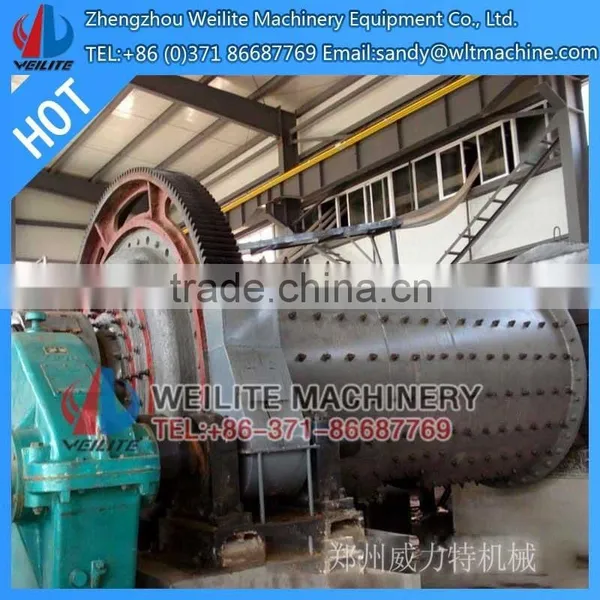

4.Closed Circuit Mill Picture
Weilite are professional mining machine manufacturer. If you need our machines, please let me know your raw material size and capacity. Our professional engineer will help to recommend the most suitable type for your project. Hope we can cooperate with you.
5.Company Introduction
We Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer and exporter of mining machinery, metallurgical equipment and building materials in China. Our main products are crusher, grinding mill, dryer, briquetting machine and so on. All of them are ISO9001:2000 confirmed. They are excellent quality and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us!
