1.Lime Powder Making Machine Introduction
Lime powder mkaing machine is a key equipment to crush and grind the limestone.It is widely used in cement production line and it is also suitable for grinding silicate, sand, limestone, dolomite, iron ore, chrome ore, new-type building material, refractory material, ferrous metal and non-ferrous metal, glass ceramics, etc.There are two kinds of ball mill, grate type and overflow type due to different ways of discharging material.
2.Lime Powder Making Machine Working Theory

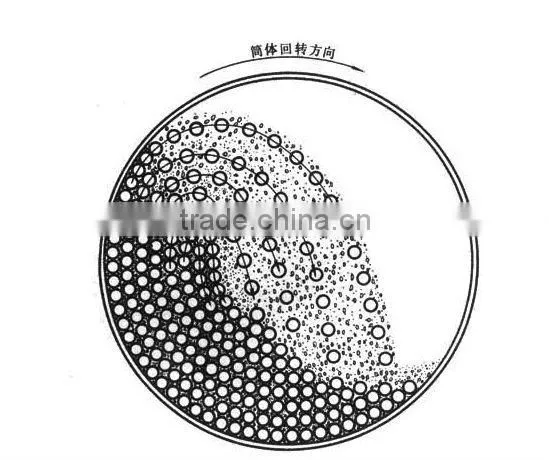

The main body of the milling machine is a low-speed rotary cylinder mounted on two large bearings horizontally. The milling machine’s rotary part is driven at reducing speed by motor through speed reducer and gear weheel or by low-speed synchronous motor through gearwheel. Inside the cylinder feed proper grinding medium-steel balls. The medium will be lifted to certain height under the action of centrifugal force and friction and drop or fall. The material to grind is fed to the cylinder in succession and crushed by grinding medium, then discharged through overflow and continual feeding force, and enter the next procedure.
3.Lime Powder Making Machine Picture and Installation Pictures
1).Lime Powder Making Machine In Workshop

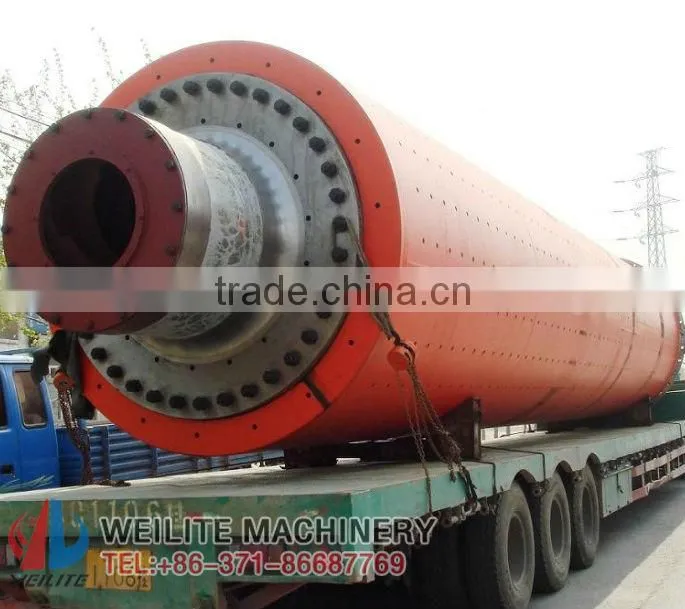

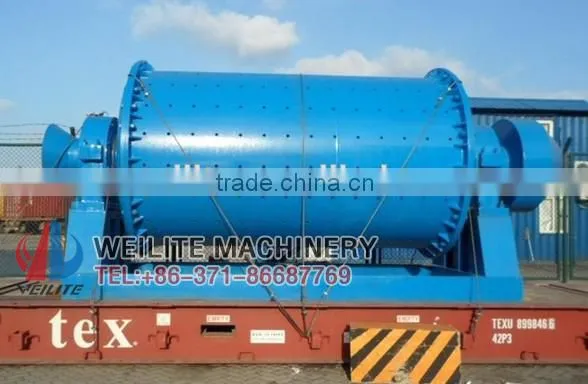

2).Lime Powder Making Machine Delivery Picture
3).Lime Powder Making Machine Installation Pictures

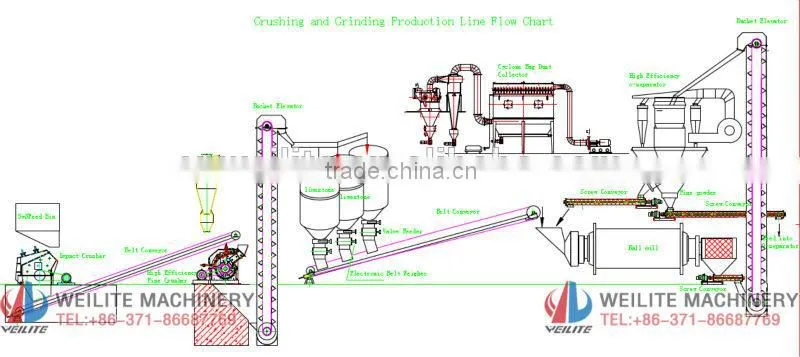

4.Lime Powder Making Machine Production Line
Raw materials will be crushed with the help of Jaw Crusher or Impact Crusher if they contain lumps. The feed size for the griding equipment should be less than 25 mm.The belt conveyor discharge the material in to the griding equipment. The chamber of grinding equipment is filled with grinding Media ( balls & Cylpebs).Raw material is discharged from the mill to the elevator to fill it in the Storage Silo.
5.Lime Powder Making Machine Technical Data
Type |
Shaft Rotation Speed |
Ball Load (t) |
Feeding Size |
Discharging Size |
Capacity (t/h) |
Motor Power |
Weight(t) |
MQJ900×1800 |
38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
3.6 |
MQJ900×3000 |
38 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.6 |
MQJ1200×3000 |
32 |
5 |
≤25 |
0.074-0.4 |
1.6-5 |
45 |
12.8 |
MQJ1200×4500 |
32 |
7 |
≤25 |
0.074-0.4 |
1.6.5.8 |
55 |
13.8 |
MQJ1500×3000 |
27 |
8 |
≤25 |
0.074-0.4 |
2-5 |
90 |
17 |
MQJ1500×4500 |
27 |
14 |
≤25 |
0.074-0.4 |
3-6 |
110 |
21 |
MQJ1830×3000 |
24 |
11 |
≤25 |
0.074-0.4 |
4-10 |
180 |
28 |
MQJ1830×4500 |
25.4 |
15 |
≤25 |
0.074-0.4 |
4.5-12 |
155 |
32 |
MQJ1830×6400 |
24 |
23 |
≤25 |
0.074-0.4 |
6.5-15 |
210 |
34 |
MQJ2100×3000 |
23.7 |
15 |
≤25 |
0.074-0.4 |
6.5-36 |
210 |
34 |
MQJ2100×4500 |
23.7 |
24 |
≤25 |
0.074-0.4 |
8-43 |
245 |
42 |
MQJ2100×7000 |
23.7 |
26 |
≤25 |
0.074-0.4 |
8-48 |
280 |
50 |
MQJ2200×4500 |
21.5 |
27 |
≤25 |
0.074-0.4 |
9-45 |
280 |
48.5 |
MQJ2200×7000 |
21.7 |
35 |
≤25 |
0.074-0.4 |
15-28 |
380 |
54 |
MQJ 2400×4500 |
21 |
30 |
≤25 |
0.074-0.4 |
8.5-60 |
320 |
65 |
MQJ 2700×4000 |
20.7 |
40 |
≤25 |
0.074-0.4 |
12-80 |
400 |
94 |
MQJ 2700×4500 |
20.7 |
48 |
≤25 |
0.074-0.4 |
12-90 |
430 |
102 |
MQJ 3200×4500 |
18 |
65 |
≤25 |
0.074-0.4 |
Set According to the Technology |
800 |
137 |
6.Our Services For Lime Powder Making Machine
1). If any interest in our lime powder making machine, please feel free to contact me and let me know your requirement on capacity and material size. We are professional machine manufacturer, we will help to choose the most suitable machine for you.
2).Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
3). If you need, we will dispatch professional engineer for installation, trail and worker training.
7.About Us--Zhengzhou Weilite Machinery
in China. Our main products are crusher, grinding mill, dryer, briquette plant and so on. Welcome to visit and purchase from us!
8.FAQ About Lime Powder Making Machine
1).What's the max. feeding material size for the lime powder making machine?
- Answer:25mm.
2).What's the discharging material size?
- Answer:Discharging material size varies from 125mesh to 325mesh.
3).What kind of material can be grinded by your lime powder making macine?
- Answer:Cement Clinker, Coal,Gypsum,Steel Slag,Iron Ore,Chrome Ore,etc.
4).Do you provide production line design service?
- Answer:Yes, we are professional machine manufacturer. So we can provide production line design service.
If any interest in our Lime Powder Making Machine, please contact me for details.
Tel:+86 (0)371 86687769
Cell Phone:+86 15639260372
Contact Name:Ivy Zhang
Skype:ivyzhang2421
