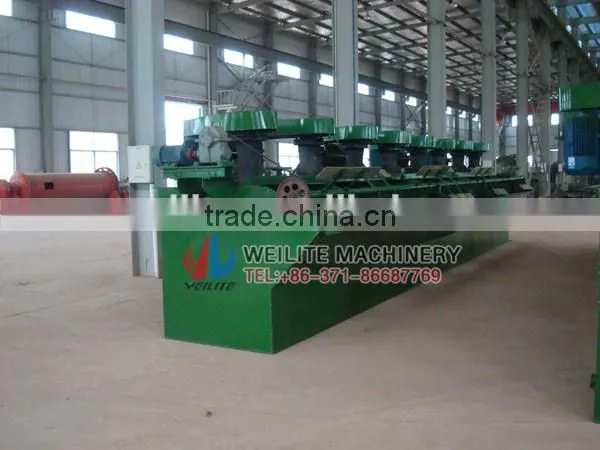

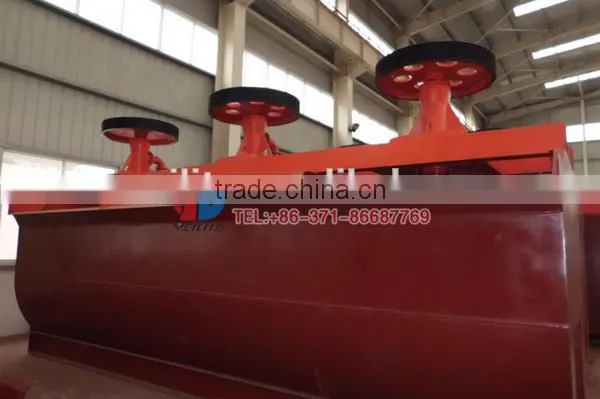

China Profesional Manufacturer Of Flotation Machine/ Flotation Separator With Good Performance

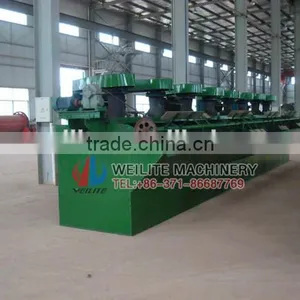

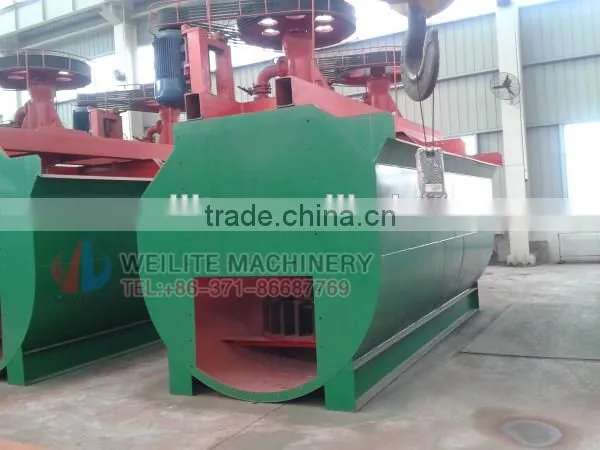

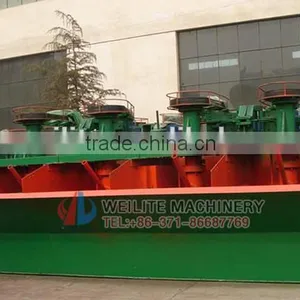

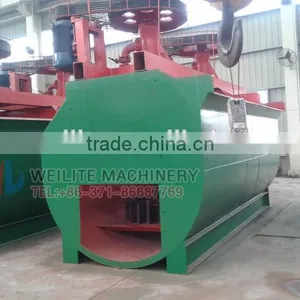

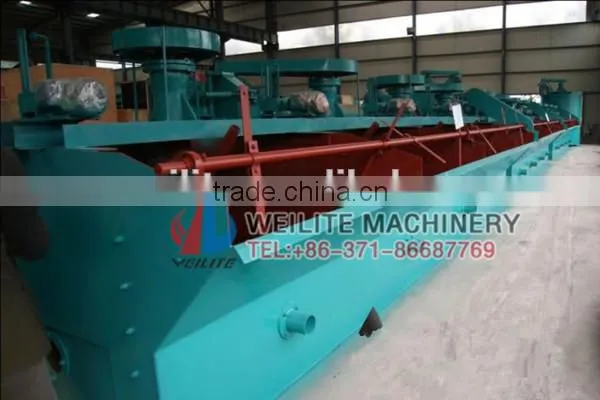

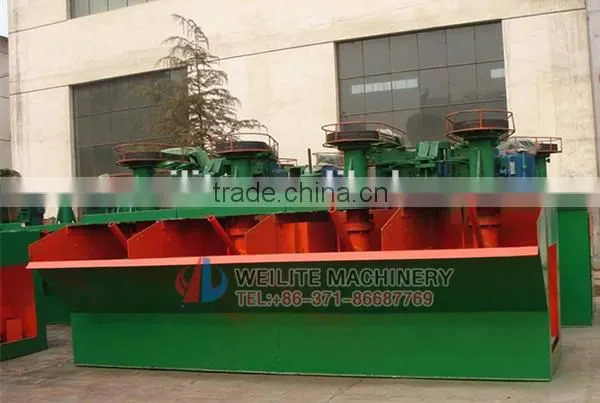

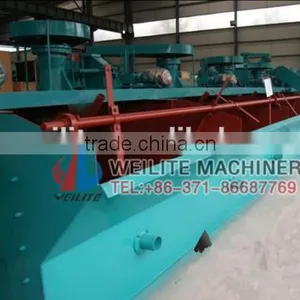

Description of flotation machine
- Flotation machine (also called Flotation separator) is applicable for the separation of nonferrous metal and ferrous metal and nonmetal, such as fluorite and talc.
- The impeller is driven by V-belts, which can bring the centrifugal effect to form the negative pressure. On the one hand, to inhale sufficient air to mix with ore pulp; On the other hand, to stir ore pulp and mix with medication to form the mineralized froth. By adjusting the height of flashboard you can control the liquid level and make the useful froth scraped by loam board.
Working Principle
When flotation machine works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low pressure air sent by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir. Another part of ore slurry flows to lower part of impeller for the remixing with air. The remaining slurry flows to the next trough until it becomes residue.
Main technical parameters
| Type |
Effective volume (m³/slot) |
Impeller diameter (mm) |
Impeller speed (r/min) |
Scraper speed (r/min) |
Capacity (m³/min) |
Motor |
Size Four-slot one body (mm) |
Weight (t/one body) |
|
| Type |
Power (kw) |
||||||||
| XJK-0.13 | 0.13 | 200 | 600 | 17.5 | 0.05-0.16 | Y90L-4 | 1.5 | 2100×865×900 | 0.35 |
| XJK-0.23 | 0.23 | 250 | 500 | 17.5 | 0.12-0.28 | Y90L-4 | 1.5 | 2625×1130×1290 | 0.41 |
| XJK-0.35 | 0.35 | 300 | 470 | 17.5 | 0.15-0.5 | Y100L1-4 | 2.2 | 3012×1350×1320 | 0.45 |
| XJK-0.62 | 0.62 | 350 | 400 | 16 | 0.3-0.9 | Y100L2-4 | 3 | 3800×1500×1550 | 0.85 |
| XJK-1.1 | 1.1 | 500 | 330 | 26 | 0.6-1.6 | Y132M-6 | 5.5 | 4680×1820×1950 | 1.4 |
| XJK-2.8 | 2.8 | 600 | 280 | 26 | 1.5-3.5 | Y160L-6 | 11 | 7750×2600×2700 | 2.43 |
Our service
1)Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
Note:
If you didn't get the suitable machine in this page , please email me you detailed requirement . We are the manufacturer with over 30 years working experience . We can help you in this matter .
