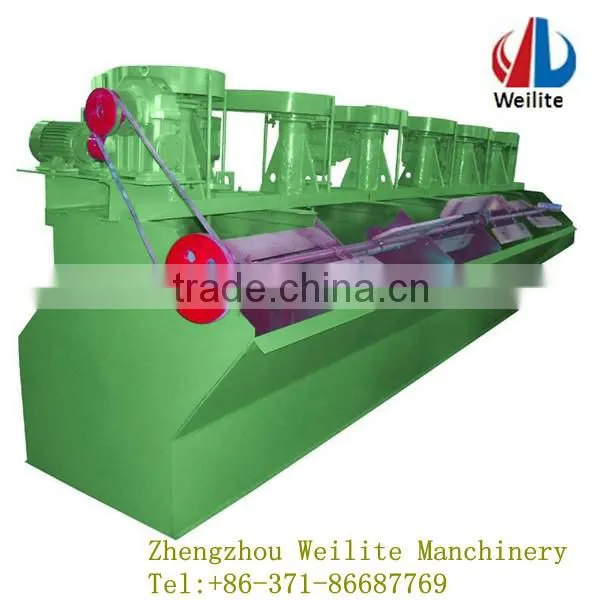

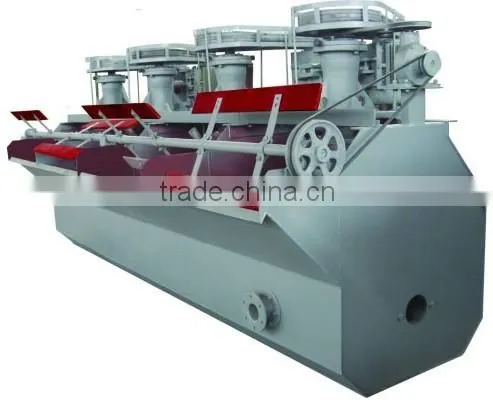

High Quality Talc Flotation Machine
Talc flotation machine applicable for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and floatation, so the useful ore are reclaimed.
Features
1. Large inhaling capacity and low consumption.
2. Complete flotation circuit with inhaling air and slurry, no auxiliares are needed.
3. Process is easy to be changed.
4. Reasonable circulation of slurry decreases coarse sand sedimentation.
5. Automatic controlling device makes adjustment more convenient.
Working Principle
1). The impeller is rotated by V-belt of motor and produces centrifugal effect with negative pressure;
2). Enough air is inhaled into mixed pulp, and pulp mixes with drug at the same time;
3). Mineral sticks on bubble completely and floats on the surface of pulp to form mineralized bubble;
4). Useful bubble is scraped out by adjusting flashboard height and controlling liquid surface
Main technical parameters
| Type |
Effective volume (m³/slot) |
Impeller diameter (mm) |
Impeller speed (r/min) |
Scraper speed (r/min) |
Capacity (m³/min) |
Motor |
Size Four-slot one body (mm) |
Weight (t/one body) |
|
| Type |
Power (kw) |
||||||||
| XJK-0.13 | 0.13 | 200 | 600 | 17.5 | 0.05-0.16 | Y90L-4 | 1.5 | 2100×865×900 | 0.35 |
| XJK-0.23 | 0.23 | 250 | 500 | 17.5 | 0.12-0.28 | Y90L-4 | 1.5 | 2625×1130×1290 | 0.41 |
| XJK-0.35 | 0.35 | 300 | 470 | 17.5 | 0.15-0.5 | Y100L1-4 | 2.2 | 3012×1350×1320 | 0.45 |
| XJK-0.62 | 0.62 | 350 | 400 | 16 | 0.3-0.9 | Y100L2-4 | 3 | 3800×1500×1550 | 0.85 |
| XJK-1.1 | 1.1 | 500 | 330 | 26 | 0.6-1.6 | Y132M-6 | 5.5 | 4680×1820×1950 | 1.4 |
| XJK-2.8 | 2.8 | 600 | 280 | 26 | 1.5-3.5 | Y160L-6 | 11 | 7750×2600×2700 | 2.43 |
(1) Pre-sale Service:
Suitable-design products and resonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
(2) After-sale Service:
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.
Zhengzhou Weilite Machinery Equipment Co., Ltd.is a manufactrurer of mining machinery in china.The talc flotation machine is one of the our main products .They are ISO9001:2000 confirmed and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us!
Delivery time: Within 20 working days.
Place of inspection before delivery : In the OUR factory .
Shipping port : Qingdao Port, China
Items of payment : T/T :50% in advance;50% paid before delivery
Note:
If you didn't get the suitable machine in this page , please email me you detailed requirement . We are the manufacturer with over 30 years working experience . We can help you in this matter .
