Specifications
Iron Ore Magnetic Separator1 Superior separator
2 High magnetic field intensity
3 Superior material
5 Magnetism durable

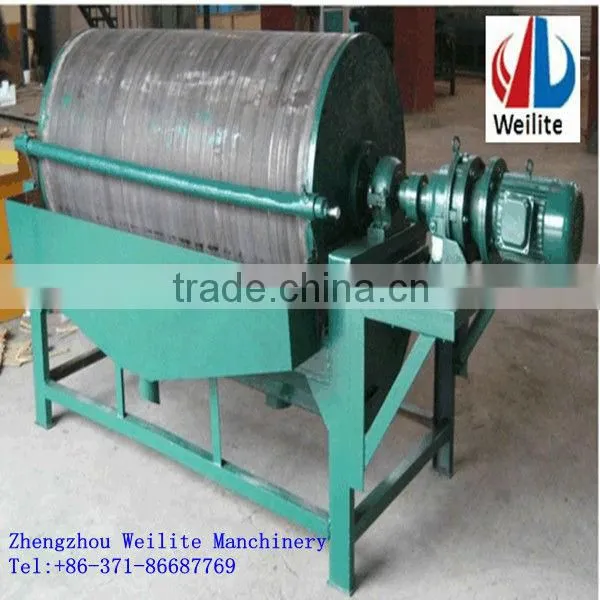

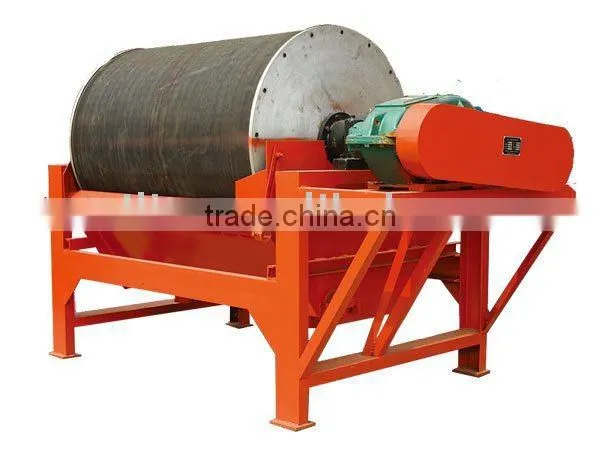

hematite iron ore magnetic separator
Hematite Iron Ore Magnetic Separator Applications:
Adopt wind separating device of wind duct, magnetic separation of sand is made under anhydrous status.
Air-volume hole designed for quincunx inject hole makes air volume of pipeline be evenly scattered from netlike hole and sprayed to the arc face of magnetic-separating drum, thereby producing magnetic separation action of wind power.
Adopt excellent and high-strength terres rares permanent magnet material; advantages: manufactured magnetic-separating roller, high magnetic field intensity, everlasting magnetic force; purity of iron ore can be improved to the utmost extent under the action of wind power
Hematite Iron Ore Magnetic Separator Working Principle:
1. The equipment consists of main frame, magnet separator, wind power device system, speed reducer, field regulator and main control box.
2. Parallel design of external arc face of roller corresponding to magnet separator-wind injecting device system: wind is conveyed by wind pump to wind duct, then injected through quincunx nozzle on the duct and evenly scattered and sprayed to the roller of magnetic separation, thereby meeting the purpose of wind magnetic separation of iron ore.
Hematite Iron Ore Magnetic Separator Technical Parameter:
| Model | magnetic field strength(oe) | working capacity(t/h) | Motor Power(kw) | Weight(kg) |
| CTB600X1200 | 1450 | 8-15 | 1.5 | 910 |
| CTB600X1800 | 1500 | 15-25 | 2.2 | 1340 |
| CTB750X1800 | 1550 | 30-45 | 3 | 2050 |
| CTB900X1800 | 1650 | 35-60 | 4 | 3000 |
| CTB1050X2400 | 1650 | 60-95 | 5.5 | 5020 |
| CTB1200X3000 | 1650 | 80-150 | 7.5 | 7800 |
| CTB1500X3000 | 1650 | 120-200 | 11 | 9600 |
Please note that :
If you did not find suitable machines in this page , please give us an inquiry and you can call us directly at +86 371 86687769 .
With over 30 years manufacturing experience , our factory are ready to serve you now !
