Specifications
Magnetic Separator1 Superior separator
2 High magnetic field intensity
3 Superior material
5 Magnetic durable

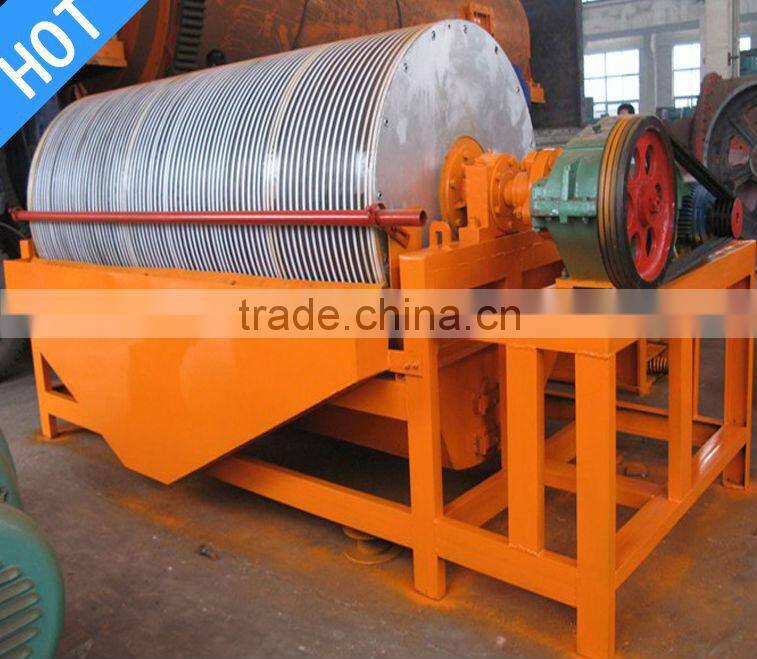

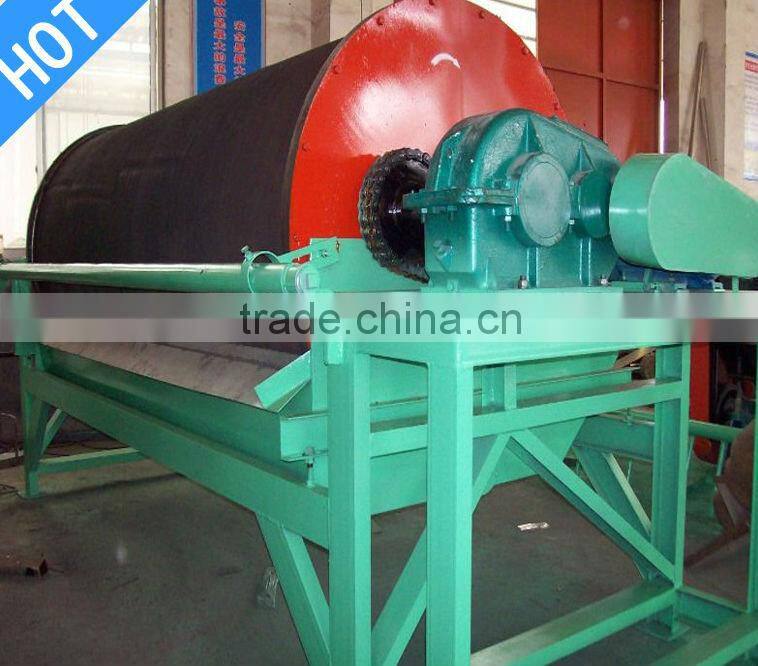

Professional Iron Ore Magnetic Separator
1.Application of magnetic separator
The magnetic separator (dry-type magnetic separator)is mainly applicable for the coarse granule magnetic mineral like beach placer and river sand. It is also could be used at the primary separation of the magnetic mineral. The grade of the coarse ore could be up 60%.

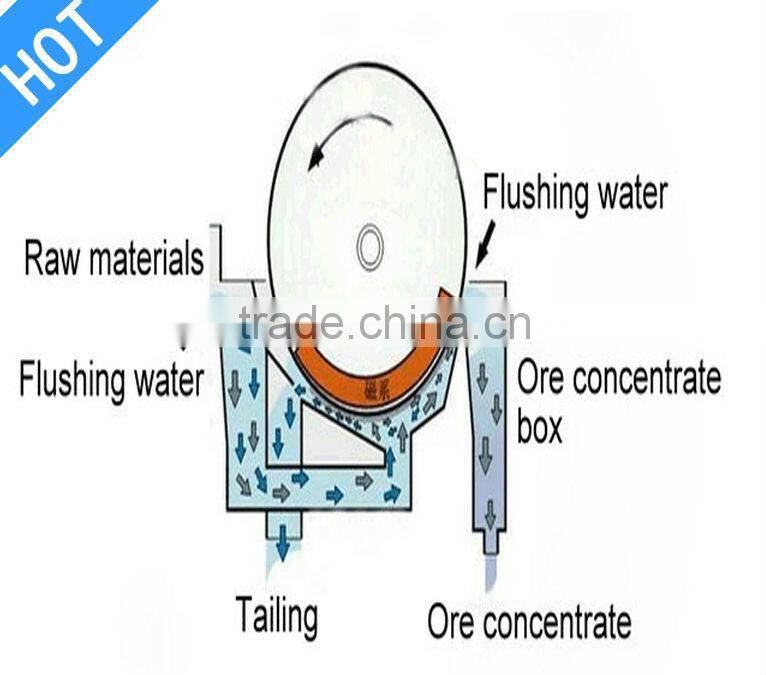

2.Working principles of magnetic separator
The material in pours from the input port and the magnetic material in it absorbs on the surface of the tank under the action of the magnetic field. With the rotating of the tank when the magnetic material disengages from the magnetic field it falls into the chute under the action of the gravitation. The nonmagnetic material was thrown into the tailings chute under the inertia and gravitation with the rotating of the tank. Then the magnetic material and nonmagnetic material are separated, the separation work ends.
3.Characteristics of Magnetic Separator
Simple installation and adjustment, easy to operate
The use of permanent magnetism reduces the cost of using and maintenance
Wet and dry dual-use, wide range of application
Easy to move, and convenient in connecting with other equipments
Which type of separator do you have?
- Here is the technical parameter.
4.Magnetic Separator Technical Parameter
| Model | magnetic field strength(oe) | working capacity(t/h) | Motor Power(kw) | Weight(kg) |
| CTB600X1200 | 1450 | 8-15 | 1.5 | 910 |
| CTB600X1800 | 1500 | 15-25 | 2.2 | 1340 |
| CTB750X1800 | 1550 | 30-45 | 3 | 2050 |
| CTB900X1800 | 1650 | 35-60 | 4 | 3000 |
| CTB1050X2400 | 1650 | 60-95 | 5.5 | 5020 |
| CTB1200X3000 | 1650 | 80-150 | 7.5 | 7800 |
| CTB1500X3000 | 1650 | 120-200 | 11 | 9600 |
We are pleased to introduce you ourselves as one of the leading and well established/Manufacturing and Supplying of High Quality Products as below main items:
Stone production line:
Including:
Jaw crusher
Impact crusher
Cone crusher
Hammer crusher
Vibrating screen etc
Sand making production line:
Including:
Jaw crusher
Sand making machine (VSI crusher)
Ball mill
Cone crusher
Hammer crusher
Sand washing machine
Vibrating screen etc
We have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
Package And Transportation
Based on the actual situation .
Payment And Delivery Time
Usually T/T 30% as the deposit, the balance to be paid before the machine delivered from the factory. For one set,
the delivery time within 3-5 working days, for 1-5 sets 20 days, above 5 sets usually need negotiation.
5. Company Introduction
We Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer of mining machinery, metallurgical equipment and building materials in China. Our main products are crusher, grinding mill, dryer, briquetting machine and so on. All of them are ISO9001:2000 confirmed. They are excellent quality and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us!
