15 - 25 Ton Per Hour Copper / Tin / Tan Ore Processing Plants Flow Chart

Name: 15 - 25 Ton Per Hour Copper / Tin / Tan Ore Processing Plants Flow Chart
Brand: Weilite
SKU: 102017269
Availability: InStock

US$ 5,000 - 238,095 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Flotation Separator

Production Capacity:

15-25 TPH

Zhengzhou Weilite Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China main port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Flotation Separator

Production Capacity 15-25 TPH

Place of Origin Henan, China

Brand Name Weilite

Model Number WLT

Voltage 220v / 380v / 440v or custom-made

Power(W) 1.5-11kw

Dimension(L*W*H) 2200x2900x1400mm

Weight 0.9-10 tons

Certification ISO9001:2000

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

15-25 Ton Per Hour Copper / Tin / Tan Ore Processing Plants Flow Chart

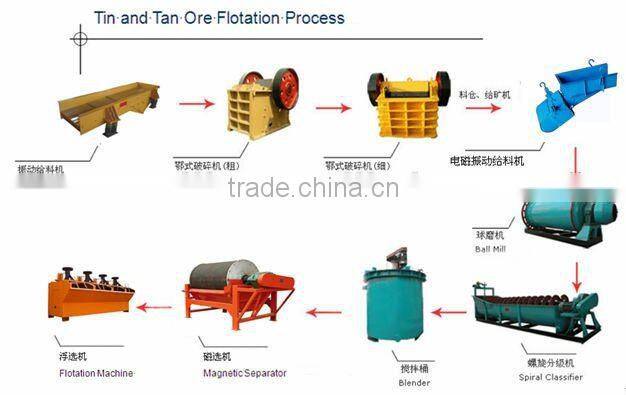

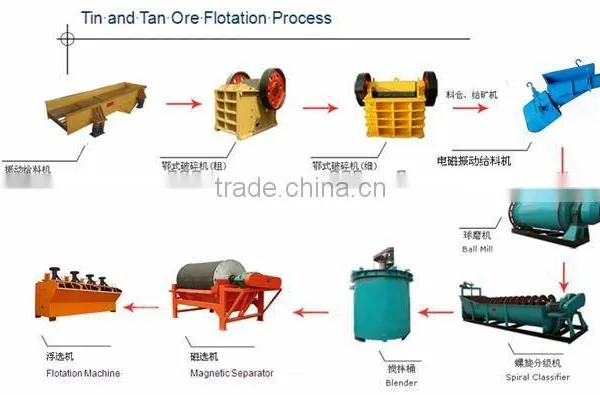

Ore Processing Flow Chart

Machine Type

Machine Name	Type	Qty(set)	Motor(KW)	Note
Vibrating Feeder	800×3000	1	1.5×2	Feed ore into crusher evenly
Jaw Fine Crusher	PEX250×1000	1	37	Crush ore into size15mm
Electric Vibrator Feeder	125	1	4.5	Feed crushed ore evenly
Energy Saving Ball Mill	Φ2100×4500	1	245	Grind ore into fine powder
Spiral Classifier	FG1500×7200	1	7.5+2.2	Separate ore and fine mud
Blender	1500	2	3×2=6	Blend ore with water for magnetic separate
Magnetic Separator	CTB900×1800	1	4	Separate ore by different magnetic strength
Flotation Machine	XJK-1.1 10groups	1	4.5×20	Increase ore content
Flotation Machine	XJK-0.62 6groups	1	3×12	Increase ore content
