Specifications
Dry magnetic separator:1.Simple structure.
2.Large capacity.
3.Easy operation.
4.Easy maintenance and Competitive price.

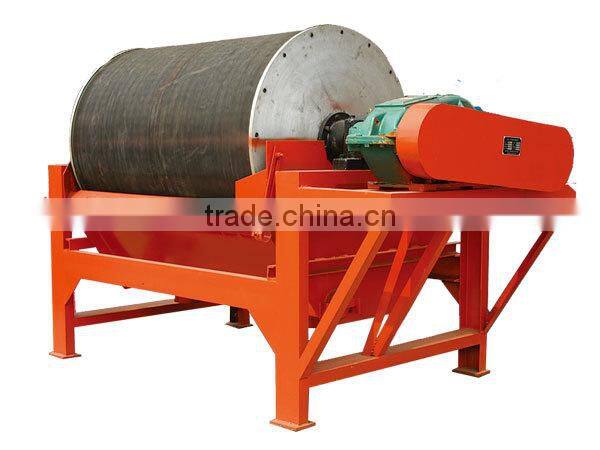

High Efficiency Dry Magnetic Separator China Supplier
1.Company Introduction
We Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer of mining machinery, metallurgical equipment and building materials in China. Our main products are crusher, grinding mill, dryer, briquetting machine and so on. All of them are ISO9001:2000 confirmed. They are excellent quality and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us!

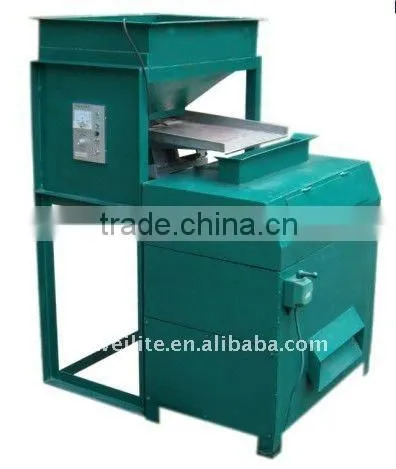

2.Introduction of Dry magnetic separator
Separator for dry magnetic separation of magnetic minerals beneficiation machinery,as opposed to wet magnetic separator to use when sorting mineral liquid as a diluent to improve separation efficiency,the dry magnetic separator is required to be separation of the mineral drying,particles can move freely,into independent free state,otherwise it will affect the magnetic effect,or even result in non-separation of the consequences.
3.Application of Dry magnetic separator
The magnetic separator for particle size below 3mm magnetite,pyrrhotite,roasted ore,ilmenite and other materials,wet magnetic separation,but also for coal,non-metallic minerals,building materials and other materials in addition toiron work.
Dry magnetic separator magnetic system,high-quality ferrite and rare-earth magnet material or composite,the average magnetic induction tube surface is 100~600m.According to user needs,provding downstream,half-reflux,reflux and many other different types of strong magnetic table.The magnetic separator is simple in structure,large capacity,easy operation,easy maintenance and so on.
Dry magnetic separator equipment is commonly used iron and manganese equipment ,mainstream intensity magnetic separator mineral processig equipment.This series of dry magnetic separator for refractory,chemical materials,grain and oil machinery,abrasives,ceramics,metallurgy,cement,powder metallurgy,rubber,minerals and other materials in addition to (optional)Rail,and with Raymond,mill,ball mill supporting the use of.
4.Main technical parameters
| Type | GYC-60B | GYC-60B-1 | GYC-2X60 | GYC-3X60 | GYC-3X80 | GYC-4X80 |
| Cylinder dia X length(mm) | Φ320X600 | Φ320X600 | Φ320X600 | Φ320X600 | 404X800 | Φ404X800 |
| Magnetic induction(oe) | 3600 | 1100 | 3500 | 1100-3000-3500 | 1100-3000-3500 | 1100-3000-3500 |
| Cylinder quantity(per) | 1 | 1 | 2 | 3 | 3 | 4 |
| Cylinder speed(r/min) | 66,47,33 | 66,47,33 | 66,47,33 |
34.5-172 adjustable |
54.6-172 adjustable |
64.5-172 adjustable |
| Input size(mm) | 0.06-25 | 0.063-25 | 0.05-25 | 0-8 | 0-8 | 0-8 |
| Motor model | Y801-4 | Y901-4 | Y801-4 | ZBW-15 | ZBW-15 | ZBW-15 |
| Power(kw) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 |
| Overall dimension(mm) | 860X550X840 | 860X550X840 | 1150X920X1500 | 1050X1025X1700 | 1770X1260X2400 | 2300X1000X2750 |
| Capacity(t/h) | 0.5-2.5 | 0.1-3 | 0.5-2.5 | 0.8-2.5 | 1.5-2.5 | 1.5-2.5 |
| Weight(t) | 0.5 | 0.65 | 0.85 | 1.2 | 1.5 | 2.4 |
|
Application scope and introduction |
select | select | select | shawing supplar | shawing supplar | select |
5. If any need, please feel free to contact us at +86 371 86687769 .
