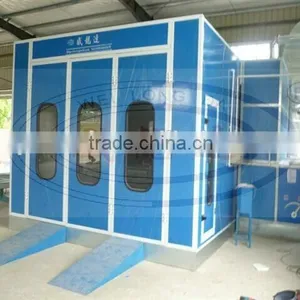

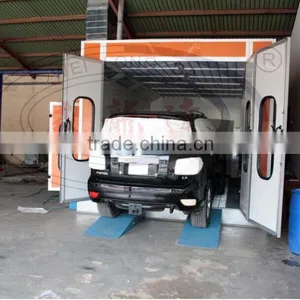

WLD9200 Spray Booth, CE Car Painting Room, Weilongda Spray Booth, Car Spray Booth, Car Painting House, Car Painting Room, Car Spray Room, Car Spray House, Car Spray Cabin, cabina de pintura, cabine de pintura, semburan gerai, spuitcabine, kabina lakiernicza, stendat e llak, sproeikamer, Car Painting House, Car Painting Booth
WhatsApp/Mobile: +86-13738082939, Skype: wikimachine, Tel.: +86-571-82136157
Model: WLD9200
External Size:(mm) |
7000x5450x4000 |
Front Door:(mm) |
3000(w)x2750(h) |
Internal Size:(mm) |
6900x3900x2800 |
Total Power:(kw) |
19 |
Cabin System |
Wallboard |
Fire-retardant composite molding Sandwich style EPS (epispastics polystyrene)(Rock wool and PU are optional) 50mm thickness, EPS foam Density is 14kg/m³ ;The Colorful steel skin boards have been HDG(hot dip galvanizing), service life can reach 20 years without rusting Thickness is 0.476mm.It keeps high insulation performance with a low weight. Four colors for your choice, including blue,red,orange and white. High quality galvanized steel roof panel |
|
Basement |
Galvanized steel sheet and square steel pipe construction. Full grids,anti-rust and strong, the bearing capacity of driving grids up to 1000 kg; Basement frame is assembly formed by corrosion-resistant steel square tube, the overall performance is good, anti-heavy and strong, not deformed. |
||
Door |
3 pieces of luxury front doors. Size: 3000(w)*2750(h). 1 piece of emergency door. |
||
Air Circulation System |
Intake Fan |
1x7.5kw direct drive turbo fan, Air Flow is 25000 m3/h. Siemens technology production, large air volume and low noise. |
|
Exhaust fan |
1x5.5kw direct drive turbo fan, Air Flow is 18000 m3/h,Siemens technology production, large air volume and low noise. |
||
Air Pipe |
Made of Galvanized steel sheet consisted of 4 pieces of Straight pipe 750*750*1000, and 1piece of elbow. |
||
Nozzles |
60 units ceiling nozzles with 3 sets of centrifugal fan. 3×1.5KW.Air flow is 15000 m3/h,special for water based paint spraying and drying. |
||
Air circulation type |
Full inner air circulation type, particularly rapid heating, insulation ability, especially energy, reflect its superior performance in a cold environment. |
||
Air Flow |
Air Flow: 30000m3/h. Air Speed: 0.3-0.5m/s. |
||
Heating System |
Burner |
Imported Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min (20-60°C) Max. Temperature at 80°C. Fuel consumption is 4-5kg/ vehicle. |
|
Heat Exchanger |
Made of stainless steel. The heat exchange rate reaches 85%. |
||
Air make up cabinet |
The surface plate is powder coated galvanized plate, rust force strong, beautiful; The frame is made of high-quality hot-dip galvanized sheet repression,difficult to wear,anti-rust and strong, more durable than ordinary surface treatment, more beautiful, nodes with no damage spot, rigidity. |
||
Fume pipe |
Fume pipe made of galvanized pipe, diameter of 190mm, 4 pieces of 1000mm long straight pipe, two 90 ° elbows. |
||
Lighting System |
Light tube |

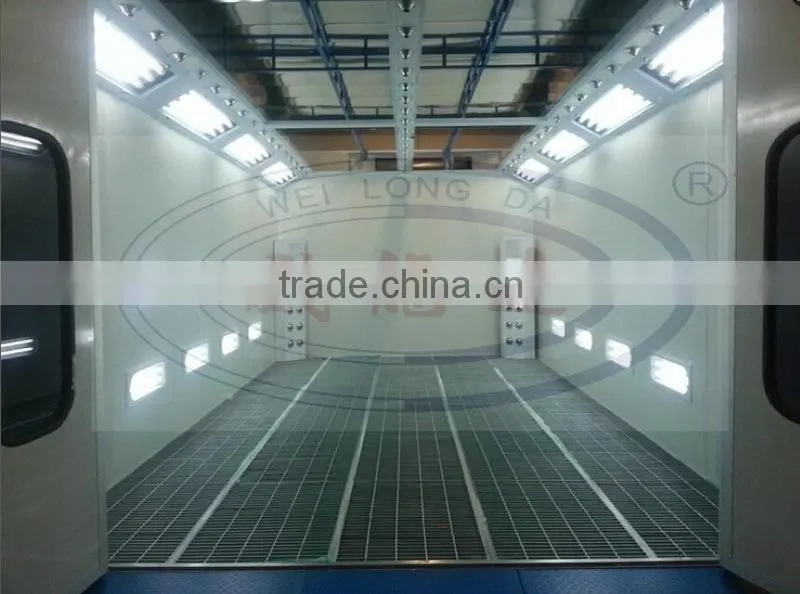

Ceiling light has 32 pieces of 36w lamps. Side light has 16 pieces of 36kw Lamps. 900 Lux. the grade of lighting box’s dustproof and waterproof reach IP54 grade. |
|
Light box |
Medallions of welded galvanized plate, by the spray treatment, stiffness, repeated disassembly easy deformation, surface brightness, color uniformity, heat is not easy to change color. |
||
Filtering System |
Primary filter |
Dual filtering structure. The primary M pattern nonwoven filter bags,it can capture granules larger than 10μm. |
|
Ceilng filter |
Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%. |
||
Exhaust filter |
Special configure with M pattern active carbon pocket filter system. |
||
Control System |

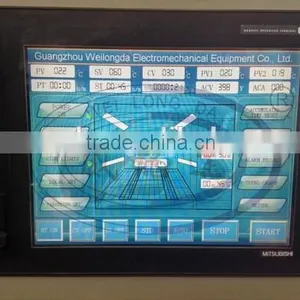

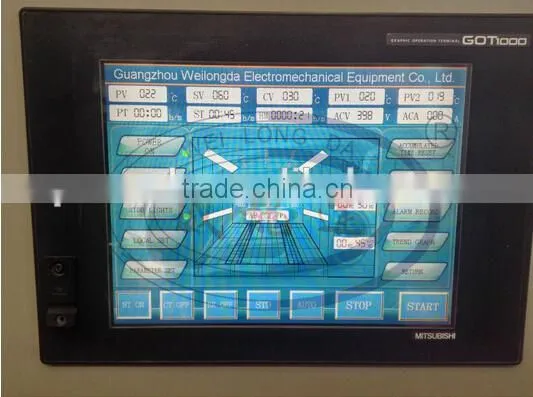

Touch Screen Control |

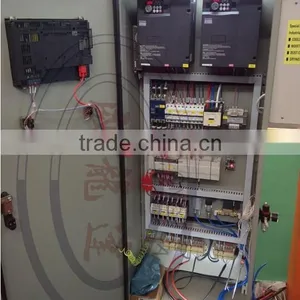

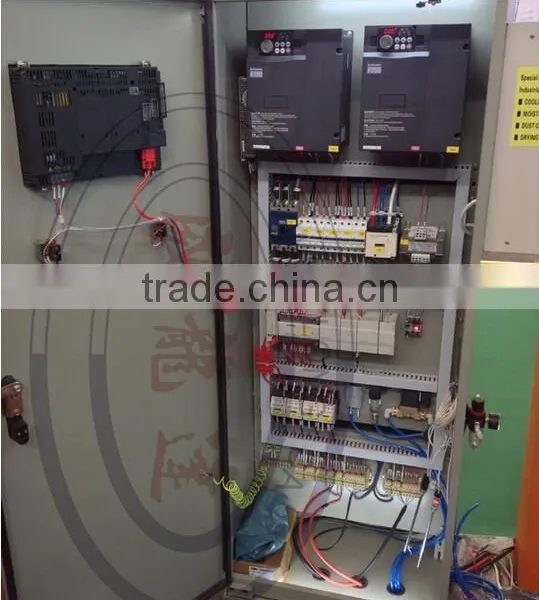

Touch screen control, the system is composed of PLC, Converter, Air pressure transducer and Snyder electronic components. Automation Intelligent control which can save 25% energy than normal system. |
|
Damper |
Air damper,efficient and durable. |
||
Configuration:
Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.476mm
thickness. Galvanized steel roof panel.
Basement: Galvanized steel sheet and square steel pipe construction. Whole grids with floor filter. Full ramps.
Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of
emergency door. Watching window with aluminum frame.
Air Circulation System: 1x7.5kw direct drive intake fan, 1x5.5kw direct drive exhaust fan. High quality Air drive
damper (BELIMO 20N electric damper for Option).
Water Based Paint Drying System: 60 units ceiling nozzles with 3 sets of 1.5kw centrifugal fans.
Burner: Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60.C). Max. temperature
at 80.C. Fuel consumption is 5-6kg/vehicle.
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
Lighting System: Ceiling light has 32 pcs of 36w lamps. Side light has 16 pcs of 36w lamps. 900 Lux.
Air Purification: Dual filtering structure. The primary filter is M pattern nonwoven filter bags. It can capture
granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working
environment can reaches 98%.
Control System: Touch screen control, the system is composed of PLC, Converter, air pressure transducer and
Snyder electronic components. Automation Intelligent control which can save 25% energy than normal system.
Pollution Control System: Special configure with M pattern Active Carbon pocket Filter System.

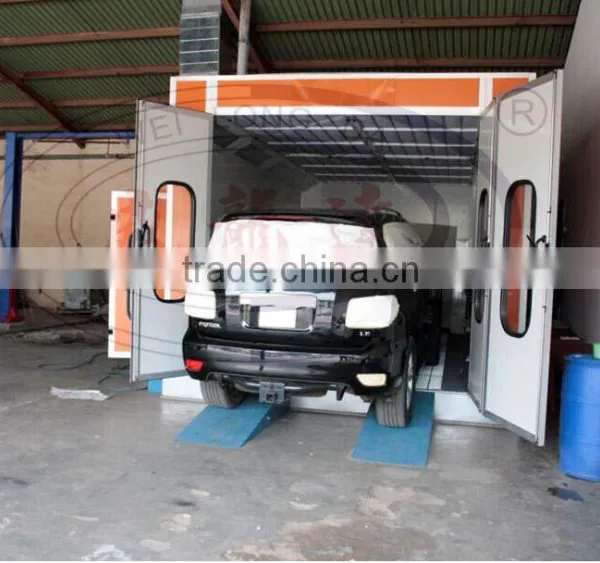

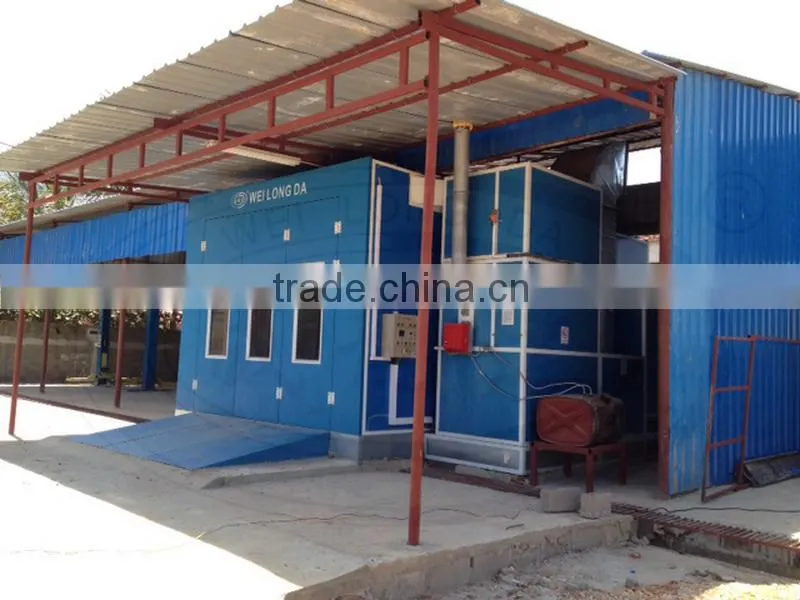

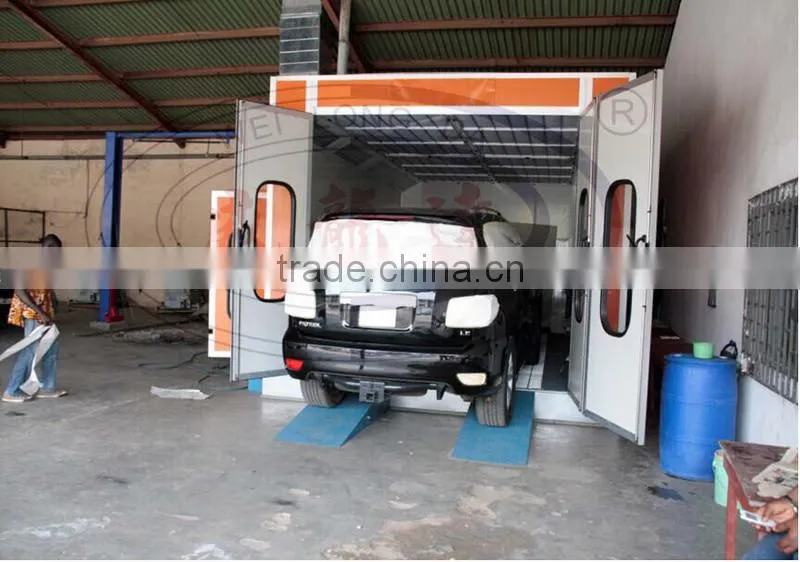

User Case
