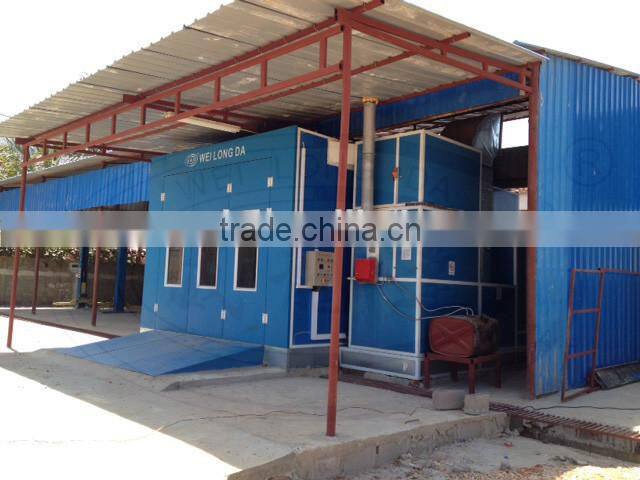

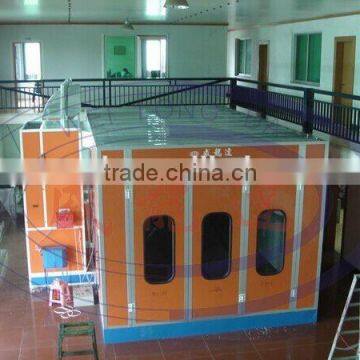

WLD9100 CE Spray Booth, Car Painting Cabin, Car Spray Booth

External Size:(mm)

7000x5450x3480

Front Door:(mm)

Aluminum Frame

3000(w)x2750(h)

Internal Size:(mm)

6900x3900x2800

Total Power:(kw)

           16

Cabin System

Wallboard

Fire-retardant composite molding Sandwich style EPS

(epispastics polystyrene) (Rock wool and PU are optional )50mm
thickness, EPS foam Density is 14kg/m³ ; The Colorful steel skin boards have been HDG(hot dip galvanizing),service life can reach
20 years without rusting. It keeps high insulation performance with a low weight. Four colors for your choice,including blue,red,orange
and white. High quality galvanized steel roof panel.

Basement

Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter,3 checkered plates,anti-rust and strong. The bearing capacity of driving grids and plates up to 1000 kg; Basement frame is assembly formed by corrosion resistant steel square tube, the overall performance is good, anti-heavy and strong, not deformed.

Door

3 pieces of luxury front doors. Size: 3000(w)*2750(h). 1 piece of emergency door.

  Air Circulation System

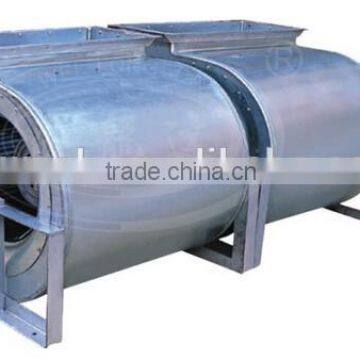

  Intake Fan

2x4kw intake fan. BELIMO 20N electric damper. Siemens technology

production, large air volume and low noise.

  Exhaust Fan

1x5.5kw exhaust fan. Multi-layer fiberglass filter. Siemens technology

production,large air volume and low noise.

  Air Pipe

Made of Galvanized steel sheet consisted of 4 pieces of straight pipe

750*750*1000, and 1piece of elbow.

  Filtering

Dual filtering structure. The primary filter can capture granules larger

than10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reach 98%.

  Heating System

  Burner

Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min

(20-60°C) Max. temperature at 80°C. Fuel consumption is 4-5kg/ vehicle.

  Heat Exchanger

 Made of stainless steel. The heat exchange rate reaches 85%.

Air make up cabinet

 The surface plate is powder coated galvanized plate, rust force strong, beautiful; The frame is made of high-quality hot-dip galvanized sheet repressionr , anti-rust and strong, more durable than ordinary surface treatment, more beautiful, nodes with no damage spot, rigidity.

  Oil tank support

Tank carefully made of high quality steel, the powder coating treatment, beautiful and durable.

  Fume pipe

Fume pipe made of  galvanized pipe, diameter of 190mm, 4 pieces of 1000mm long straight pipe, two 90 ° elbows.

 Lighting System

  Light tube

Ceiling light has 24 pieces of 36w lamps. Side light has 16 pieces of 36kw lamps. 900 Lux. the grade of lighting box’s dustproof and waterproof reach IP54 grade.

  Light box

 Welded galvanized plate, by the spray treatment, stiffness, repeated

disassembly easy deformation, surface brightness, color uniformity,
heat is not easy to change color.

Filtering System

  Primary filter

Grade G2 plate type fiber glass filter ; Dual filtering structure. The

primary filter can capture granules larger than 10μm.

  Celing filter

EU5 grade high efficient filter ;Ceiling filter capture granules bigger than 5μm.The air cleanliness in the working environment can reaches 98%.

  Floor filter

Multilayer glass Fiber. The air cleanliness in the working environment

can reach 98%.

Ceiling filter support

made of tube steel frame, thickness of 1.2mm, epoxy powder coating,

rust and strong, rigid, beautiful and durable, can be repeated disassembly,not easy to damage, easy to replace filter cotton.

Pollution Control System

Multi-layer fiberglass filter. Special configure with multilayer active carbon cabinet filter system.

Control system

  Control panel

 Standard control system

  Function

Use high quality electronic components. Painting, constant temperature painting , drying, lighting, painting time and drying time setting ;emergency stop switch, failure indication, over-temperature alarm indication,overheat,overload & shortcircuit protected,safe and reilable
