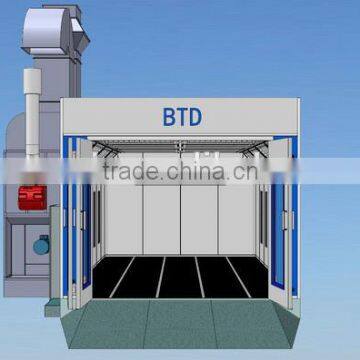

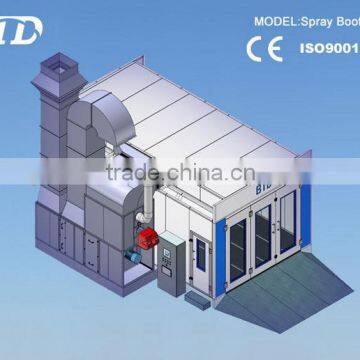

Spraying Booth Auto Paint Room, Car Spray Booth, Auto Paint Booth

Outside Size:(mm)

7110 x 5800x 3810(L x W x H)

Inside  Size:(mm)

7000 x 4000 x 2800(L x W x H)

Foundation and Floor

Basement

Full metal foundation, full grids, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing.

Surface area of foundation

27M²(Full Galvanized Grids )

Metal Basement

350mm height, the ventilation effect is better than traditional spray booth

Drive-in Ramps

3Units,each size:2000×1030 mm(B×H),diamond plate construction

Wall and Door

Wallboard and Roof Panel

Adopt high quality double construction fireproof rock wool insulation materials, thickness is 50mm

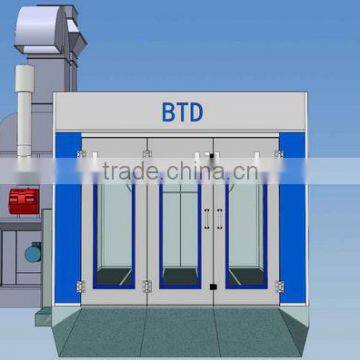

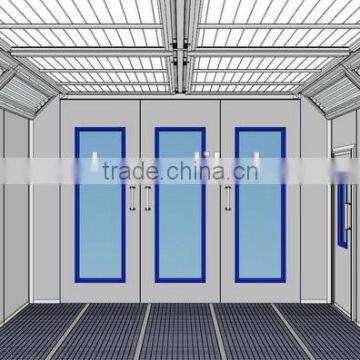

3-Folded EntranceDoor With Safety Glass Window

1 set, size of opening:3200x2700 mm(B x H), large tempering glass observation window, size is bigger and view is better than traditional spray booth

Operator’s Door With Safety Glass Window

Large opening size: 800x2000mm(B x H)hand-made, tempering glass observation window

Spray gun hanging system

Install hanging arm in cabin, convenient for operators to hang spray gun, etc.

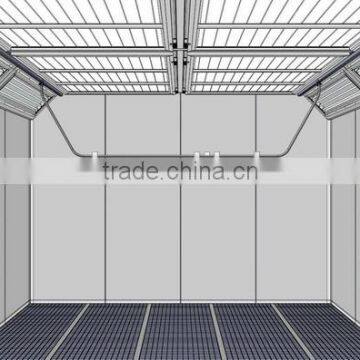

Lighting System

Ceiling Lighting

8Units, each4×58W, Total 1856W, grade of lighting box’s dustproof and waterproof reach IP54 grade.

Side Lighting

8Units, each2×58W, Total 928W, grade of lighting box’s dustproof and waterproof reach IP54 grade.

Brightness

≥ 1500 LUX

Filtration

Pre-filters

EU3 grade pocket filter system, filtration effect is much better

Ceiling Filters

EU5 grade high efficient filter

Bottom filter & exhaust filter

Fibreglass paint-stop filter, G2 Grade

Air

Ventilation System

Inlet fan (Direct Drive Motor)

Adopt big impeller turbo fan 11KW ,6-pole motor,970RMP ,380V,50HZ,CE

Outlet fan (Direct Drive Motor)

Adopt big impeller turbo fan 11KW , 6-pole motor,970RMP ,380V,50HZ,CE

Painting and baking exchange system

Solenoid valve+ pressure adjustment control cylinder driven damper exchange

Fan Capacity

32.000m³/h

Air Flow Speed

0.30m/s ,Inverter control

Heating System

Heating exchanger

Adopt high efficient heat-resistant stainless steel as cycling heat exchanger

Heating exchange capacity

320KW(340.000Kcal/H)

Burner Model

Adopt Italy RIELLOdiesel burnerRL34 , (340.000kcal/H),quicker heating and much better effect, more rest assure for quality

Heating Time

2-4 minutes (from 20 to 60º) under baking status, max baking temperature is 80°

Control Board

Control System

Inverter control system

PLC controller

Yes, PLC control system,more reliable, lower breakdown rate

Human-computer interface touching screen control system

Yes, touching screen control

Inverter control

Inverter control , more energy-saving, more economic

Function

Painting, warm painting, baking, leveling, emergency stop switch, inverter, alarm indication, failure indication, over-temperature alarm indication, baking delay stop protection
