Specifications
1,Sieve holes can not be locked easily.2,Steady operation with low noise.
3,simple structure.
4.CE.BV.ISO
Rotary screen Application
Rotary screen is suitable to screen materials which are wet and easy blocking : sand gold ore,coal,coke,lime ,etc. largest screened sizeis 100mm,middle size is 10-50mm, fine size is below 3mm.
Working principle of rotary screen

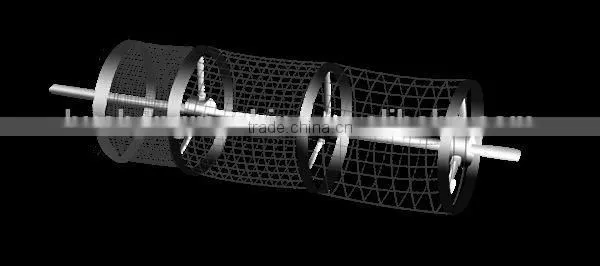

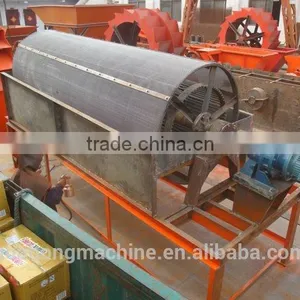

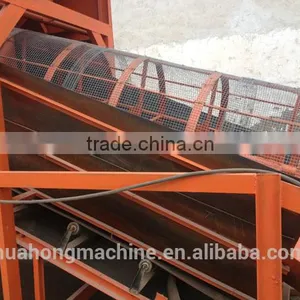

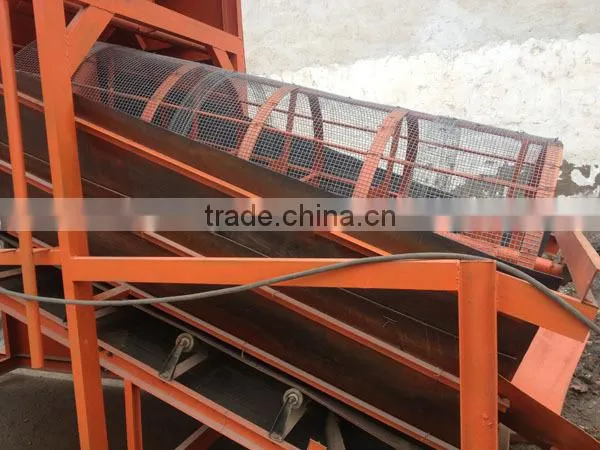

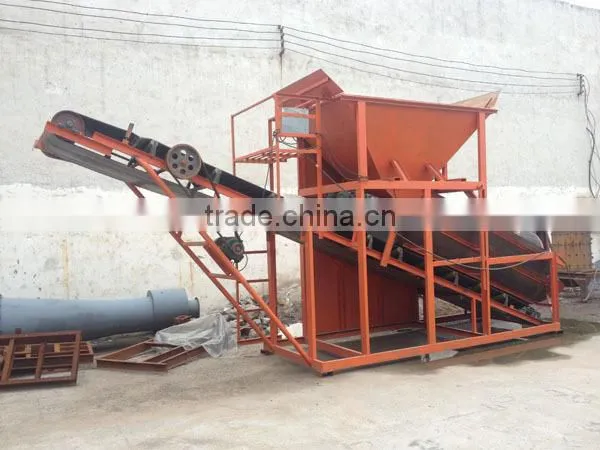

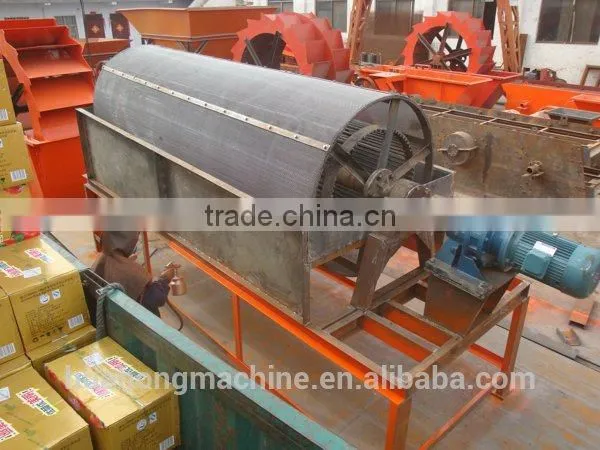

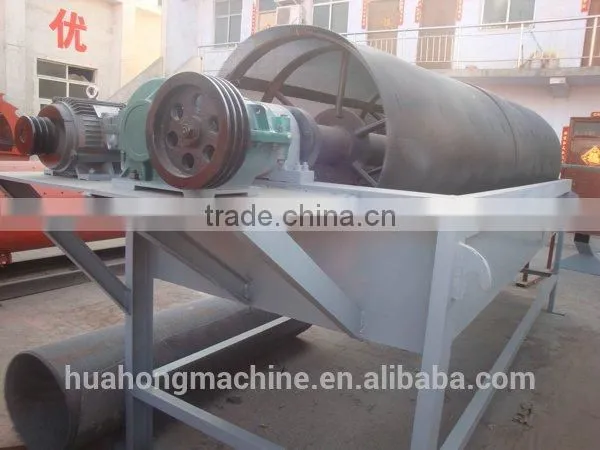

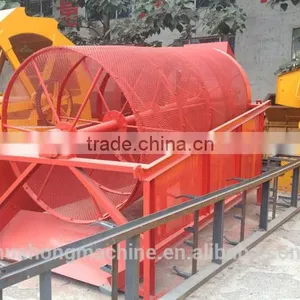

Rotary screen consists of five parts, which include hexagonal drum, rack, funnel, reducers and motor. After the broken stone into the drum, it is screened with the rotating of the drum, and on the other hand, stones with large size move forward along the drums gradient, screened gradually through different screen.
Features of rotary screen
1) Configured for classification, screening, washing
2) Large processing capacities
3) Smooth running, low noise
4) Longer screen life and less blocking
Application of rotary screen
1) Quarry: gravel, clay, mountain meal, sand, etc.
2) Coal Industry: lump coal, coal dust, coal washing, etc.
3) Cold Mine: gold screening and washing
4) Chemical Industry: sifting calcium oxide, compost
5) Metallurgy, construction, mineral-selecting, etc.
main technical parameter of drum sieve
Model |
Annual output (million tons) |
Handle amounts hour (t/h) |
outside diameter (mm) |
Length(m) |
Power(kw) |
GTS-3 |
3 |
10.4 |
Φ1200 |
3.5 |
4 |
GTS-5 |
5 |
13.8 |
Φ1200 |
4 |
5.5 |
GTS-10 |
10 |
27.8 |
Φ1400 |
5 |
7.5 |
GTS-15 |
15 |
47.7 |
Φ1500 |
6 |
