Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale

Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale thumbnail-1
Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale thumbnail-2

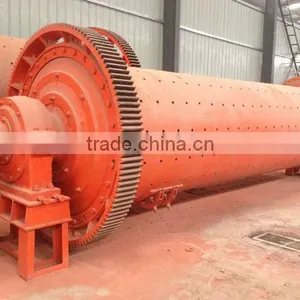

Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale thumbnail-3
Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale thumbnail-4
Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale thumbnail-5

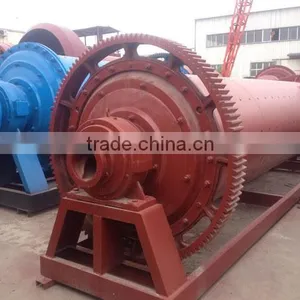

Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale thumbnail-6
Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale photo-1

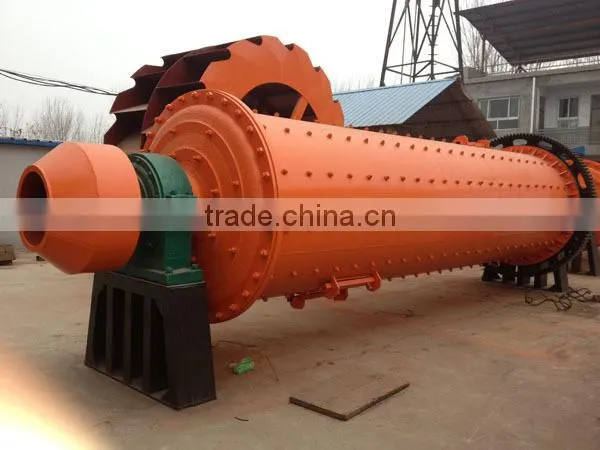

Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale photo-2

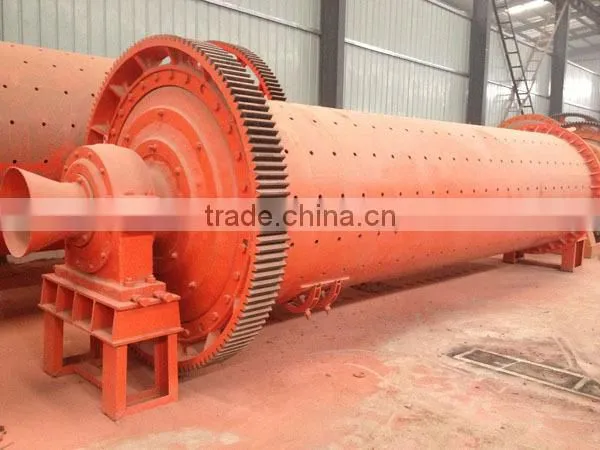

Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale photo-3
Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale photo-4
Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale photo-5
Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale photo-6
US$ 1,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Zhengzhou Huahong Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjing Port China or others
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type AC Motor
Power(W) 22 kw
Capacity(t/h) 1.1-3.5 t/h
Place of Origin China
Brand Name Huahong
Model Number refer to specifications
Dimension(L*W*H) refer to specifications
Weight 4.5 t
Certification BV CE ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. dry and wet types.
2. lattice and overflow types, or center-discharge and side-discharge types
3. Bearing MiII and Bushing







Newest mineral processing ball mill with competitive ball mill prices from direct supplier Huahong Brand





Brief introduction of Ball mill



Ball mill is an efficient machine for fine powder grinding after the crushing process. There are two ways of ball mill grinding: the dry way and the wet way. It is used to grind many kinds of mineral ores and other materials, or to select mine. Ball mill is also widely used in the building and chemical industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.



 Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale

Structure of Ball mill



The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).



Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale

 Ball Mill Working Principle



Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials into fine powder over a period of several hours. The ground materials are discharged through the discharging board thus the grinding process is finished.





 Technical Specifications Of Ball Mill





Model

Rotation

speed

(r/min)

Grinding media loading (t)

feed size(mm)



Discharge size (mm)

Output

(t/h)

Power (kw)

Weight (t)

Φ900×1800

38

1.5

≤ 20

 0.075-0.89



0.65-2

 18.5

3.6

Φ900×2100

38

1.5

≤ 15

0.075-0.89

0.5-2

15

3.9

Φ900×2400

38

1.8

≤15

0.075-0.89

0.7-2.8

18.5

4.5

Φ900×3000

38

2.51

≤15

0.075-0.89

0.8-3.5

22

5.0

Φ1200×2400

32

3.8

≤20

0.074-0.4

0.9-4.8

30

9.2

Φ1200×2800

32

4.0

≤20

0.074-0.4

1.0-5.0

30

9.5

Φ1200×3000

32

4.5

≤20

0.074-0.4

1.2-5.6

37

11.5

Φ1200×4500

30

5.5

≤20

0.074-0.4

1.5-6.0

55

13.6

Φ1500×3000

27

7.0

≤25

0.074-0.4

2.5-6.5

75

15.0

Φ1500×3500

27

8.5

≤25

0.074-0.4

3.0-8.2

75

15.6

Φ1500×4500

27

11

≤25

0.074-0.4

4-10

95

21

Φ1500×5700

27

12

≤25

0.074-0.4

4-13

110

23.5

Φ1830×3000

24

12

≤25

0.074-0.4

5-15

130

31

Φ1830×3600

24

13

≤25

0.074-0.4

5-16

130

32

Φ1830×4500

24

14

≤25

0.074-0.4

5-18

155

33.5

Φ1830×7000

24

21

≤25

0.074-0.4

6-20

210

36

Φ2100×3000

24

18

≤25

0.074-0.4

7-26

210

38

Φ2100×3600

24

21

≤25

0.074-0.4

7-35

215

39.5

Φ2100×4500

24

26

≤25

0.074-0.4

8-42

245

43.5

Φ2200×3000

21

28

≤25

0.074-0.4

8-43

245

46

Φ2200×4800

21

35

≤25

0.074-0.4

9-45

285

48

Φ2400×3000

21

23

≤25

0.074-0.4

8-60

285

55

Φ2700×4500

21

48

≤25

0.074-0.4

12-83

475

79





The final products

Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale

 Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale

Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale

Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale

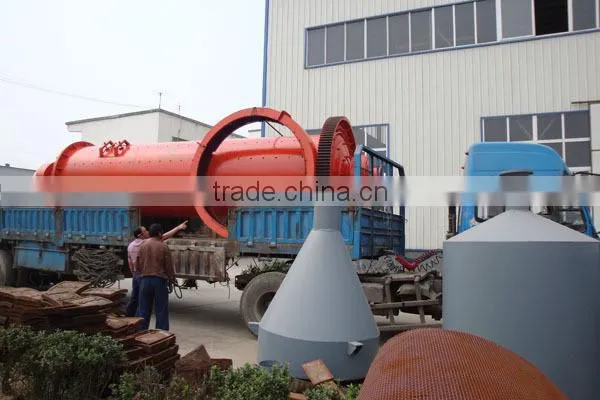

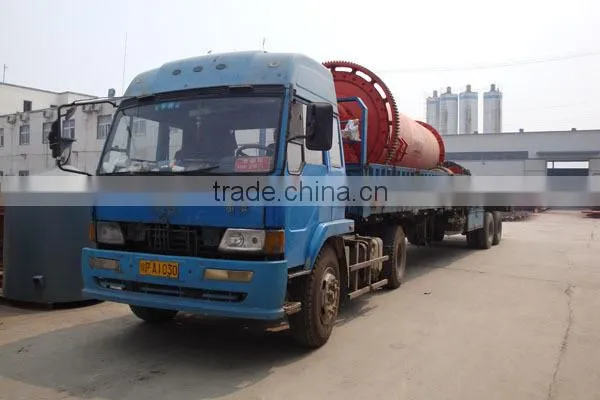

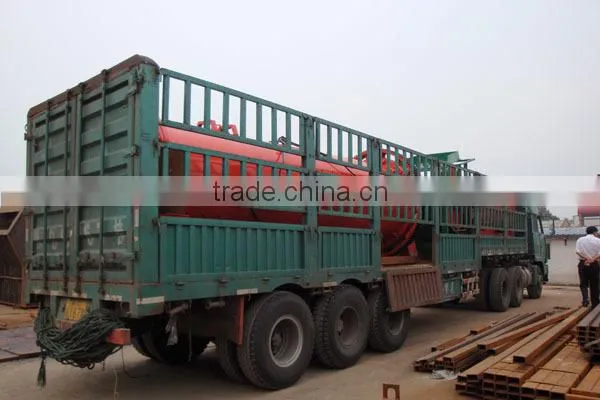

Delivery site

 Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale

Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale

 Large Capacity And Energy Saving Wet And Dry Ball Mill For Sale
