Specifications
1.High crushing ratio, high output,2. Even granule, simple structure
3.Easy to maintain and economic operation
Zhengzhou Huahong compay product all types of mining machine and supply scope of gypsum ore ball mill, hematite ball mill, iron ore ball mill, copper ore ball mill, dolomite ball mill, bentonite ball mill, limestone ball mill, concrete ball mill, dry ball mill, wet ball mill,AAC plant ball mill,ore dressing plant ball mill etc, if you want ball mill price, please send us message or call us.
Application of ball grinding mill
It is a kind of key equipment for milling the materials into powders after they are crushed. It is widely used for cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and soon, and can make the dry and wet milling on all kinds of ores and other grindability materials.

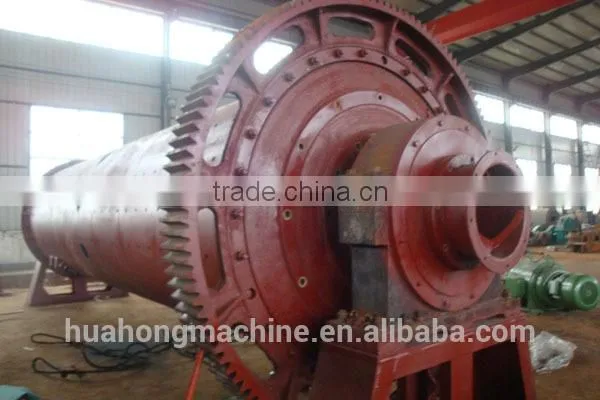

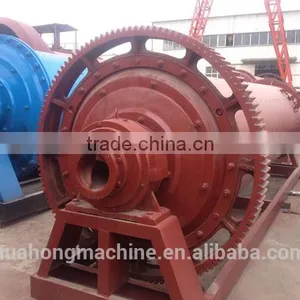

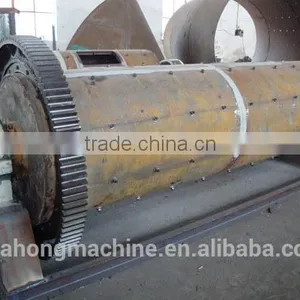

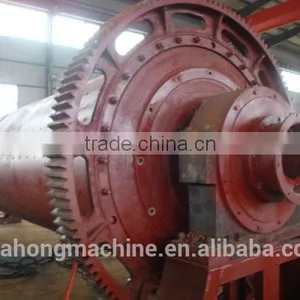

Working principle of ball grinding mill
It is horizontal type and cylinder rotating device, has two cabins, grate energy saving ball mil, and its outside drives along gear. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device, In this warehouse, there is a ladder scale board or ripple scale board, and different specification steel balls are installed on the scale board, when the barrel body rotates and then produces centrifugal force, at this time, the steel ball is carried to some height and falls to make the material grinding and striking. After grinding, coarsely in the first warehouse, the material then enters into the second warehouse for regrinding with the steel ball and scale board In the end, The powder is discharged by output material board and the end products are completed.

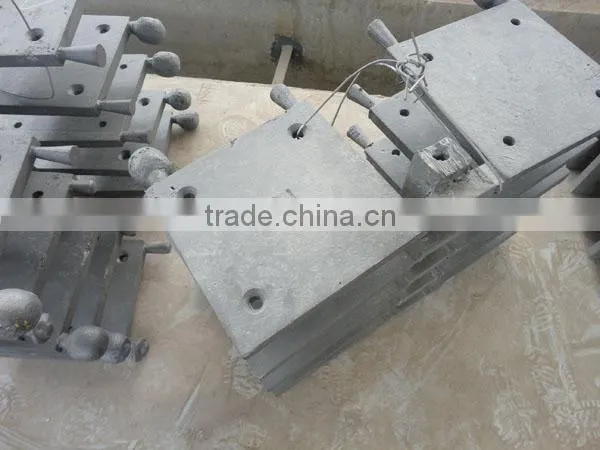

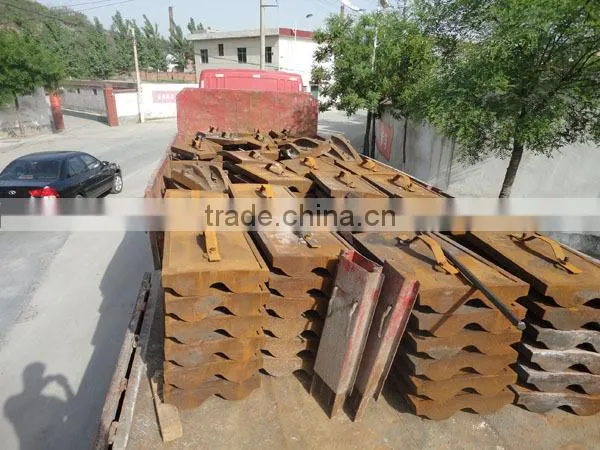

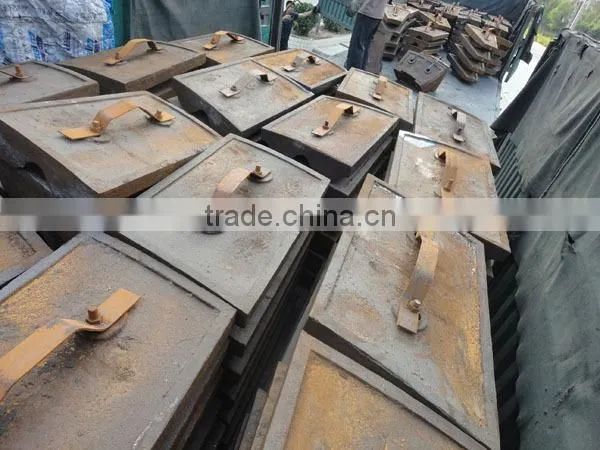

Ball and liner plate of ball grinding mill
Features of ball grinding mill
1, The ball mill is made up of feeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control) and so on.
2, The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear.
3, The cylinder is wearable well and bears wearable lining board.
4, This machine runs steadily and works reliably.
Technical Specifications Of Ball Mill
|
Model |
Rotation speed (r/min) |
Grinding media loading (t) |
feed size(mm) |
Discharge size (mm) |
Output (t/h) |
Power (kw) |
Weight (t) |
Φ900×1800 |
38 |
1.5 |
≤ 20 |
0.075-0.89
|
0.65-2 |
18.5 |
3.6 |
Φ900×2100 |
38 |
1.5 |
≤ 15 |
0.075-0.89 |
0.5-2 |
15 |
3.9 |
Φ900×2400 |
38 |
1.8 |
≤15 |
0.075-0.89 |
0.7-2.8 |
18.5 |
4.5 |
Φ900×3000 |
38 |
2.51 |
≤15 |
0.075-0.89 |
0.8-3.5 |
22 |
5.0 |
Φ1200×2400 |
32 |
3.8 |
≤20 |
0.074-0.4 |
0.9-4.8 |
30 |
9.2 |
Φ1200×2800 |
32 |
4.0 |
≤20 |
0.074-0.4 |
1.0-5.0 |
30 |
9.5 |
Φ1200×3000 |
32 |
4.5 |
≤20 |
0.074-0.4 |
1.2-5.6 |
37 |
11.5 |
Φ1200×4500 |
30 |
5.5 |
≤20 |
0.074-0.4 |
1.5-6.0 |
55 |
13.6 |
Φ1500×3000 |
27 |
7.0 |
≤25 |
0.074-0.4 |
2.5-6.5 |
75 |
15.0 |
Φ1500×3500 |
27 |
8.5 |
≤25 |
0.074-0.4 |
3.0-8.2 |
75 |
15.6 |
Φ1500×4500 |
27 |
11 |
≤25 |
0.074-0.4 |
4-10 |
95 |
21 |
Φ1500×5700 |
27 |
12 |
≤25 |
0.074-0.4 |
4-13 |
110 |
23.5 |
Φ1830×3000 |
24 |
12 |
≤25 |
0.074-0.4 |
5-15 |
130 |
31 |
Φ1830×3600 |
24 |
13 |
≤25 |
0.074-0.4 |
5-16 |
130 |
32 |
Φ1830×4500 |
24 |
14 |
≤25 |
0.074-0.4 |
5-18 |
155 |
33.5 |
Φ1830×7000 |
24 |
21 |
≤25 |
0.074-0.4 |
6-20 |
210 |
36 |
Φ2100×3000 |
24 |
18 |
≤25 |
0.074-0.4 |
7-26 |
210 |
38 |
Φ2100×3600 |
24 |
21 |
≤25 |
0.074-0.4 |
7-35 |
215 |
39.5 |
Φ2100×4500 |
24 |
26 |
≤25 |
0.074-0.4 |
8-42 |
245 |
43.5 |
Φ2200×3000 |
21 |
28 |
≤25 |
0.074-0.4 |
8-43 |
245 |
46 |
Φ2200×4800 |
21 |
35 |
≤25 |
0.074-0.4 |
9-45 |
285 |
48 |
Φ2400×3000 |
21 |
23 |
≤25 |
0.074-0.4 |
8-60 |
285 |
55 |
Φ2700×4500 |
21 |
48 |
≤25 |
0.074-0.4 |
12-83 |
475 |
79 |

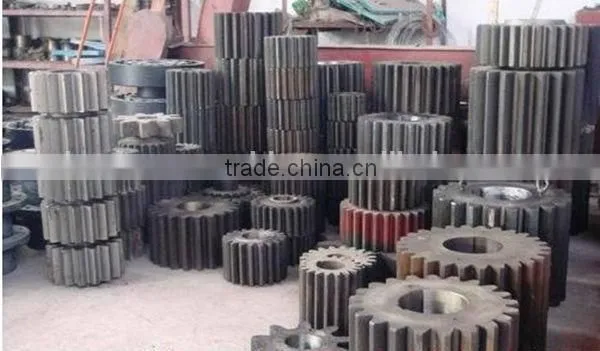

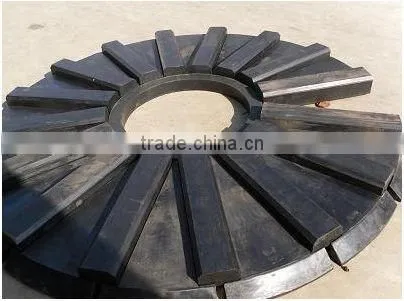

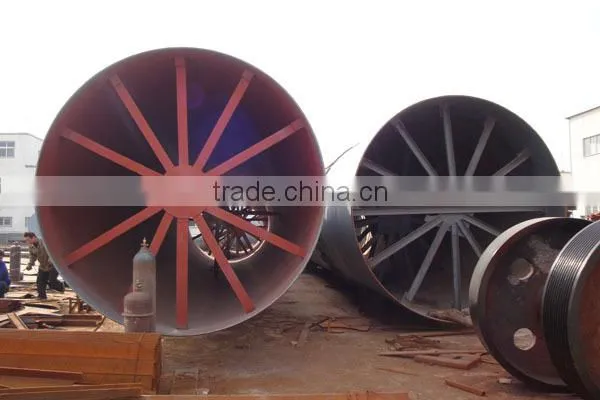

Show the spare parts of ball mill
Zhengzhou Huahong Machinery&Equipment Co., Ltd is a famous manufacturer of mining and sandstone production equipment in China. The main products include mineral-processing equipment such as crusher, ball mill, magnetic separator, flotation machine, rotary kiln and sandstone production equipment such as vibrating screen, sand making machine.
The quality guarantee is 12 months after finishing the trial run of machines which has been shipped to the buyer side. If any part (excluding easily damaging parts) is found defective in quality within warranty period, we would like to replace it for free. After warranty, spare parts can be replaced based on favorable price.
Why choose us
1.We are real manufacture factory ( not dealer)
All machineries from Zhengzhou Huahong Mining Machinery Manufactory are made by ourselves, with lower price, good quality and assured full after service; So please buy machine from factory.
2. With senior engineers for research and development.
3. We’d like to recommend a suitable type for you and send you a best quotation.
4. If you are new for this business, we will help you.
