Specifications
1.High crushing ratio, high output,2. Even granule, simple structure
3.Easy to maintain and economic operation
1.Performance characteristics of belt conveyor :
The conveyor belt our company produces is with the advantages of large conveyor capacity, simple structure, easy maintenance, standardized components. It’s widely used in mining, metallurgy, coal and other departments to transport loose materials or items. In accordance with the requirements of transmission process,the conveyor can be used as a single transmission ,also can be more than one portfolio or the composition with other transmission equipment level or inclined conveyor system to meet the needs of different types of operating line.
2. working principle of belt conveyor

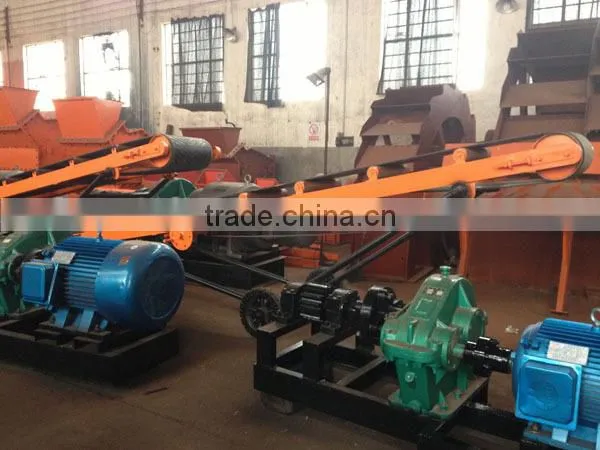

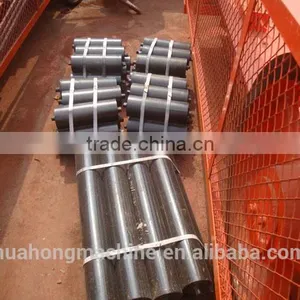

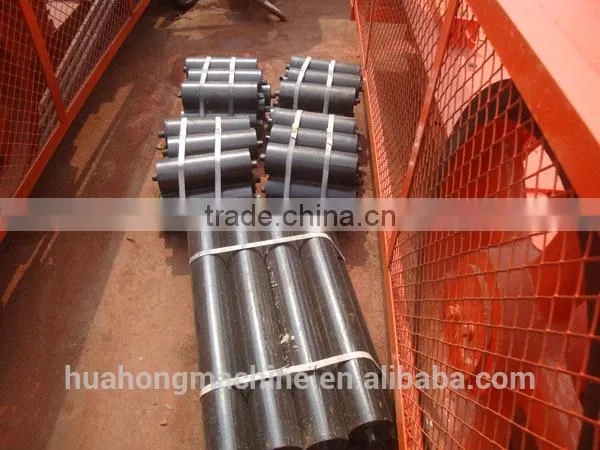

The machine is mainly composed of the rack, drive roller, divert roller, drive motor, deceleration body, roller and adhesive tape, etc.. Based on motor-driven, with cycloid speed reducer and then the secondary deceleration driven by sprocket,it takes drive drum for continuous rotation movement. Because of the role of friction, adhesive tape, together with the drive drum,makes reciprocating rotating movement. Materials are discharged after being sent to the bend pulley by the adhesive tape so as to achieve the purpose of sending a variety of materials.
3.Application of belt conveyor
Conveyor belt can be used in the ambient temperature of -20 ~ +40 ℃,and the temperature of distribution of materials is below 50 ℃.
>Remarks:
1.The table specified capacity is relative to crushed stone with loose volume density 1.6t/m3.
2.Belt inclined angle should be less than 18°.
3.The company is capable of making special designing as per the customers’ requirements.
4.Parameter of belt conveyor
Belt Width(mm) |
Belt Length (m) /Power (Kw) |
Belt Speed(m/s) |
Capacity (t/h) |
||
400 |
≤12/1.5 |
(12-20)/2.2 |
(20-25)/5 |
0.8-2.0 |
40-80 |
500 |
≤12/3 |
(12-20)/4 |
(20-30)/5.5 |
0.8-2.0 |
80-190 |
650 |
≤12/4 |
(12-20)/5.5 |
(20-30)/7.5 |
0.8-2.0 |
130-330 |
800 |
≤6/4 |
(6-15)/5.5 |
(15-25)/7.5 |
1.0-2.0 |
280-500 |
1000 |
≤10/5.5 |
(10-20)/7.5 |
(20-25)/11 |
1.0-2.0 |
430-850 |
1200 |
≤10/4 |
(10-20)/11 |
(20-25)/15 |
1.0-2.0 |
650-1200 |

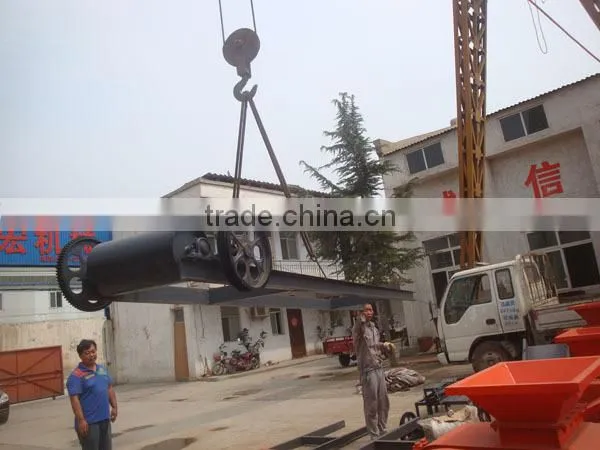

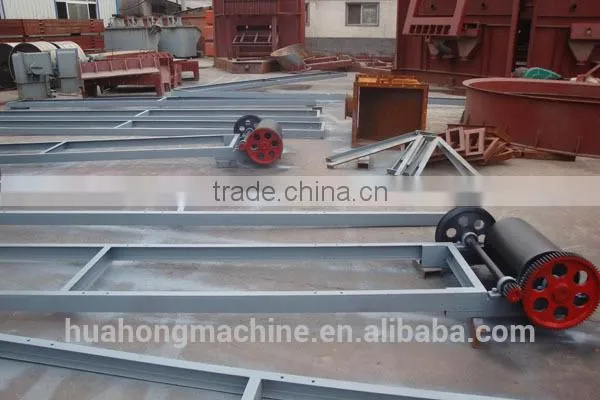

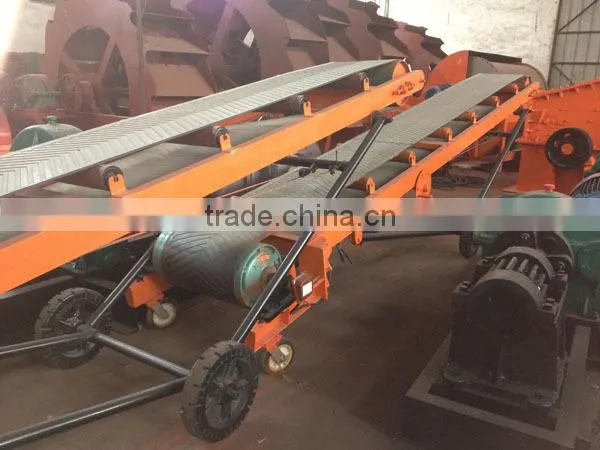

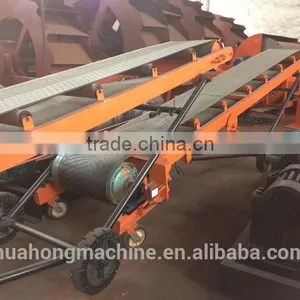

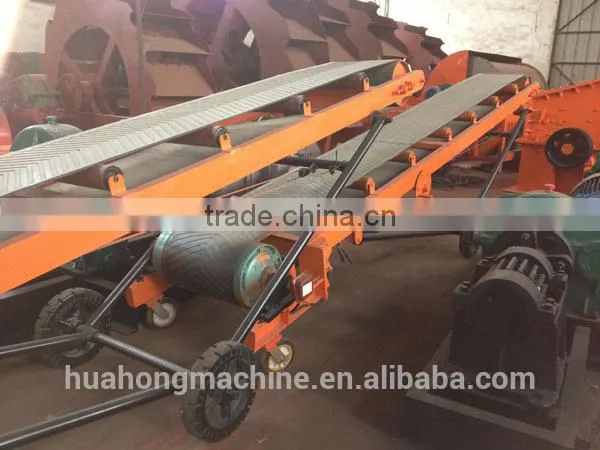

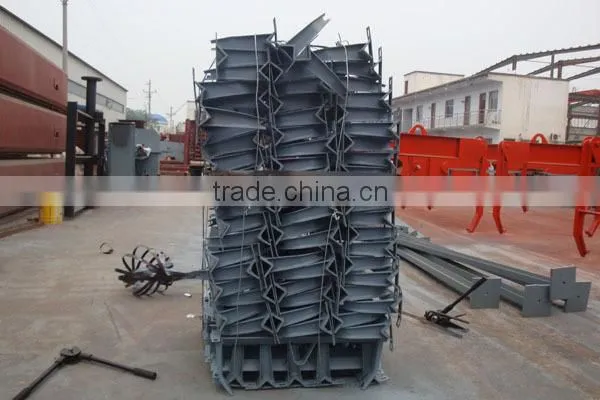

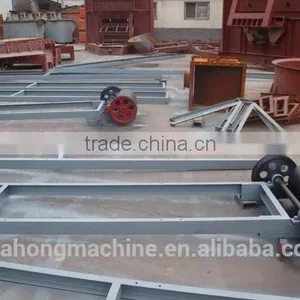

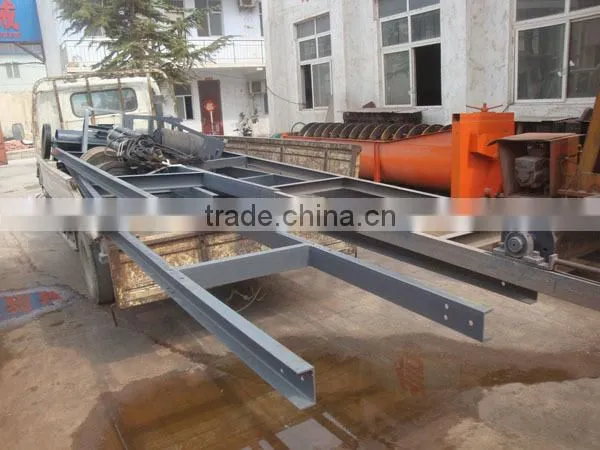

5.details of belt conveyor
Zhengzhou Huahong Machinery&Equipment Co., Ltd is a famous manufacturer of mining and sandstone production equipment in China. The main products include mineral-processing equipment such as crusher, ball mill, magnetic separator, flotation machine, rotary kiln and sandstone production equipment such as vibrating screen, sand making machine.
The quality guarantee is 12 months after finishing the trial run of machines which has been shipped to the buyer side. If any part (excluding easily damaging parts) is found defective in quality within warranty period, we would like to replace it for free. After warranty, spare parts can be replaced based on favorable price.
Why choose us
1.We are real manufacture factory ( not dealer)
All machineries from Zhengzhou Huahong Mining Machinery Manufactory are made by ourselves, with lower price, good quality and assured full after service; So please buy machine from factory.
2. With senior engineers for research and development.
3. We’d like to recommend a suitable type for you and send you a best quotation.
4. If you are new for this business, we will help you.
