Specifications
1. ball mill with big feeding part2. ball mill with smooth tranimission and reliable operation
3. saving energy about 30%

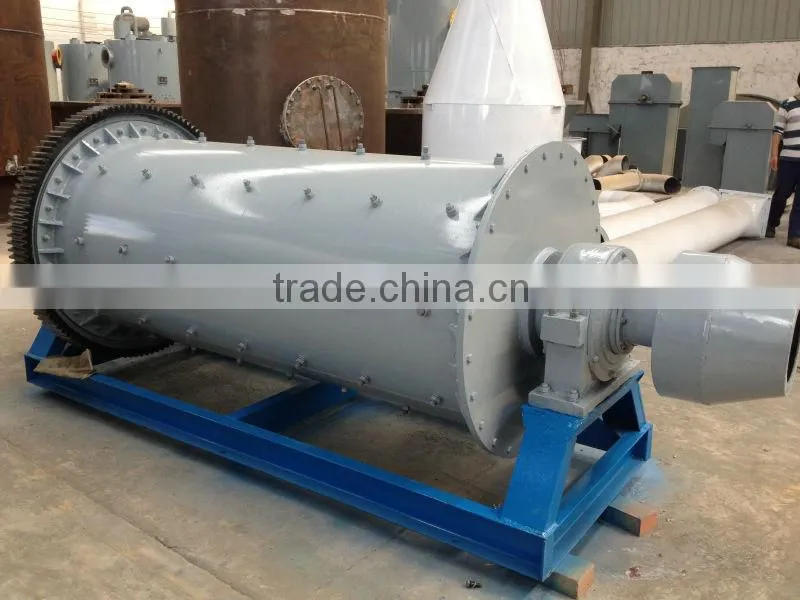

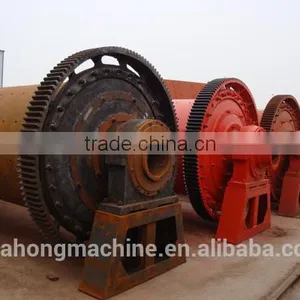

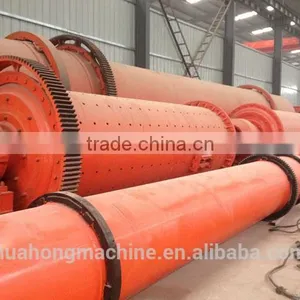

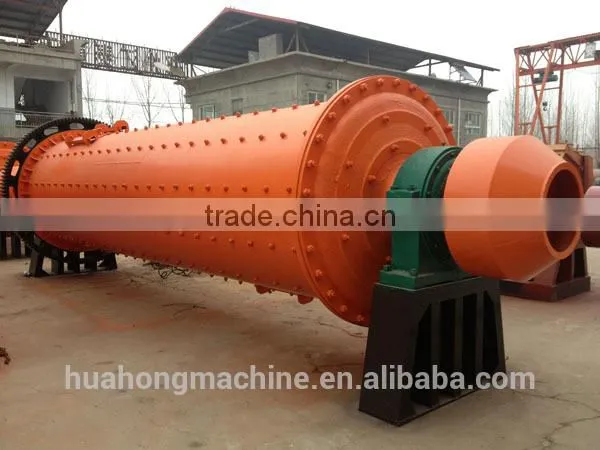

small energy-saving mineral stone grinding Ball Mill machine
Intruduction Of Ball Mill
Ball mill is the key equipment for materials to be grinded after being crushed.Ball mill is used for grinding various ores and other materials, are widely used in mineral processing, building materials, chemical industry and other industry, can be divided into dry and wet ball mill. It can be divided into tabular type and flowing type two according to different discharge ways.
Working Principle Of Ball Mill
When the Ball Mill works, the torque force produced by motor and speed reducer drives big and small gears rotating, so foes the barrel. When the barrel rotates, steel balls or other grinding media in the barrel are lifted to a certain height and fall down freely, so materials in the barrel are impacted. Grinding media mixed with materials are impacted and grinded continuously. The final product will be discharged from outlet when it meets the request, so the grinding process is finished.
Technical Specifications Of Ball Mill
|
Model |
Rotation speed (r/min) |
Grinding media loading (t) |
feed size(mm) |
Discharge size (mm) |
Output (t/h) |
Power (kw) |
Weight (t) |
Φ900×1800 |
38 |
1.5 |
≤ 20 |
0.075-0.89
|
0.65-2 |
18.5 |
3.6 |
Φ900×2100 |
38 |
1.5 |
≤ 15 |
0.075-0.89 |
0.5-2 |
15 |
3.9 |
Φ900×2400 |
38 |
1.8 |
≤15 |
0.075-0.89 |
0.7-2.8 |
18.5 |
4.5 |
Φ900×3000 |
38 |
2.51 |
≤15 |
0.075-0.89 |
0.8-3.5 |
22 |
5.0 |
Φ1200×2400 |
32 |
3.8 |
≤20 |
0.074-0.4 |
0.9-4.8 |
30 |
9.2 |
Φ1200×2800 |
32 |
4.0 |
≤20 |
0.074-0.4 |
1.0-5.0 |
30 |
9.5 |
Φ1200×3000 |
32 |
4.5 |
≤20 |
0.074-0.4 |
1.2-5.6 |
37 |
11.5 |
Φ1200×4500 |
30 |
5.5 |
≤20 |
0.074-0.4 |
1.5-6.0 |
55 |
13.6 |
Φ1500×3000 |
27 |
7.0 |
≤25 |
0.074-0.4 |
2.5-6.5 |
75 |
15.0 |
Φ1500×3500 |
27 |
8.5 |
≤25 |
0.074-0.4 |
3.0-8.2 |
75 |
15.6 |
Φ1500×4500 |
27 |
11 |
≤25 |
0.074-0.4 |
4-10 |
95 |
21 |
Φ1500×5700 |
27 |
12 |
≤25 |
0.074-0.4 |
4-13 |
110 |
23.5 |
Φ1830×3000 |
24 |
12 |
≤25 |
0.074-0.4 |
5-15 |
130 |
31 |
Φ1830×3600 |
24 |
13 |
≤25 |
0.074-0.4 |
5-16 |
130 |
32 |
Φ1830×4500 |
24 |
14 |
≤25 |
0.074-0.4 |
5-18 |
155 |
33.5 |
Φ1830×7000 |
24 |
21 |
≤25 |
0.074-0.4 |
6-20 |
210 |
36 |
Φ2100×3000 |
24 |
18 |
≤25 |
0.074-0.4 |
7-26 |
210 |
38 |
Φ2100×3600 |
24 |
21 |
≤25 |
0.074-0.4 |
7-35 |
215 |
39.5 |
Φ2100×4500 |
24 |
26 |
≤25 |
0.074-0.4 |
8-42 |
245 |
43.5 |
Φ2200×3000 |
21 |
28 |
≤25 |
0.074-0.4 |
8-43 |
245 |
46 |
Φ2200×4800 |
21 |
35 |
≤25 |
0.074-0.4 |
9-45 |
285 |
48 |
Φ2400×3000 |
21 |
23 |
≤25 |
0.074-0.4 |
8-60 |
285 |
55 |
Φ2700×4500 |
21 |
48 |
≤25 |
0.074-0.4 |
12-83 |
475 |
79 |

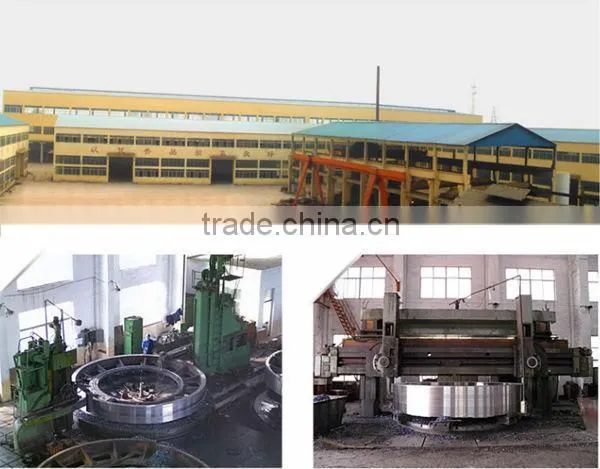

Zhengzhou Huahong Machinery&Equipment Co., Ltd is a famous manufacturer of mining and sandstone production equipment in China. The main products include mineral-processing equipment such as crusher, ball mill, magnetic separator, flotation machine, rotary kiln and sandstone production equipment such as vibrating screen, sand making machine.
The quality guarantee is 12 months after finishing the trial run of machines which has been shipped to the buyer side. If any part (excluding easily damaging parts) is found defective in quality within warranty period, we would like to replace it for free. After warranty, spare parts can be replaced based on favorable price.
How about the quality of our cement ball mill?
v Our ball mill meets the national and international standard
v We take a test on every ball mill before delivery.
How about price of ball mill?
v We can give the lowest price of the ball mill than others
v We do quotation of cement ball mill as soon as possible for any customers
v Discount of cement ball mill can be given according to quantity.
How about the after-sale service of your company?
v Our engineer is available to installcement ball mill overseas.
v The guarantee period of our cement ball mill is one year.
