Economical Huahong Cement Brick Making Machine
US$ 1 - 9,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Cement
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao shanghai tianjin guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Huahong Leading Technology Brick Making Machine for Hot SaleUS$ 1 - 9,999MOQ: 1 Set -
Spiral Sand Washer Machinery Hot Sale in AfricaUS$ 1 - 9,999MOQ: 1 Set
-
Cement Brick Making Machine With High QualityUS$ 1 - 99,999MOQ: 1 Set
-
Professional Manufacturer Brick Molding MachineUS$ 1 - 99,999MOQ: 1 Set
-
New Designed Red Clay Brick Molding MachineBrick Molding Machine Produced in ZhengzhouUS$ 1 - 99,999MOQ: 1 Set
Condition
New
Type
Hollow Block Making Machine
Brick Raw Material
Cement
Processing
Brick Cutting Machine
Method
Hydraulic Pressure
Automatic
Yes
Capacity
12-18
Place of Origin
Henan, China
Brand Name
HUAHONG
Model Number
QT
Voltage
380v
Power
26.8
Dimension(L*W*H)
6120*2240*2750
Certification
CE&ISO
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Semi-automatic
2.Multi-function
3.Small investment,high output
4.Hydrualic, high pressure
5.CE,ISO9001, good quality
Product advantages
1) It's manpower saving for automatic material feeding, automatic pallet conveyance, automatic leading-out and hydraulic molding.
2) The hydraulic elements are from Taiwan ASHUN. Hydraulic press and vibration work together to ensure high strength and high density of the bricks.
3) The machine frame is welded by special thick steel rectangle welding techniques, thus it is strong, durable and can resist vibration. We use the steel produced by Shougang Group, The service life of main machine is more than ten years.
4) It uses arms to connect the lower mould to make it work steadily and synchronously. The forced demolding synchronous structure gives the bricks perfect shape and increase the rate of finished products.

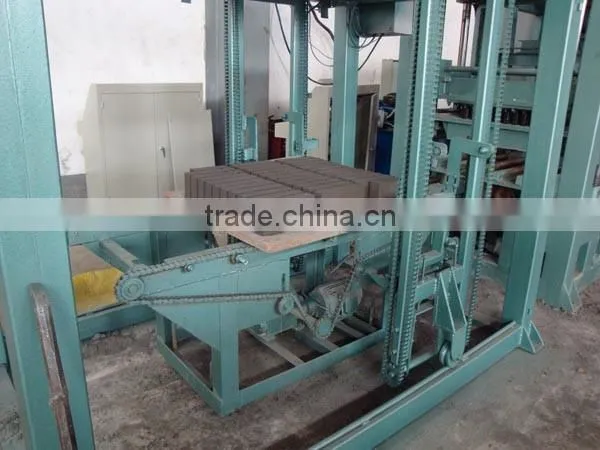

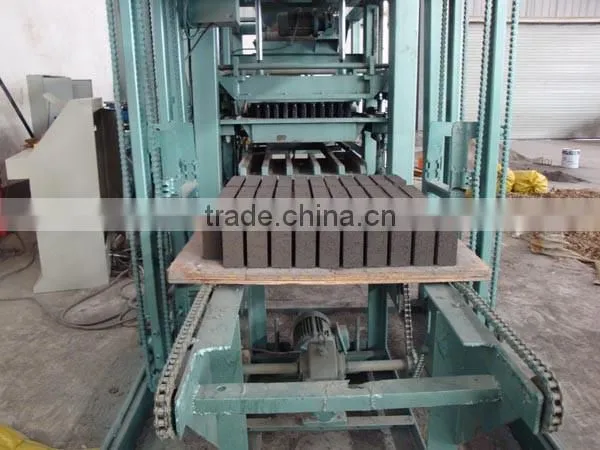

5) There is electric motor in brick conveyor machine, it convey the pallets when the bricks come out, it prevent collisions between pallets and avoid the break of bricks.

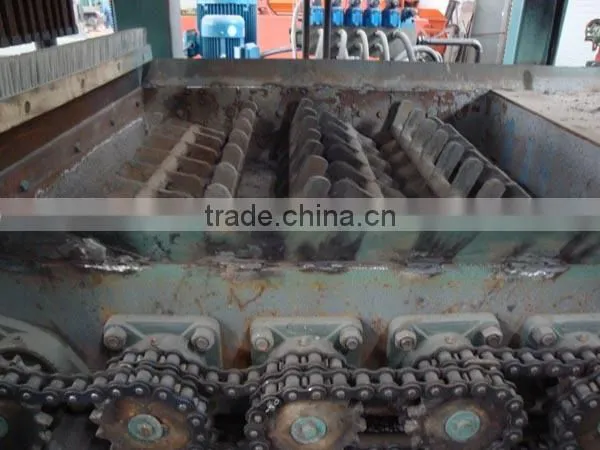

6) The material feeding system use broken arch structure, when feeding materials, kick fork swings back and forth quickly to feed materials evenly, and fill the mold with materials in every corner. It ensure the high rate of finished products, and the strength of bricks is higher.
7) Vibration motor use heat-resistant motor which can continue working safely under 130°C, the extreme temperature is up to 180°C, it's especially suitable for high temperature region.
8) Circulating water cooling system. The cooler is customized specially, the water pipe inside are all copper pipe, it have very good cooling effect. So the machine can produce normally in hot weather in Africa.

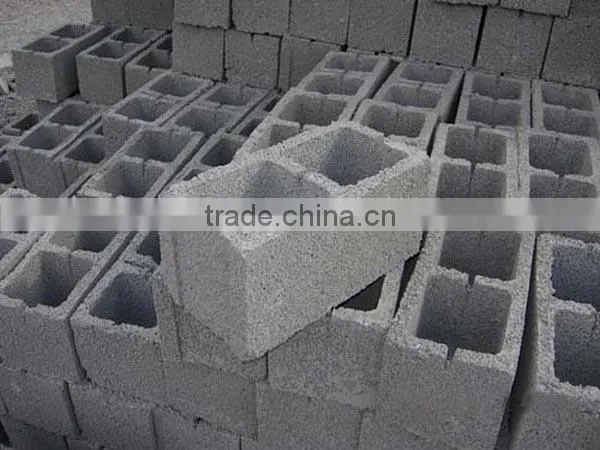

9) Multi function and high productivity. It can produce standard brick, block, hollow block and pavement by changing
main thchnical parameters
|
Model Parameters |
QT10-15 |
QT8-15 |
QT6-15 |
QT4-15 |
QT3-15 |
|
Pallet Size (mm) |
1080 x 850 x 40 |
920x 850 x40 |
850 x 680 x 40 |
900 X 540 X 40 |
700 x 540 x 35 |
|
Vibration Method |
HYDRAULIC TABLE VIRATION + PRESS |
|||||
Vibration Frequency (Times/min.) |
3600~6000 |
2800~4000 |
4000 |
4000 |
4000 |
|
Molding Cycle (Seconds) |
12-18 |
12-18 |
12-18 |
12-18 |
12-18 |
|
Pressure (Mpa) |
25 |
25 |
20 |
16 |
16 |
|
Power Cons (Kw) |
36.25 |
36.25 |
29 |
26.8 |
20.5 |
|
Total Weight (Tons) |
13.8 |
11.8 |
8.6 |
6.8 |
5.8 |
|
|
Dimension (L x W x H) MM |
7200*2290*2825 |
7200*2100*2825 |
6670*2245*2780 |
6120*2240*2750 |
5800*2130*2600 |
|
