professional manufacturer Brick molding machine

Product description:

1.The brick extruding machine is suitable for producing various solid and  hollow brick such as gangue ,fly ash,clay.

2.The drift adopt the wear-resisting metal powder spray coating technology;

3.The superior mixer shaft,the drift macro axis,the up and down body etc.

4.All products have passed the aging,quenching and tempering process;

5.The speed reducer gears are all the hard tooth surface;

6.The cluch uses the screw compressor patent technology,greatly improve the working life of equipment.

7.At the same time,this machine has rational design,compact structure,smooth operation,can greatly reduce the consumption power by vibration in equipment operation process

Whole process:

1)Material is put into box feeder to make sure continuous feeding.There is a reamer near the discharging hole of box feeder.It can crash big block.

2)Then material is conveyed to roller crusher and crashed into powdery.

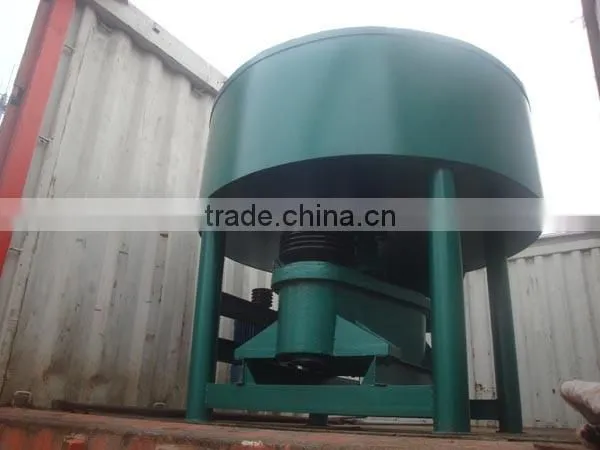

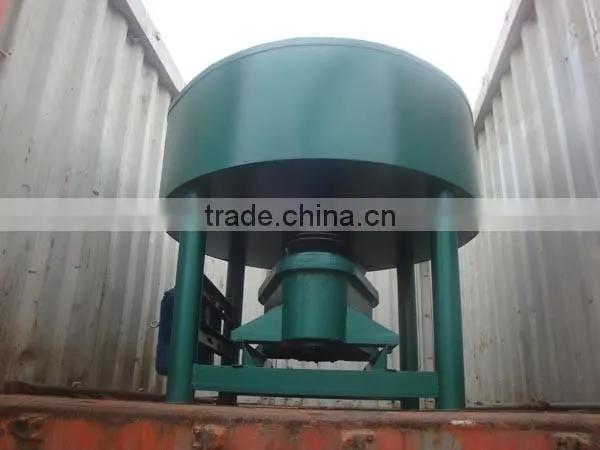

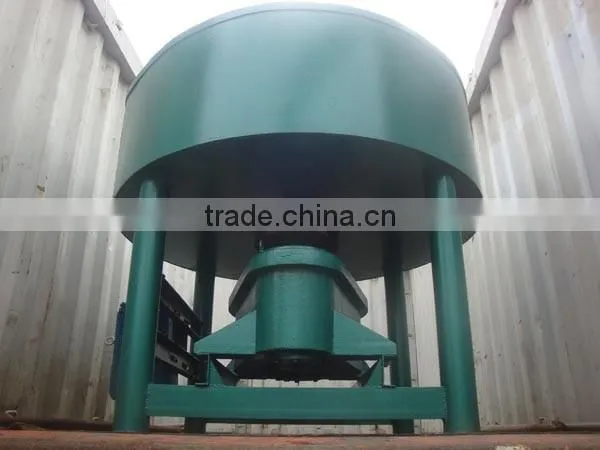

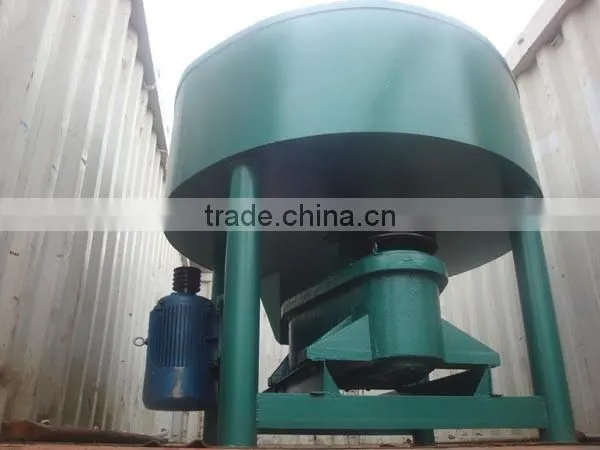

3)After that material is conveyed to double shaft mixer.Add water when mixing the material to make it more even.

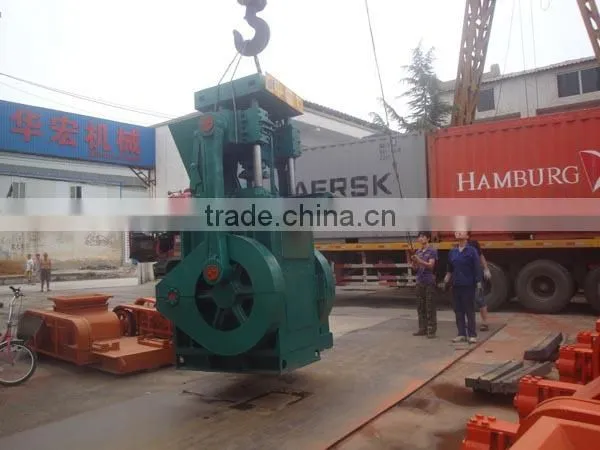

4)Material is conveyed to brick vacuum extruder.The machine process the material and squzees out  mud strip.

5)Strip cutter cut the mud strip into equal length strip and convey them to cut adobe plate

6)Adobe cutter cut the brick strip into green brick adobes.

7)Green bricks pass stoving and sintering processes become red brick.

Model

Parameters

QT10-15

QT8-15

QT6-15

QT4-15

QT3-15

Pallet Size (mm)

1080 x 850 x 40

920x 850 x40

850 x 680 x 40

900 X 540 X 40

700 x 540 x 35

Vibration Method

HYDRAULIC TABLE VIRATION + PRESS

Vibration Frequency (Times/min.)

 3600~6000

2800~4000

4000

 4000

4000

Molding Cycle (Seconds)

12-18

12-18

12-18

12-18

12-18

Pressure (Mpa)

25

25

20

16

16

Total Weight (Tons)

13.8

11.8

8.6

6.8

5.8

Dimension

(L x W x H) MM

7200*2290*2825

7200*2100*2825

6670*2245*2780

6120*2240*2750

5800*2130*2600
