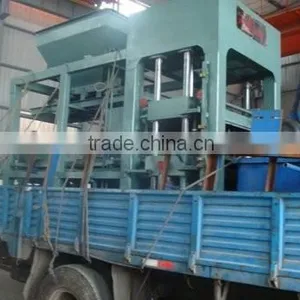

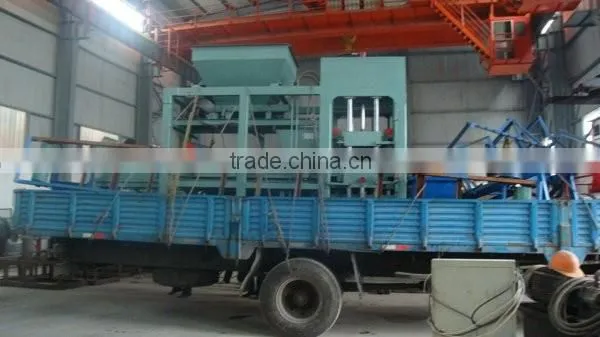

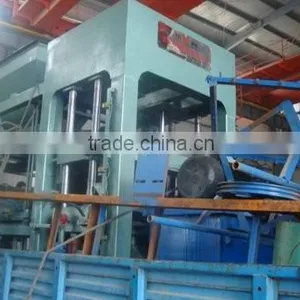

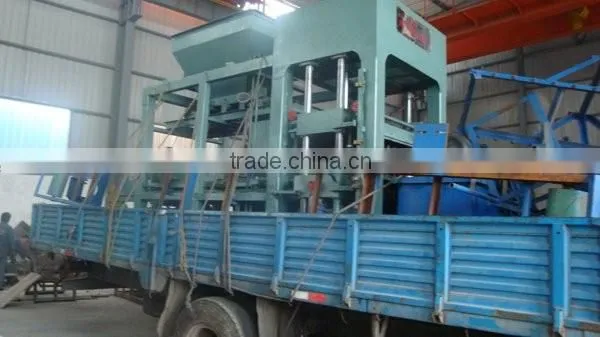

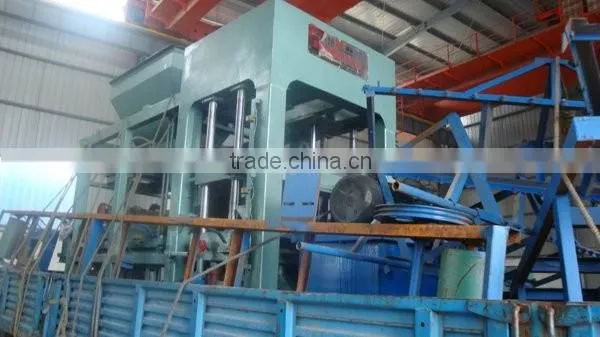

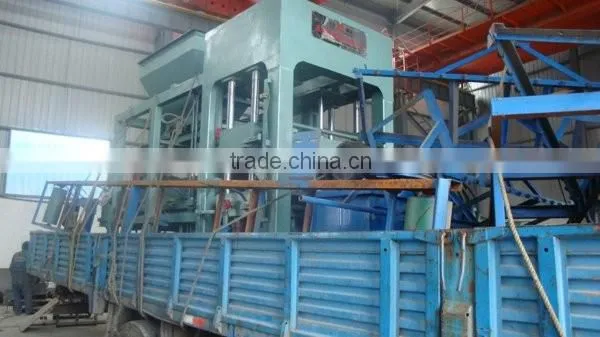

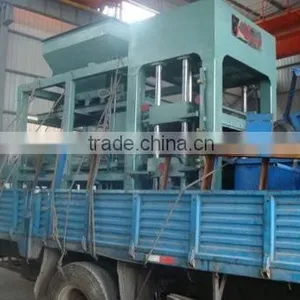

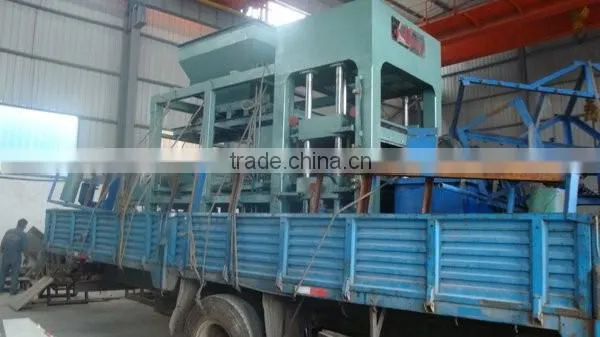

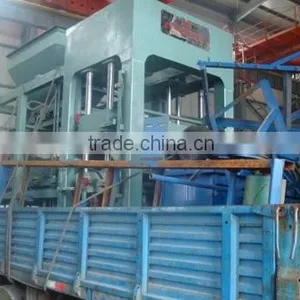

Huahong Leading Technology Brick Making Machine for Hot Sale
US$ 1 - 9,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Cement
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao shanghai tianjin guangzhou dalian port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Spiral Sand Washer Machinery Hot Sale in AfricaUS$ 1 - 9,999MOQ: 1 Set -
Cement Brick Making Machine With High QualityUS$ 1 - 99,999MOQ: 1 Set
-
Professional Manufacturer Brick Molding MachineUS$ 1 - 99,999MOQ: 1 Set
-
New Designed Red Clay Brick Molding MachineBrick Molding Machine Produced in ZhengzhouUS$ 1 - 99,999MOQ: 1 Set
-
New Type High Pressure Constuction Cement Brick Molding MachineUS$ 1 - 99,999MOQ: 1 Set
Condition
New
Type
Hollow Block Making Machine
Brick Raw Material
Cement
Processing
Other
Method
Hydraulic Pressure
Automatic
Other
Place of Origin
Henan, China
Brand Name
UAHONG
Voltage
380v
Power
36.8kw
Dimension(L*W*H)
6600x1990x3000
Certification
CE&ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
brief introduction
As high-performance vacuum extrusion equipment, it is largely used in extrusion forming of various hollow bricks made from coal gangue, shale, coal dust and other industrial slag. It is permitted to be produced with German KWS technology according to German standards and is authorized to use German trademark of GFK. It is the advanced vacuum extrusion equipment in the world as adopting hardened-face gears which are grinded totally in reducers.
Specifications
1.Semi-automatic
2.Multi-function
3.Small investment,high output
4.Hydrualic, high pressure
5.CE,ISO9001, good quality
Product advantages
1) It's manpower saving for automatic material feeding, automatic pallet conveyance, automatic leading-out and hydraulic molding.
2) The hydraulic elements are from Taiwan ASHUN. Hydraulic press and vibration work together to ensure high strength and high density of the bricks.
3) The machine frame is welded by special thick steel rectangle welding techniques, thus it is strong, durable and can resist vibration. We use the steel produced by Shougang Group, The service life of main machine is more than ten years.
4) It uses arms to connect the lower mould to make it work steadily and synchronously. The forced demolding synchronous structure gives the bricks perfect shape and increase the rate of finished products.
5) There is electric motor in brick conveyor machine, it convey the pallets when the bricks come out, it prevent collisions between pallets and avoid the break of bricks
main thchnical parameters
Parameter name |
Parameter values |
|
Overall size(mm) |
6600×1990×3000(L×W×H)(mm) |
|
Rated hydraulic pressure(mpa) |
21Mpa |
|
The main vibration form |
Table moulded combined vibration |
|
Vibration frequency (hz) |
50~70Hz |
|
Acceleration of vibration(g) |
10-15g |
|
Adapt to high brick (mm) |
50-200mm |
|
Carrier size (mm) |
wooden
|
830×660×(40±1)(mm) |
|
made of iron
|
830×660×(8-10±1)(mm) |
|
|
Molding cycle
|
15 second |
|
Output (per hour) |
Standard block (240x115x53mm) |
43200-57600 block / 8 hours
|
Feeding device capacity (m3) |
Bin's effective volume 0.45 |
|
Charging car's effective volume 0.15 |
||
Rated Power (kw) |
36.8kw |
|
Weight (t) |
12000kg |
|
