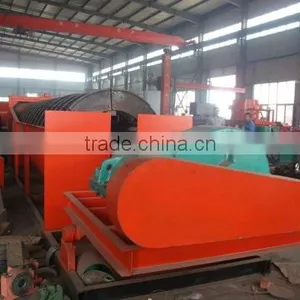

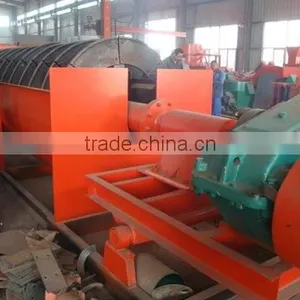

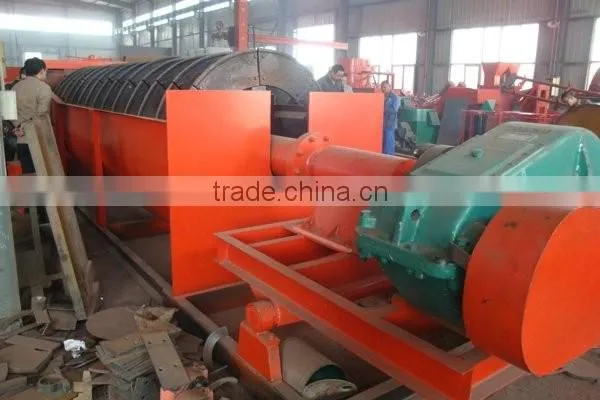

Help CenterSpiral Sand Washer Machinery Hot Sale in Africa
Related Products
-
Cement Brick Making Machine With High QualityUS$ 1 - 99,999MOQ: 1 Set -
Professional Manufacturer Brick Molding MachineUS$ 1 - 99,999MOQ: 1 Set
-
New Designed Red Clay Brick Molding MachineBrick Molding Machine Produced in ZhengzhouUS$ 1 - 99,999MOQ: 1 Set
-
New Type High Pressure Constuction Cement Brick Molding MachineUS$ 1 - 99,999MOQ: 1 Set
-
QT3-15 Manual Brick Molding MachineUS$ 1 - 99,999MOQ: 1 Set
introduction

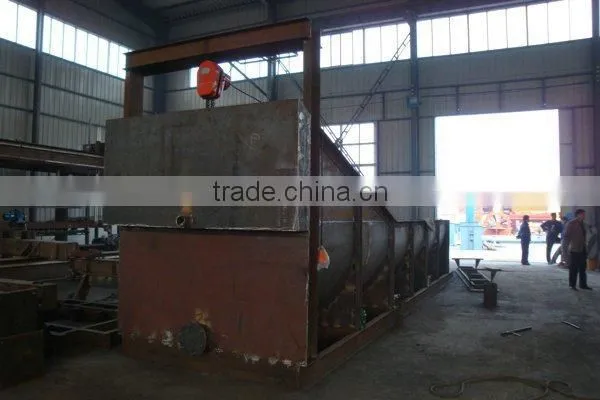

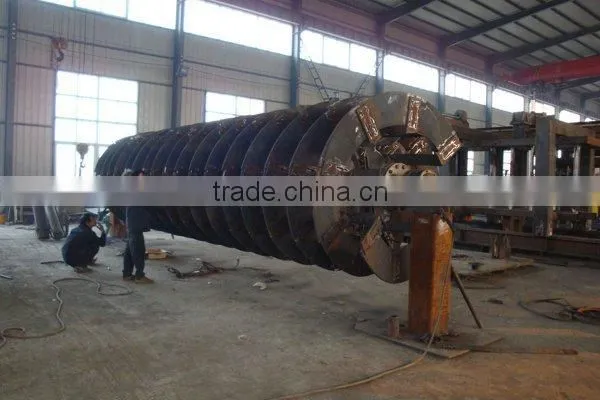

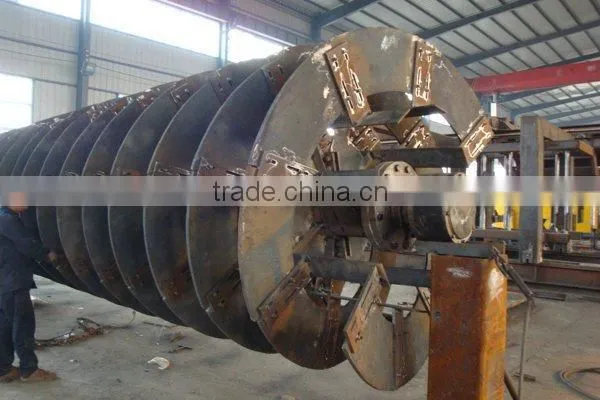

Sand washer is suitable for washing, classifying and dewatering of sand used in construction, quarry, hydropower station, concrete dam project, pole factory, as well as "soul-rending nature sand" for casting use,quartz sand for glassworks, and pressure sand for oil well backfill. With inclination angle of 180 , a setting pond is formed and surrounede by three-side plates at the bottom of water channel.The spiral head submerges into the setting pond,the spiral rotates continuously driven by motor and reducer, and clean water is fed into setting pond through the bottom perforated plate.
Specifications
Spiral sand washer
1.High degree cleaning-up
2.Reasonable structure
3.Large capacity
4.Low power consumption
advantages
This series washer with features of high cleaning ratio, reasonable structure, high capacity, lower power consumption and small quantity sand lost during washing.Especially transmission part isolates from waterand sand, so it reduces the breakdown compared with the traditional sand washer. This product is the best sand washer in China nowntroduction
main thchnical parameters
Models |
XS0540 |
XS0745 |
XS1050 |
XS1070 |
XS1254 |
XS1554 |
XS2060 |
Diameter of screw (mm) |
500 |
750 |
1000 |
1000 |
1200 |
1500 |
2000 |
Length of tub (mm) |
4000 |
4500 |
5000 |
7000 |
5400 |
5400 |
6000 |
Capacity (t/h) |
3-10 |
5-20 |
10-30 |
15-40 |
30-50 |
50-80 |
80-120 |
Speed of screw (r/min) |
18 |
18 |
18 |
18 |
16 |
16 |
14 |
Electric Motor Power(kw) |
5.5 |
7.5 |
11 |
15 |
15 |
22 |
30 |
Dimension (mm)(L×B×H) |
6200X670 X1300 |
6200X800 X1500
|
7300X1250 X2200 |
8700x1250 x2200mm |
7300X1440 X2400 |
7300X1850 X2800 |
8200X2450 X3200 |
