Specifications
High efficiency, large rotary torqueSimple structure and easy to move
Easy to operating
Features:
1.High drilling efficiency, power provided by energy saving motor
2.High efficiency, large rotary torque
3.Simple structure and easy to move
4.Adopt consummate design, long service life
5.Easy to operating
Introductions:
KQD100 rock drill rig is a high adaptability pneumatic DTH drill rig, with the characteristic of simple structure,
easy operation and energy saving. It can also drill vertical and horizontal blast holes in the fields of mines,
national defence, water conservation, road building and stonework. It has low center of gravity and its
detachability is good.
Specification of KQD100 Rock Drill Rig
Dia of The Hole | 80-100mm |
Depth of The Hole | ≥20m |
Rotation Speed | 0-62rmp |
Working Pressure | 0.5-0.7Mpa |
Specification of Drill Rod | 60*1000mm |
Air Consumption | ≥6m3/min |
Lifting Power | 9600N |
Weight | 500KG |
Motor Power | 4KW |
Matched Portable Diesel Piston Air Compressor:
Model | CVFY-13/7 |
Capacity (m³/min) | 13 |
Working Pressure (Mpa) | 7 |
Weight (kg) | 2200 |
Dimension (mm) | 2800*1500*1850 |
Specifications of Other DTH Drill Rigs:
Model | Hole Diameter | Hole Depth | Working Pressure | Air Consumption | Remark |
(mm) | (m) | (MPa) | (m3/min) | ||
KQD 70 | 60--80 | ≥15 | 0.5—0.7 | ≥3.5 | 3kw |
KQY90 | 80--100 | ≥20 | 0.5—0.7 | ≥6 | 4kw |
KQD 100 | 80--100 | ≥20 | 0.5—0.7 | ≥6 | 4kw |
KQD 120 | 80-100 | ≥20 | 0.5—0.7 | ≥6 | 5.5kw |
KQD145B | 90-130 | ≥50 | 0.7-1.4 | ≥12 | 7.5kw |
KQD150B | 90-130 | ≥50 | 0.7-1.4 | ≥12 | 7.5kw |
KQD165 | 90-150 | ≥50 | 0.7-1.4 | ≥15 | 11kw |

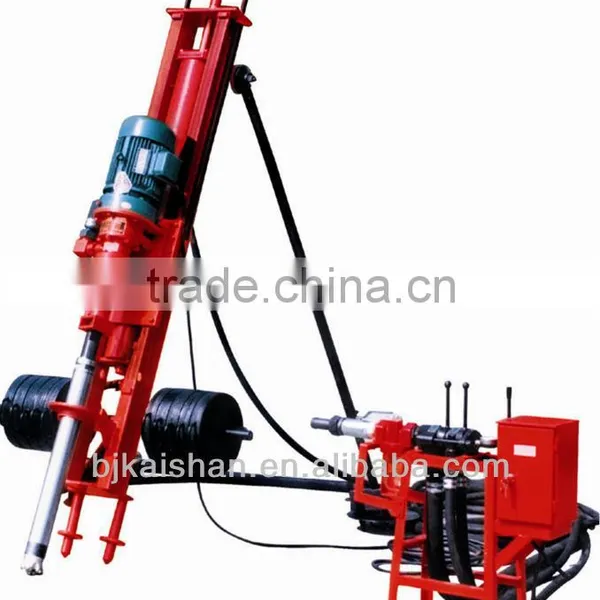

KQD100 DTH Drill Rig
CVFY-13/7 Air Compressor
