Specifications
Shift convenience, safety and environmental protection;low noise, high efficiency.
Features:
A.shift convenience, safety and environmental protection;
B. low noise, high efficiency.
Introductions:

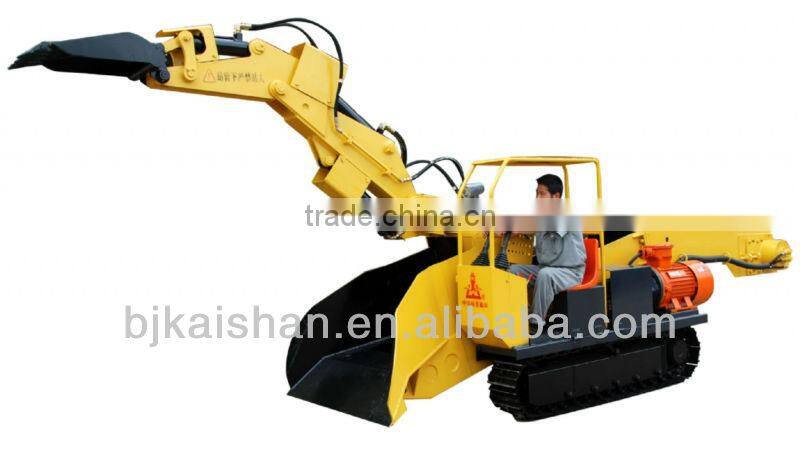

KB8L Crawler backhoe loader is a innovative product selfdesigned by KAISHAN GROUP, which concentrates collected and transported in a
body, compact, safe and reliable high efficiency in slagging and loading. It has good versatility, both for roadway construction in trackless
slagging and also used for loading crushed rock slags in outdoor operation; It is widely used in mining, road, rail, hydroelectric and
infrastructure construction. The loader uses the electric motor and diesel engine which driven hydraulic linkage system with characteristics
of shift convenience, safety and environmental protection, low noise, high efficiency. It is ideal of slagging and loading equipment for mines
and small tunnels.
Specification:
KB8L Crawler Backhole Loader | |
Min Ground Clearance |
200 mm |
Working Pressure |
14Mpa |
Diesel Engine |
18.4Kw/2200 RPM |
Main Motor |
11Kw/1450 RPM |
Conveyor Motor |
5.5Kw/50RPM |
Pick Height |
2000 mm |
Excavate Depth |
600 mm |
Moving Speed |
0~2 km/h |
Min.Turning Radius |
No More Than 3 m |
Capacity of Hydraulic Oil Tank |
100 L |
Rated Power |
11 kw |
Power of Motorized Pulley |
5.5 kw |
Production Efficiency |
80 m³/h |
Dimension |
5900*1800*2000 mm |
Weight |
4800 kg |
