Specifications
Shift convenience, safety and environmental protection;low noise, high efficiency.
Features:
A.shift convenience, safety and environmental protection;
B. low noise, high efficiency.
Introductions:

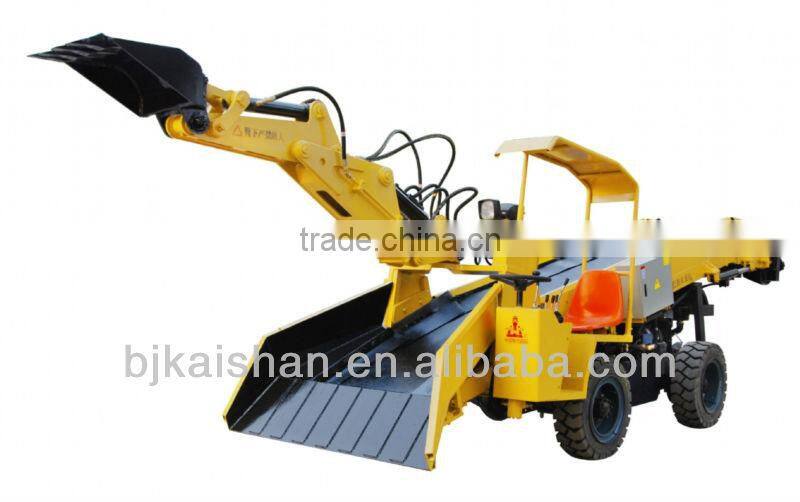

KB8T Wheel backhoe loader is a innovative product selfdesigned by KAISHAN GROUP, It is widely used in mining, road, rail, hydroelectric and
infrastructure construction. The loader uses the electric motor and diesel engine which driven hydraulic linkage system with characteristics of
shift convenience, safety and environmental protection, low noise, high efficiency. It is ideal of slagging and loading equipment for mines and
small tunnels.
Specification:
KB8T Wheel Backhole Loader | |
Length |
6600 mm |
Width |
1830 mm |
Height |
1900 mm |
Wheel Base |
1650 mm |
Max Grain Size |
650*350 mm |
Min Ground Clearance |
230 mm |
Pivot Angle of Digging Arm |
Left: 21°; Right:21° |
Moving Speed |
0~2 km/h |
Conveyor Belt |
No More Than 21° |
Rated Power |
11 kw |
Power of Motorized Pulley |
5.5 kw |
Production Efficiency |
40~80 m³/h |
Length of Conveyor |
12.1 m |
Weight |
4200 kg |
