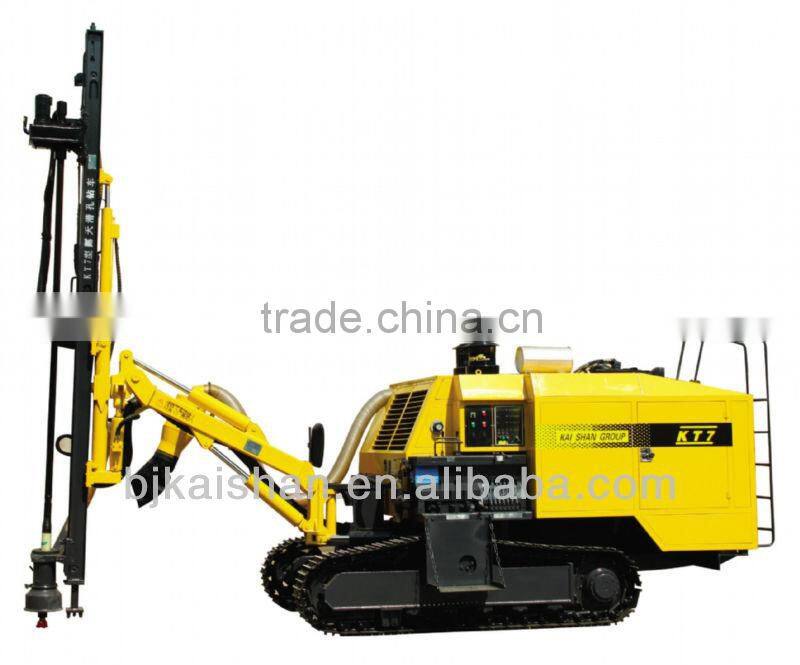

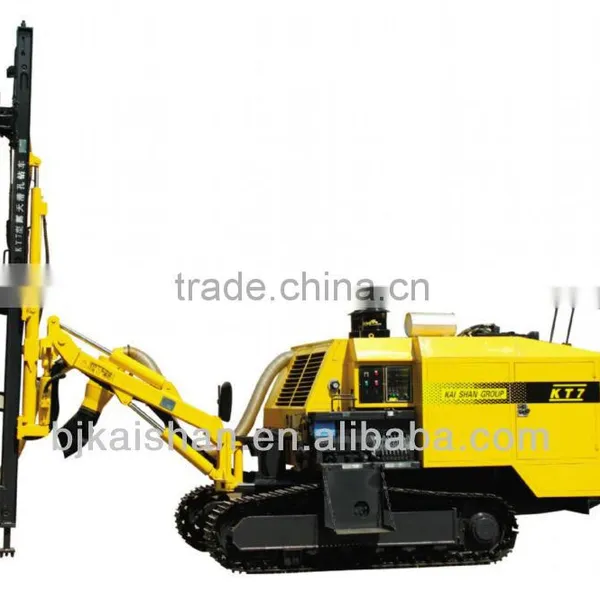

KT7 Integral High Pressure Open Air Drill Rig

Name: KT7 Integral High Pressure Open Air Drill Rig
Brand: KAISHAN
SKU: 101495403
Availability: InStock

US$ 100,000 - 200,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Kaishan General Machinery Co., Ltd. (Beijing)

Payment & Shipping

Payment Methods:

Port of Shipment:

MAIN PORT CHINA

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Power Type Diesel

Place of Origin China

Brand Name KAISHAN

Model Number KT7

Usage Ore

Voltage 380 v

Power(W) 180 kw

Dimension(L*W*H) 8000*2260*2800 mm

Weight 9500 KG

Certification ISO, CCC

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Compact structure, good integrity and easy to move.

Introductions:

KT7 integral high pressure open air drill rig is an advanced drilling equipment, which integrated down the hole drilling system and screw air

compressor systems, and a sixcylinder diesel engine provided power for the two systems. Compact structure, good integrity and easy to

move. The drill rig equipped with screw air compressor head with core knowledge of the high pressure and single stage compression, and

applied of the world's leading Towne Yshaped line, large flowing (13m ³ / min), high pressure (1.7MPa), which provide strong impetus to high

pressure pneumatic impactor that enable drilling speed faster 20% -50% than the medium pressure drill rigs.

KT7-type integral high pressure open air drill rig is mainly used for rock drilling engineering and open mines.

Specification:

KT7 Integral Open Air Drill Rig
Rock Rigidity	f=6-20
Dia. of Hole	90-105 mm
Drilling Depth	30~40 m
Working Pressure	17 bar
Air Consumption	13 m3/min
Rotation Speed	0-120 rpm
Torque	1900 N•M
Lift Power	25 kN
Ground Clearance	380 mm
Rated Power	180 kw
Diesel Engine	YC6A
Traveling Speed	2.5 Km/h
Gradeability	30°
Pivot Angle of Drill Boom	Left: 60°, Right: 39°
Lift Angle of Drill Boom	Down:20°; Upward:42°
Pivot Angle of Carriage	Left: 35°, Right: 38°
Lift Angle of Carriage	-28°~ +42°
Pitch Angle of Carriage	129°
Leveling Angle of Carriage	Right: 4~89°
Leveling Angle of Frame	Down: 10°; Upward: 9°
Dimension	800022602800 mm
Weight	9500 KG
Impactor	KQG35A
Propel Length	3000 mm
Compensation Length	900 mm
Drill Pipe	Φ64×3000 mm
Dusting System	Hydraulic Cyclone Laminar
