Kaishan LG-3.6-8G Plant New Screw Air Compressor

Kaishan LG-3.6-8G Plant New Screw Air Compressor thumbnail-1
Kaishan LG-3.6-8G Plant New Screw Air Compressor photo-1
US$ 15,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw
Configuration:
Stationary
Contact Supplier Request Quote Chat Now
Kaishan General Machinery Co., Ltd. (Beijing)
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA MAIN PORTS
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Screw
Configuration Stationary
Power Source AC Power
Lubrication Style Lubricated
Mute Yes
Place of Origin China
Brand Name KAISHAN
Model Number LG-3.6-8 G
Voltage 380 V or 420 V
Dimension(L*W*H) 1420*850*1110mm
Weight 650KG
Certification GC,ISO,MA
Warranty Three Years
After-sales Service Provided Overseas service center available

Specifications

1.Configuration: Stationary
2. Motor: 22Kw / 30 HP
3. Max Bar:8 bar/116psi
4. FAD:3.6m3/min127 cfm





                     Specification of LG-3.6/8 Plant New Screw Air Compressor



Structure

Parameters

Capacity

3.6 m3/h

Working Pressure

8 bar

Rated Power

22 KW

Airend

SKK

Drive Style

Coupling

Cooling System

Wind-Cooled

Suction

Temperature

≤40 °C

Pressure

Normal Pressure

Relative Humidity

≤100%

Outlet Temperature

Ambient Air Temperature +10 °C

Capacity

100 m3/min

Safety Valve Set Pressure

14.3bar

Lubricating Oil Brand

KAISHAN

Outlet Dimension

G1

Sewage Outfall Dimension

G1/2

Dimension

Length

1420 mm

Width

850 mm

Hight

1110 mm

Weight

650 kg

Motor

Model

Y2 180

Speed

2951 rpm

Rated Power

22 kw

Service Factor

1.15

Safety Grade

IP54

Insulation Grade

F

Starting Method

Depressuring

Voltage

380 V or 420V

Frequency

50 Hz or 60 Hz

Rated Current

42.2 A

Motor Weight

169 kg





The LG series compressors represent a giant leap in design and performance with each component designed

 for reliability and ase of maintenance. The compressor is manufactured in compliance with applicable internati-nal standards GC,ISO and others and designed as per the international quality standards. These new generation

compressor significantly reduce operating costs and provide cost savings with fast return on investment.







 Kaishan LG-3.6-8G Plant New Screw Air Compressor

Dr.Tang



Former president of Quincy Compressor



Expert on screw air compressor, with nearly 20 years of experience; having presided over the development

of natural gas coolant, and air compressor products in several world famous compressor companies; holder

of several US invention patents.



 Kaishan LG-3.6-8G Plant New Screw Air Compressor

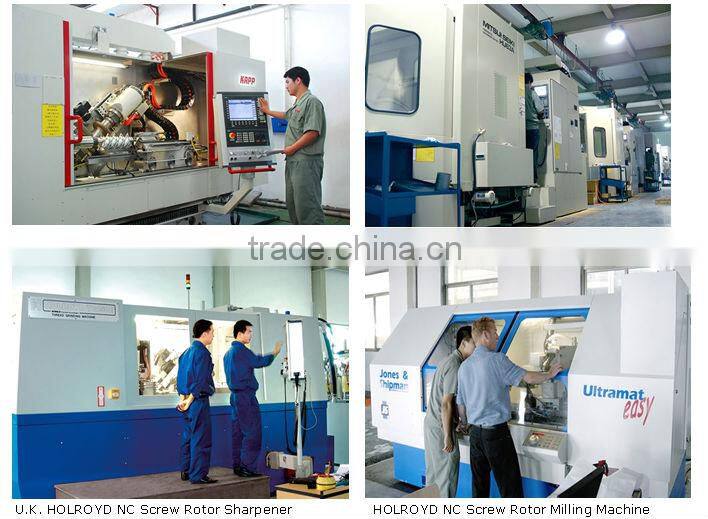

   The Manufacturing Equipment





Kaishan LG-3.6-8G Plant New Screw Air Compressor



    Clients Visited the Plant





Kaishan LG-3.6-8G Plant New Screw Air Compressor

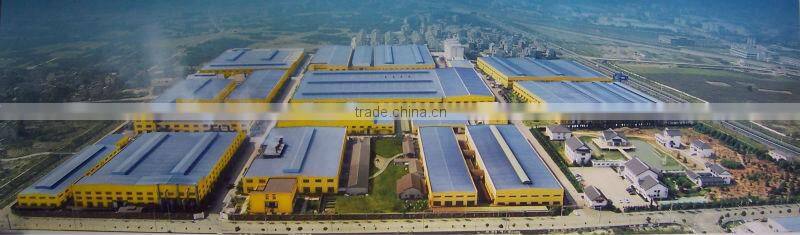

    Our Factory

Kaishan LG-3.6-8G Plant New Screw Air Compressor





 Kaishan LG-3.6-8G Plant New Screw Air CompressorKaishan LG-3.6-8G Plant New Screw Air CompressorKaishan LG-3.6-8G Plant New Screw Air CompressorKaishan LG-3.6-8G Plant New Screw Air CompressorKaishan LG-3.6-8G Plant New Screw Air Compressor
