Specifications
Shift convenience, safety and environmental protection;low noise, high efficiency.Features:
A.shift convenience, safety and environmental protection;
B. low noise, high efficiency.
Introductions:

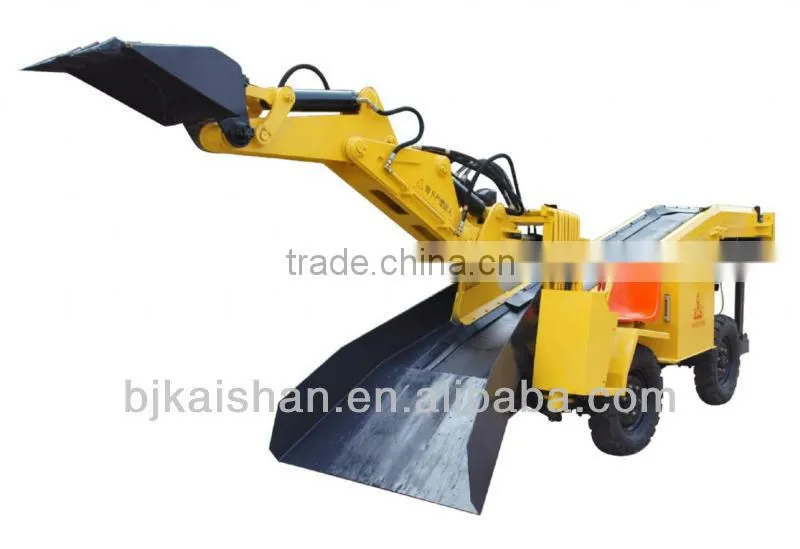

KBT60 Wheel Backhoe Loader concentrates collected and transported in a body, compact, safe and reliable. Mainly used in collecting and
loading construction in the narrow working space, the small production of metal, nonmetal, diversion tunnel, tunneling blasting holes and
other nonblast pulverizer stone. It is composed of the hydraulic robotic and electric transport mechanism, which has capabilities of
acquisition and transport. The machine uses the electric motor and diesel engine which driven hydraulic linkage system with characteristics
of shift convenience, safety and environmental protection, low noise, high efficiency. It is ideal of slagging and loading equipment for mines
and small tunnels.
Specification:
KBT60 Wheel Backhole Loader | |
Length |
5800 mm |
Width |
1650 mm |
Height |
1700 mm |
Wheel Base |
1700 mm |
Max Grain Size |
650*350 mm |
Min Ground Clearance |
190 mm |
Pivot Angle of Digging Arm |
Left: 21°; Right:21° |
Moving Speed |
0~4 km/h |
Conveyor Belt |
No More Than 21° |
Rated Power |
18.5 kw |
Power of Motorized Pulley |
4 kw |
Production Efficiency |
30~60 m³/h |
Length of Conveyor |
10.7 m |
Weight |
3100 kg |
