Brick Paver Machine DS4-15 Concrete Block Moulds and Brick Making Machine for Sale

Brick Paver Machine DS4-15 Concrete Block Moulds and Brick Making Machine for Sale photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Hollow Block Making Machine
Brick Raw Material Concrete
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Place of Origin Henan, China
Brand Name DASION
Model Number DS4-15
Certification ISO9001:2008&CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

brick paver machine:
1.Super actuating shock force design
2.Multi-purpose design

brick paver machine DS4-15 concrete block moulds and brick making machine for sale

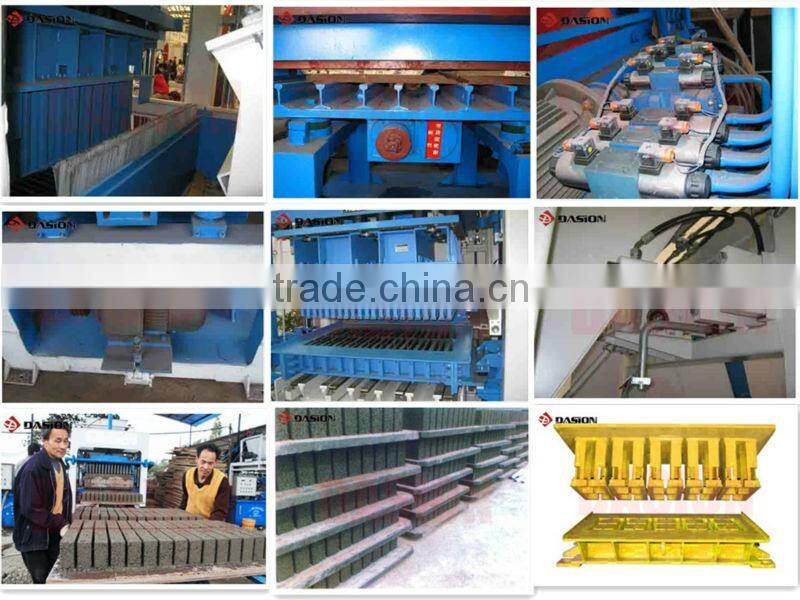

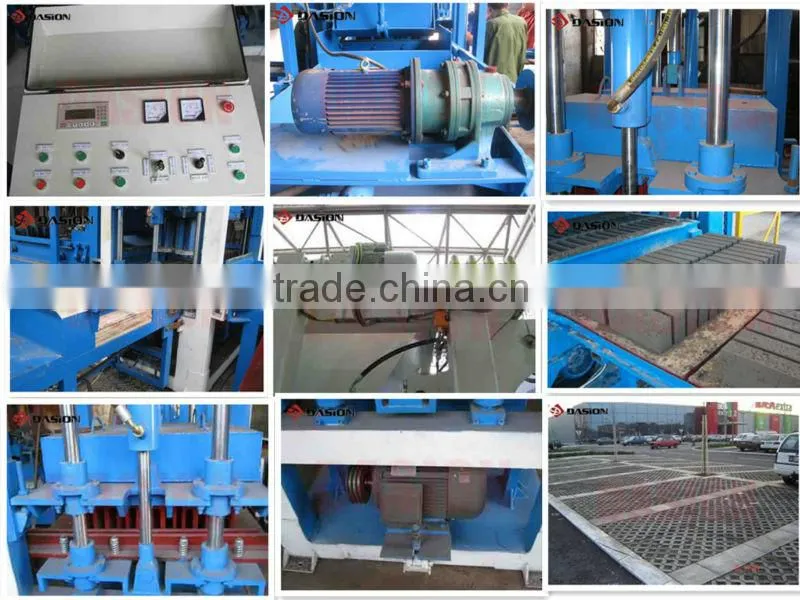

DS4-15 Brick Making Machinery



1. Unique structure design to insure the material discharging swimmingly and fabric equably

2. Super actuating shock force design to insure the final bricks becomes high-intensity and high-density in a short time

3. Multi-purpose design to produce different shape and specification of bricks.

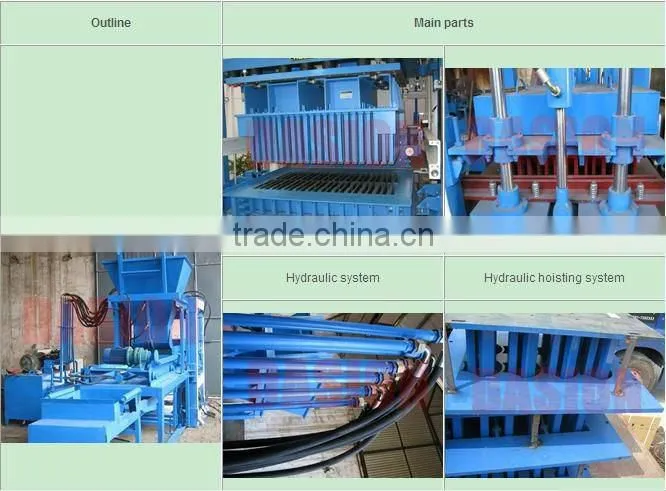

DS4-15 Brick Making Machine (Hydraulic):



1. Unique structure design. Adopt special material discharging and break device, there are multi-row mixing forks inside of the material tank. The mixing forks works automatically once the material tank is moved above the mould box, then the material will be discharged forcibly, to insure the material discharging swimmingly and fabric equably. This tech will make sure the final products (bricks) high-intensity and equable weight.

2. Super actuating shock force design. Control the hydraulic system by computer, such as hydraulic flow and pressure, to achieve vibrating, frequency conversion, stop at same time, to insure the final products (bricks) becomes high-intensity and high- density in a short time.

3. Multi-purpose design. Change different moulds, then it can produce different shape and spec of bricks.



DS4-15 Automatic hydraulic brick making machine main technical parameters:





Product specifications

The number of each plate

Molding cycle

Pieces / 8 hours

Brick

390×190×190

4

15

7680

Brick

245×115×90

12

15

23040

Standard brick

240×115×90

24

15

46080

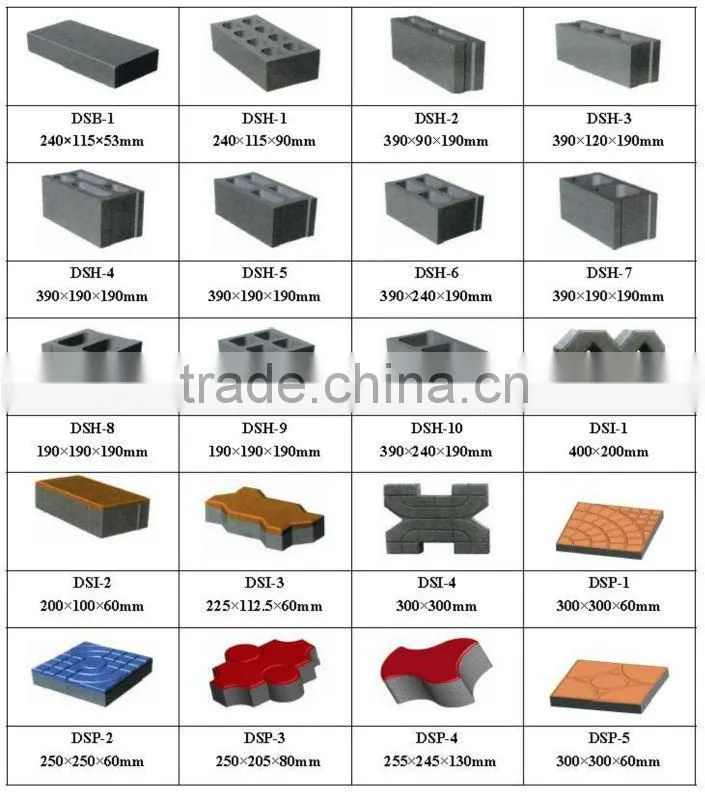

Brick shaped mold can be produced according to user needs.





(Parameter is changed without prior notice.)
