Specifications
cement block making machines price1.PLC control and intelligent man-machine interface dialogue system
2.Mandatory feeder

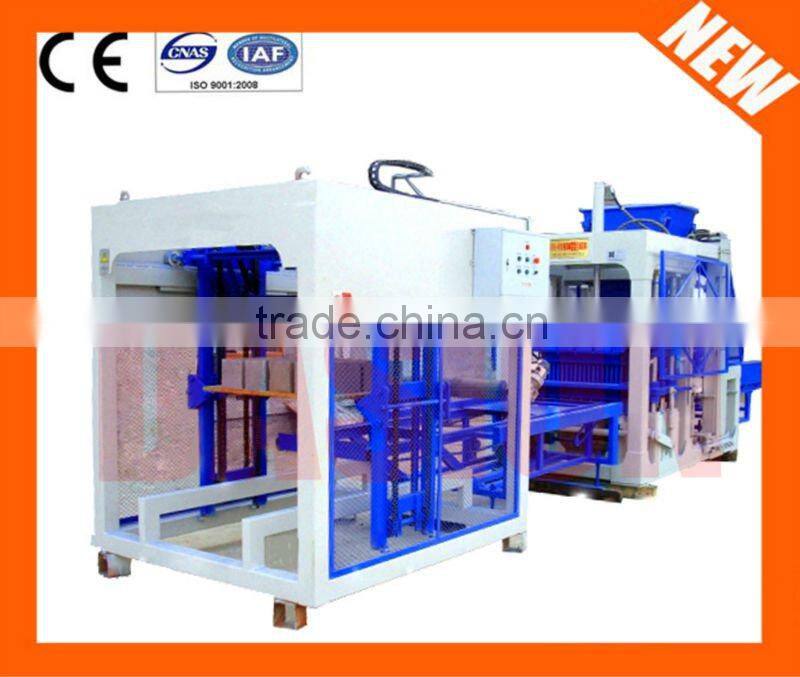

DS8-15 Block Making Machinery
1. Compatible with fixed standard brick, hollow block, brick and other concrete products
2. Mandatory feeder to insure uniformity of material and consistent product strength
3. Adopt full program adopt PLC control and intelligent man-machine interface dialogue system
4. Reasonable distribution of vibration to increase the effect of vibrating speed.
5. Increase the effective work platform: the larger platform greatly raised the production efficiency.
6. Reasonable distribution of vibration
Main technical parameters of DS8-15 block making machinery:
Parameter Name |
Parameter values |
|
The largest machine dimensions |
7200×2100×2825(L×W×H)(mm) |
|
Rated pressure of hydraulic system |
21Mpa |
|
Main vibration form |
All vibration molded desk |
|
Vibration frequency |
50~70Hz |
|
Vibration acceleration |
10-15g |
|
To adapt to the high brick |
50-200mm |
|
Pallet size |
Wooden |
920×850×40(mm) |
Molding cycle |
15s |
|
Machine power |
36.8kw |
|
Machine weight |
11.8t |
|

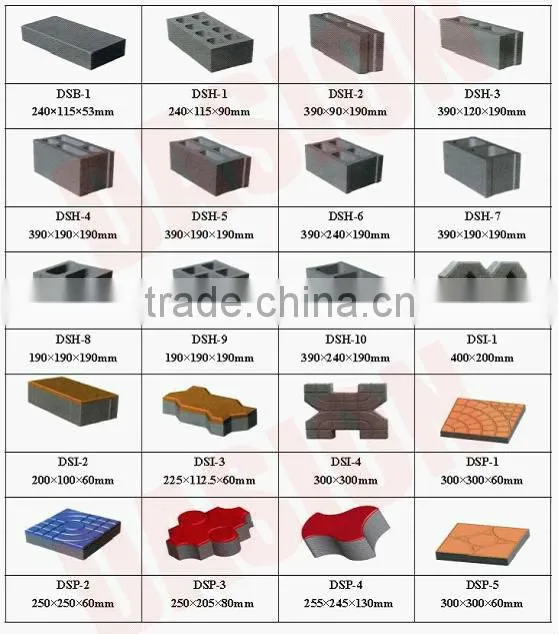

Main product specifications and production of each plate:
Model |
Block Specifications (Mm) |
Forming a number of |
Molding cycle |
Middle class |
DS8-15 |
390×190×190 (block) |
8 |
15 |
15360 |
240×115×90 (brick) |
21 |
15 |
40320 |
|
240×115×53 (standard brick) |
42 |
15 |
80640 |
|
This series of 150-650 tons of products with different specifications. Brick shaped mold can be produced according to user needs. | ||||
Production conditions: | ||
Production sites |
Venues |
10-15acres |
Operate camp |
60 |
|
Raw space |
300 |
|
Office space |
30 |
|
Other conditions |
Staff |
10-15people |
Distribution |
40kw |
|
Water |
10T/day |
|
(Parameter is changed without prior notice.)
