high efficiency low cost DS10-15 full-automatic hydraulic concrete block making machine price widely used in construction

Specifications

concrete block making machine price
1.Can make many kinds of bricks
2.Full automatic with PLC
3.1800-2400 block/h

 high efficiency DS10-15 full-automatic hydraulic concrete block making machine price widely used





DS10-15 full-automatic hydraulic fly ash Block Making Machine:



1. Adopt Germany, Italy, Japan technology to manufacturing;

2. Compatible with the road blocks, road-side bricks and river bricks;

3. Adopt sub-storage device to overcome the liquefaction of concrete defects in advance;

4. The whole set of machine can be operated automatically.
5. Adopt four-oriented approach to insure the pressure head and mold box move exactly with good stability, and wide fixed mold plate for mold box, with the replacement of various models of multi-purpose tool of a machine to meet the various needs.

6. The host machine adopt hydraulic rotational molding and vibration compression molding. Molding cycle takes 15 - 25 seconds to leave the floor for forming health, and spend a lot of floor investment.

7. Forced feeding, the traditional feeding method is difficult to feed materials evenly to mold box, DS6-15 box-type cement brick making is machine equipped with a multi-fabric mixing fork, mold box to the top of mixing fork work on mandatory feed box.





Main technical parameters of DS10-15 full-automatic hydraulic fly ash block making machine:

Parameter Name	Parameter values
The largest machine dimensions	7200×2290×3100(L×W×H)(mm)
Rated pressure of hydraulic system	21Mpa
Main vibration form	All vibration molded desk
Vibration frequency	50~70Hz
Vibration acceleration	10-15g
To adapt to the high brick	50-200mm
Pallet size	Bamboo	1070×840×40(mm)
Molding cycle	15s
Machine power	36.8kw
Machine weight	14.8t







Main product specifications and production of each plate:



Model	Block Specifications (mm)	Forming number  (block)	Molding cycle  (Seconds)	Capacity (pcs)  (8 hours)
DS10-15	390×190×190 (brick)	10	15	19200
	240×115×90 (brick)	24	15	46080
	240×115×53 (standard brick)	48	15	92160
This series of 150-650 tons of products with different specifications. Brick shaped mold can be produced according to user needs.







Production conditions:
Production sites  (m2)	Venues	15-20acres
	Operate camp	60
	Raw space	300
	Office space	30
Other conditions	Staff	10-15people
	Distribution	40kw
	Water	10T/day

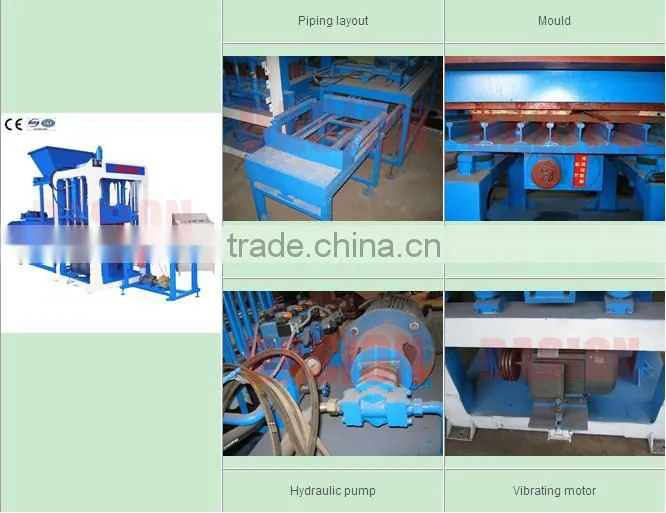

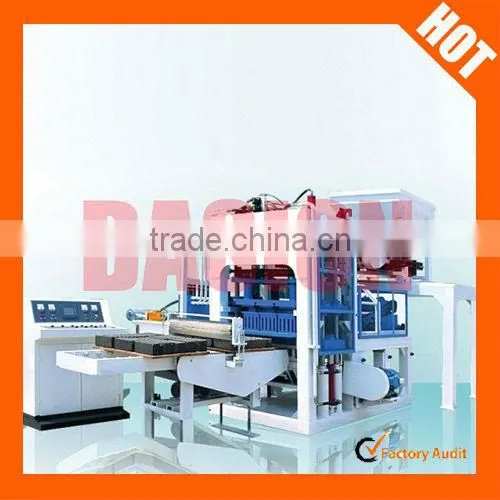

 Our full-automatic DS10-15 hydraulic fly ash block making machine picture:







The DS10-15 full-automatic hydraulic fly ash block making machine and the brick type:

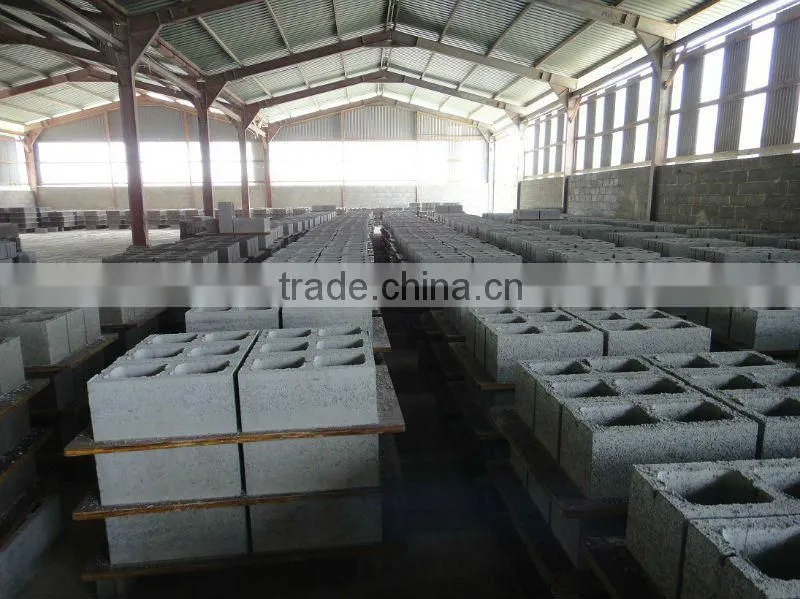

Fashioned bricks in the curing room:

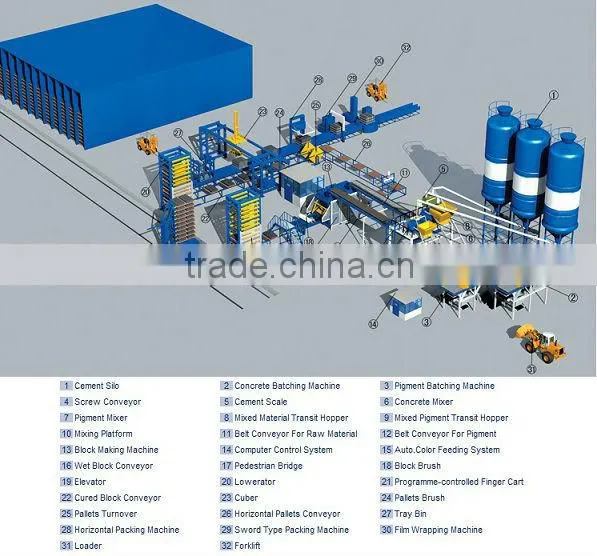

The DS10-15 full-automatic hydraulic fly ash block making machine operation schematic diagram:

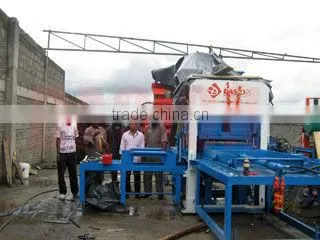

The customer visit our factory:

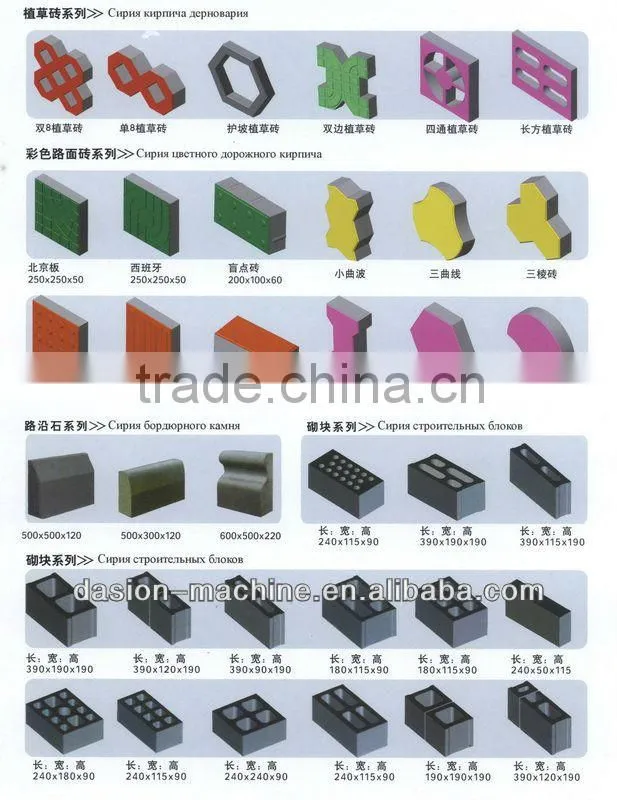

The different types of brick that our machine can produce:



 The assembly drawing picture:
